Yamaha Outboard Parts - THROTTLE BODY ASSY 1 - FL250DET (2021) | Flood Marine

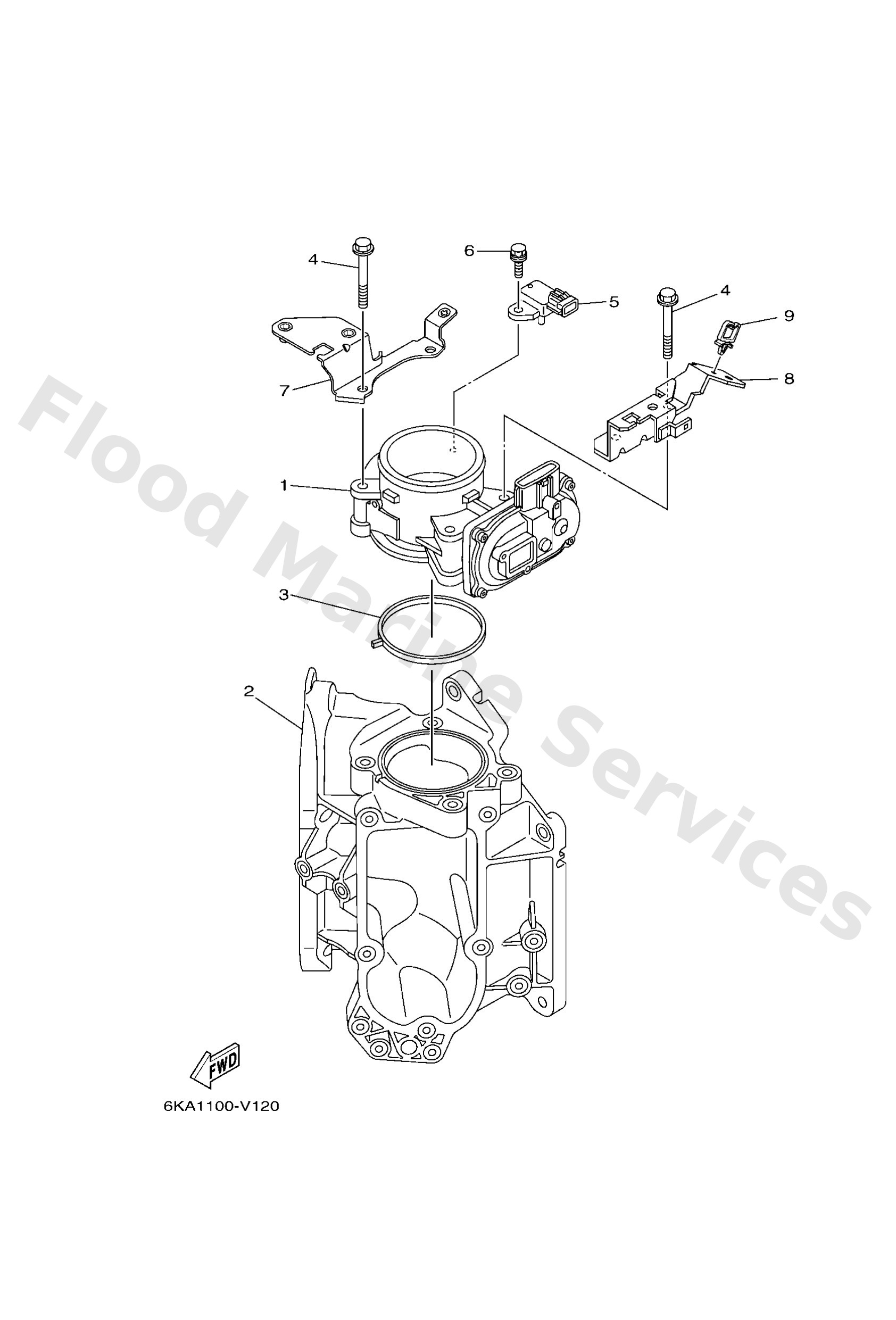

Diagram: THROTTLE BODY ASSY 1

Diagram

Parts List

Reference
Description
Price


1
6CB1375110
Body, throttle 1
Loading…

↗
2
6CB1371100
Mixing body
Loading…

↗
3
6CB1355600
Gasket, manifold
Loading…

↗
4
95D7508060
Bolt, flange deep recess
Loading…

↗
5
6P28238000
Sensor, pressure
Loading…

↗
6
97E7506620
Bolt, hexagon w/w deep recess
Loading…

↗
7
6KA1389800
Holder
Loading…

↗
8
6CB1389811
Holder
Loading…

↗
9
9046408004
Clamp
Loading…

↗
