FL200CET (2009)
THROTTLE BODY ASSY 2

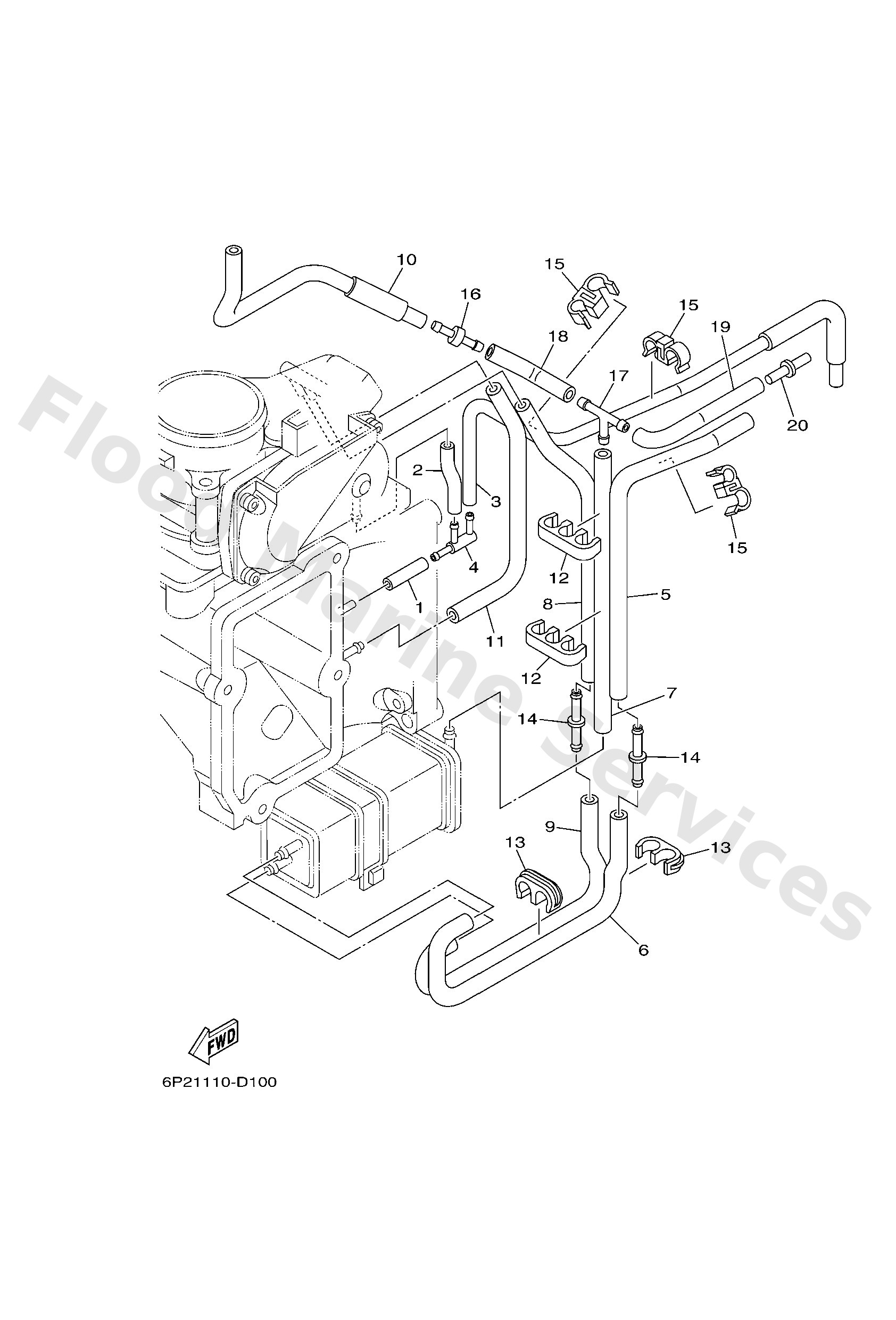

Diagram: THROTTLE BODY ASSY 2
Parts List
Reference
Description
Price
1
6P21434900
Pipe
Loading…
↗
2
6P21353300
Hose, vacuum sensing 4
Loading…
↗
3
6P21353200
Hose, vacuum sensing 3
Loading…
↗
4
6P21359500
Joint
Loading…
↗
5
6P21475A00
Pipe 1
Loading…
↗
6
6P21475E00
Pipe 2
Loading…
↗
7
6P21354500
Hose 1
Loading…
↗
8
6P21475F00
Pipe 3
Loading…
↗
9
6P21475G00
Pipe 4
Loading…
↗
10
6P21354600
Hose 2
Loading…
↗
11
6P22416A00
Hose
Loading…
↗
12
6P22413500
Clamp 1
Loading…
↗
13
6P22413600
Clamp 2
Loading…
↗
14
6P21375800
Pipe, joint
Loading…
↗
15
6P22413700
Clamp 3
Loading…
↗
16
6E52174400
Breezer
Loading…
↗
17
6882437800
Pipe, joint
Loading…
↗
18
6P21354700
Hose 3
Loading…
↗
19
6P21354800
Hose, Air 4
Loading…
↗
20
6P22437600
Pipe, joint 1
Loading…
↗
