Yamaha Outboard Parts - THROTTLE BODY ASSY 2 - FL225AET (2002) | Flood Marine

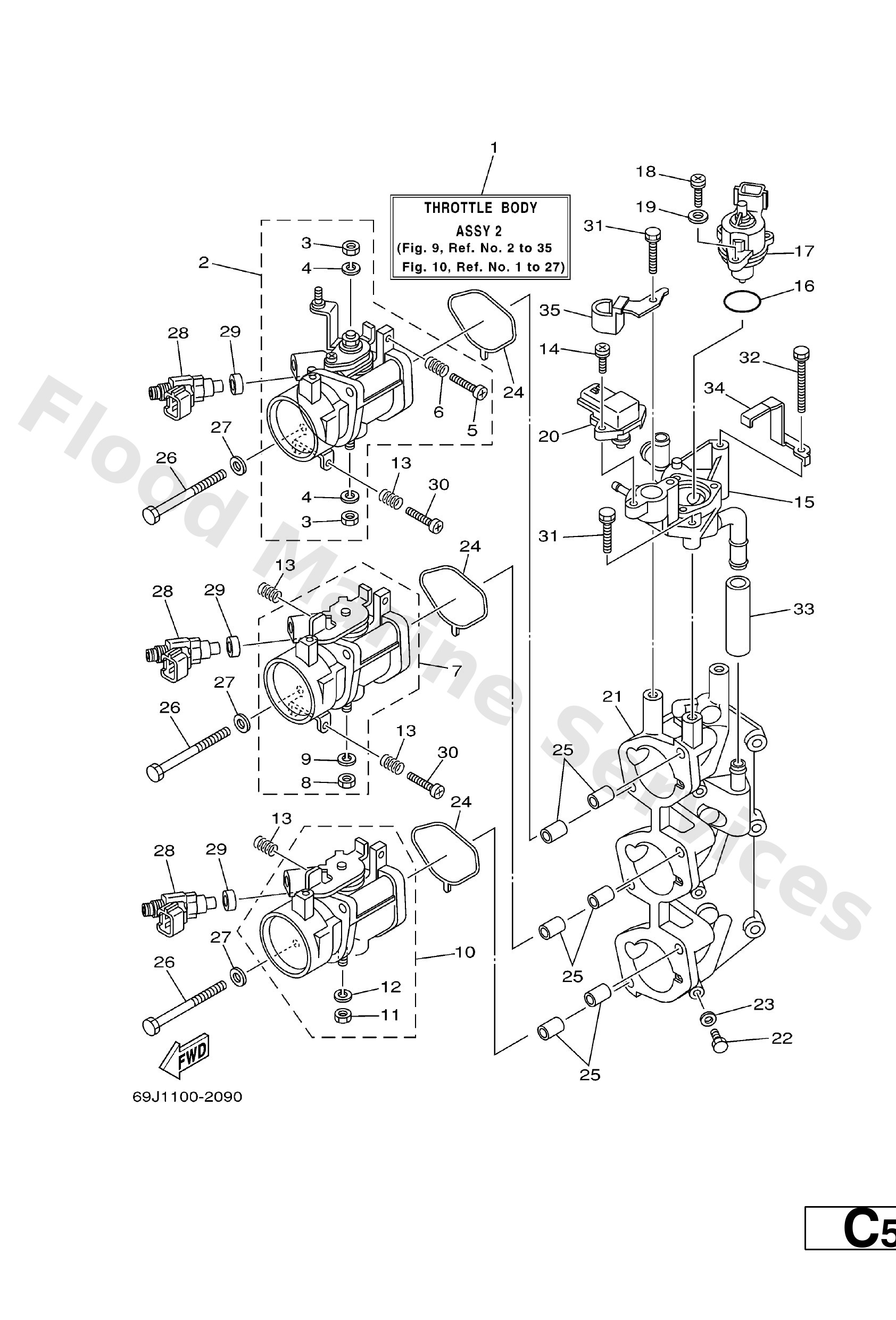

Diagram: THROTTLE BODY ASSY 2

Diagram

Parts List

Reference
Description
Price


1
69J1375A00
Throttle body assembly 2
Loading…

↗
2
69J1375200
Body, throttle 2
Loading…

↗
3
3CF1459400
Nut
Loading…

↗
4
9299008100
Ybs67-8 washer, spring
Loading…

↗
5
68V1432300
Screw, air adjusting
Loading…

↗
6
68V1433100
Spring, throttle valve
Loading…

↗
7
69J1375400
Body, Throttle 4
Loading…

↗
10
69J1375600
Body, Throttle 6
Loading…

↗
14
68V8114700
Screw 3
Loading…

↗
15
69J1496000
Body assembly
Loading…

↗
16
68V1347300
O-ring
Loading…

↗
17
68V1312A00
Valve, control
Loading…

↗
18
68V8114600
Screw 2
Loading…

↗
19
68V8116200
Washer, Plain
Loading…

↗
20
68V8238000
Sensor, pressure
Loading…

↗
21
69J1364200
Manifold 2
Loading…

↗
22
9709506010
Bolt
Loading…

↗
23
9043006014
Gasket 256113960000
Loading…

↗
24
69J1355700
Gasket
Loading…

↗
25
9953010114
Pin, dowel(3vd)
Loading…

↗
26
69J1449600
Bolt
Loading…

↗
27
68V1447500
Washer
Loading…

↗
28
69J1376100
Injector assembly
Loading…

↗
29
68V1376600
Rubber, injector
Loading…

↗
30
69J1432100
Screw, throttle
Loading…

↗
31
69J1357300
Bolt 1
Loading…

↗
32
69J1357400
Bolt 2
Loading…

↗
33
69J1354700
Hose 3
Loading…

↗
34
69J1415900
Clip
Loading…

↗
35
69J1425500
Plate
Loading…

↗
