Yamaha Outboard Parts - THROTTLE BODY ASSY 2 - FL300AET (2010) | Flood Marine

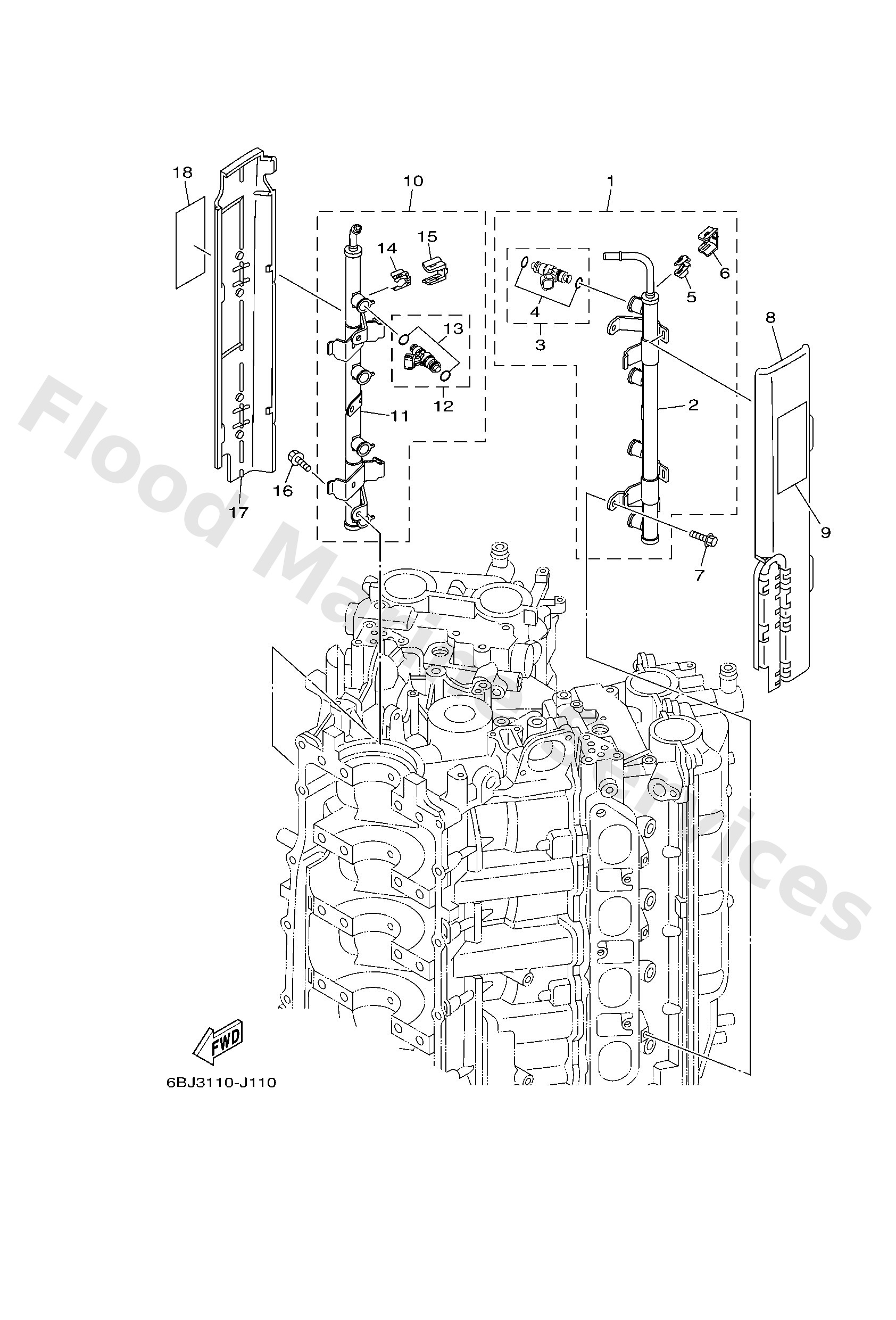

Diagram: THROTTLE BODY ASSY 2

Diagram

Parts List

Reference
Description
Price


1
6AW1316000
Delivery Pipe assembly 1
Loading…

↗
2
6AW1316100
Pipe, delivery 1
Loading…

↗
3
6AW1376100
Injector
Loading…

↗
4
6AW1410B00
Packing kit
Loading…

↗
5
6AW1357700
Clip
Loading…

↗
6
6AW1376700
Cap, injector
Loading…

↗
7
9587506016
Bolt, flange deep recess
Loading…

↗
8
6AW1356400
Cover, manifold
Loading…

↗
9
6AW1388900
Label
Loading…

↗
10
6AW1317000
Delivery Pipe assembly 2
Loading…

↗
11
6AW1317100
Pipe, Delivery 2
Loading…

↗
17
6AW1359400
Cover, manifold 2
Loading…

↗
18
6AW1388910
Label
Loading…

↗
