Yamaha Outboard Parts - THROTTLE BODY ASSY 3 - F200AET (2005) | Flood Marine

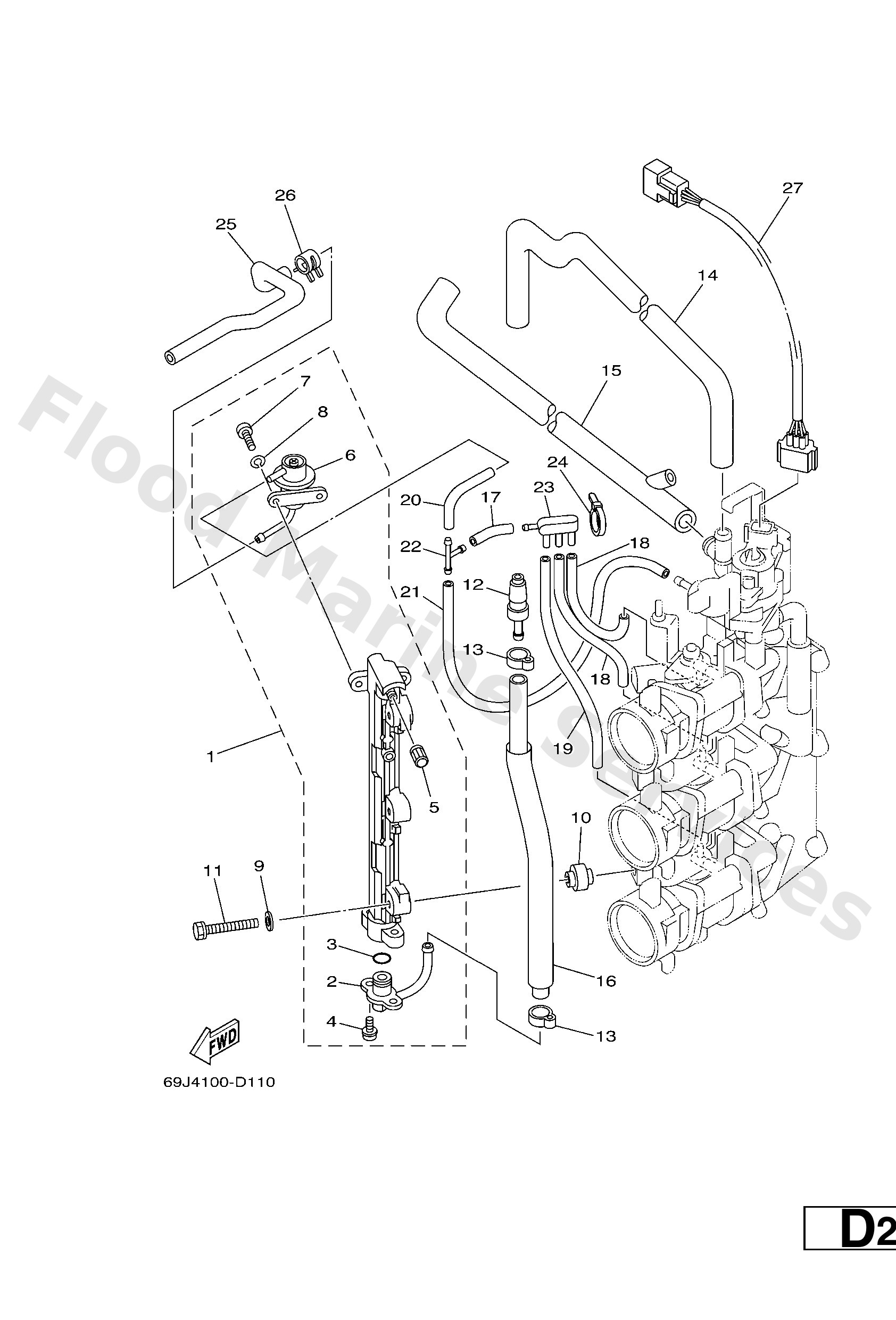

Diagram: THROTTLE BODY ASSY 3

Diagram

Parts List

Reference
Description
Price


1
69J1317000
Delivery pipe assembly 2
Loading…

↗
2
69J1343500
Nipple
Loading…

↗
3
68V1439700
O-ring
Loading…

↗
4
68V8114700
Screw 3
Loading…

↗
5
68V1422500
Cap
Loading…

↗
6
69J1390600
Regulator, pressure
Loading…

↗
7
68V1456500
Screw
Loading…

↗
8
68V1435600
Washer, spring
Loading…

↗
9
68V1447500
Washer
Loading…

↗
10
68V1426400
Collar
Loading…

↗
11
68V1442800
Bolt
Loading…

↗
12
68F2430000
Fuel pipe joint
Loading…

↗
13
68V2438700
Clip
Loading…

↗
14
69J1354600
Hose 2
Loading…

↗
15
60L2431700
-
Loading…

↗
16
69J1397400
Pipe, fuel 4
Loading…

↗
17
68V1354400
Hose, Vacuum Sensing 2
Loading…

↗
18
5JW1434900
Pipe
Loading…

↗
19
69J1354200
Hose, vacuum sensing 1
Loading…

↗
20
69J1353200
Hose, vacuum sensing 3
Loading…

↗
21
69J1353300
Hose, vacuum sensing 4
Loading…

↗
22
68V2437700
Pipe, joint 1
Loading…

↗
23
69J1359500
Joint
Loading…

↗
24
69J1413900
Clip, Pipe
Loading…

↗
25
69J1397500
Pipe, fuel 5
Loading…

↗
26
68V2451900
Clip
Loading…

↗
27
69J8259L00
Wire harness assembly 1
Loading…

↗
