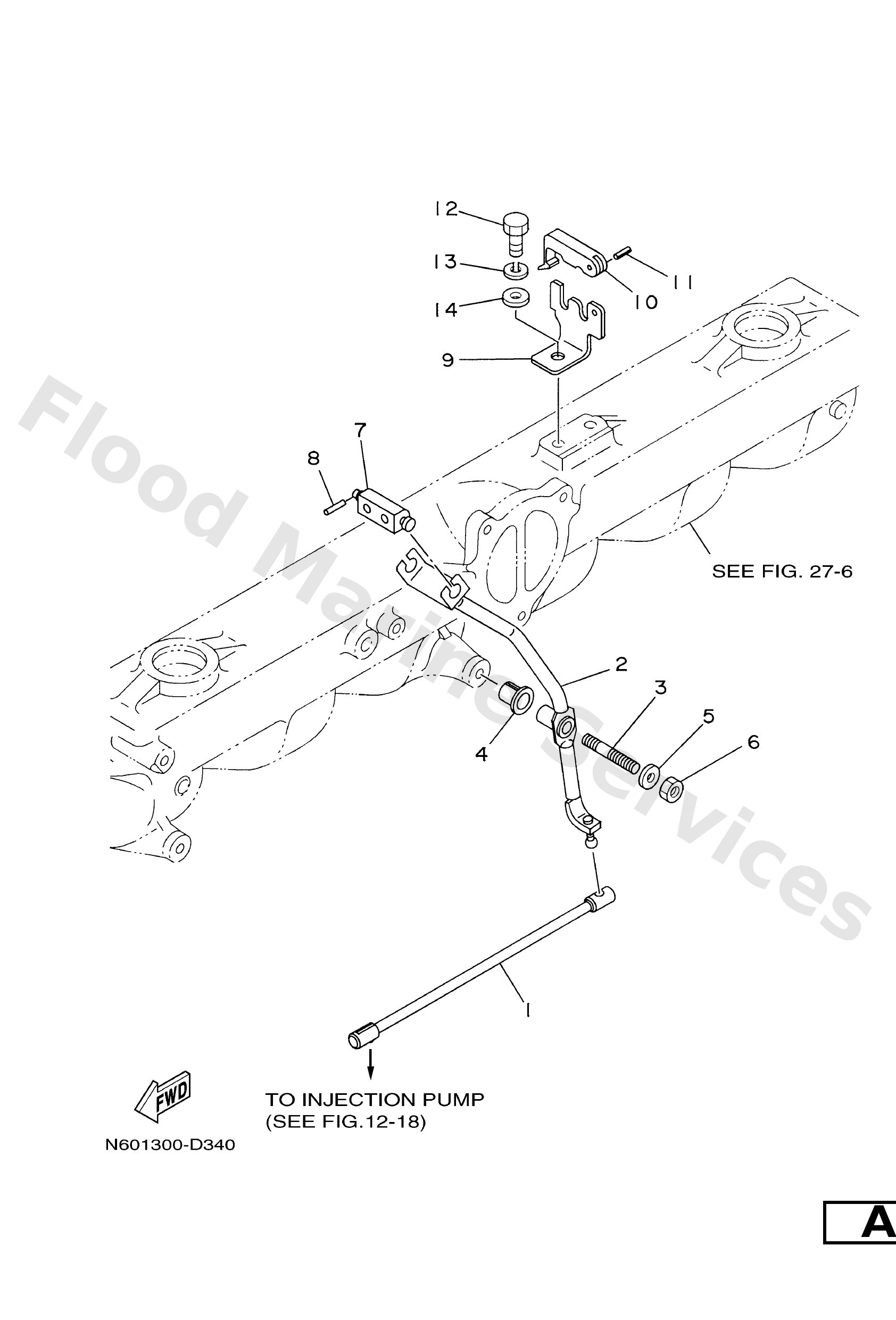

Diagram: THROTTLE CONTROL ATTACHMENT

Diagram

Parts List

Reference
Description
Price


1
6TA4120000
Throttle link comp.
Loading…

↗
2
6TA4121701
Rod, accel. lever
Loading…

↗
3
9562708335
34-
Loading…

↗
4
9038610M86
Bush(6e9)
Loading…

↗
5
9020208M41
Washer, plate(6t4)
Loading…

↗
6
9578008300
Nut, nylon (6j8)
Loading…

↗
7
6TA4122600
End, throttle lever
Loading…

↗
8
9169020016
Pin, spring (677)
Loading…

↗
9
6TA4853100
Bracket, remote control 1
Loading…

↗
10
6634853800
Clamp, cable 1
Loading…

↗
11
9169030012
Pin, spring
Loading…

↗
12
9707508016
Bolt, with washer
Loading…

↗
13
9299508100
Ybs67-8 washer, spring
Loading…

↗
14
9299508600
Washer, plain (663)
Loading…

↗
