Rigging Parts (2007)
TILLER HANDLE F25 COMPLETE 2

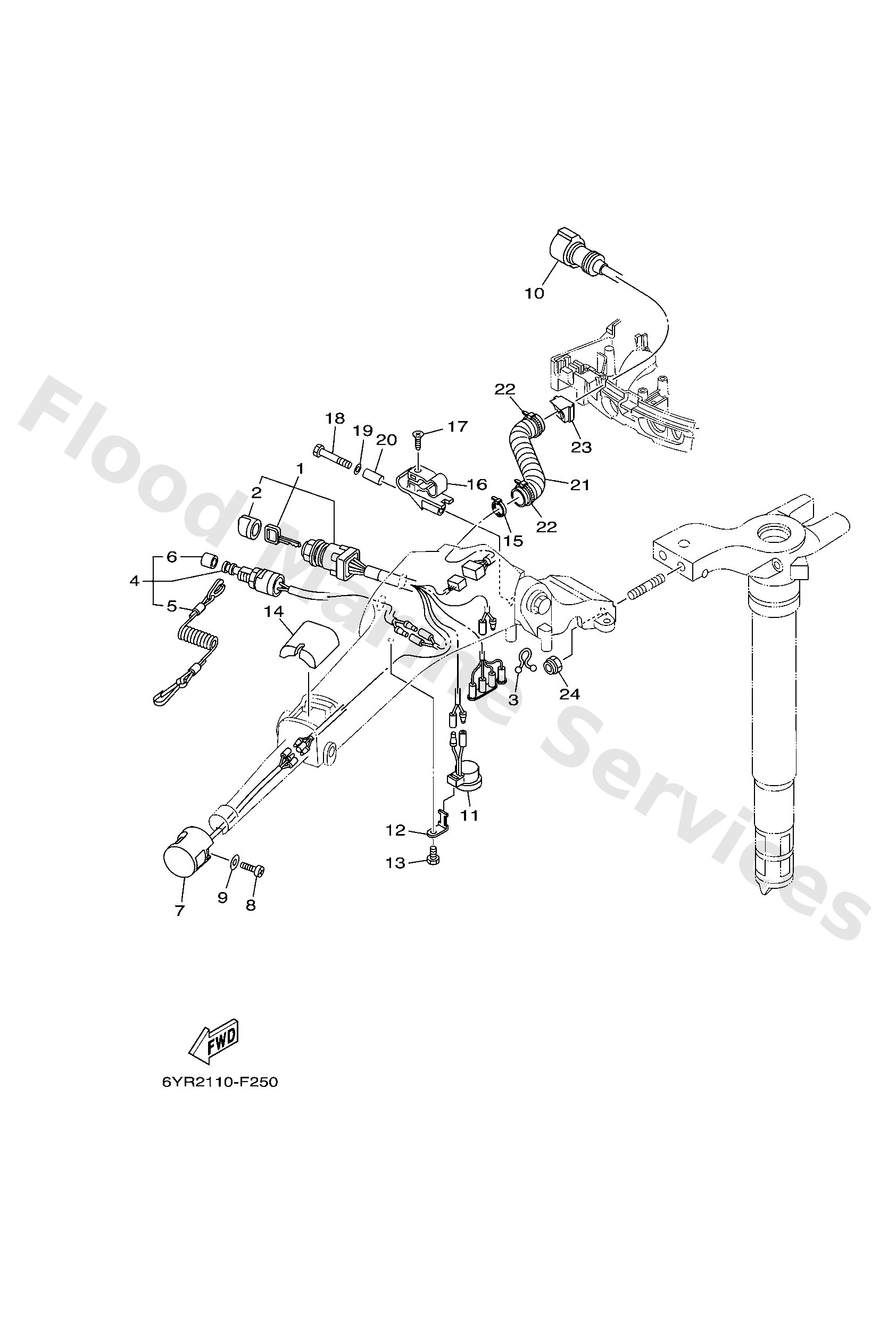

Diagram: TILLER HANDLE F25 COMPLETE 2
Parts List
Reference
Description
Price
1
6X48251000
Main switch assembly
Loading…
↗
2
6768257700
Cap, key
Loading…
↗
3
9046408M07
Clamp
Loading…
↗
4
69W8257500
Engine stop switch assembly
Loading…
↗
5
6828255600
Lanyard, stop switch
Loading…
↗
6
6898257Y00
Cap
Loading…
↗
7
6X48256300
Trim & tilt switch assembly
Loading…
↗
8
9788006016
Screw pan head
Loading…
↗
9
9299006600
Washer, plain (646)
Loading…
↗
10
6X48258610
Ext., wire harness (l:950mm)
Loading…
↗
11
6X48338300
Buzzer
Loading…
↗
12
6X48338600
Stay, buzzer
Loading…
↗
13
9709506014
Bolt(gj3)
Loading…
↗
14
6X48194200
Cover
Loading…
↗
15
9046513M36
Clamp(6h4)
Loading…
↗
16
62Y8236100
Clamp, cord
Loading…
↗
17
9016106M03
Screw, tapping(6e7)
Loading…
↗
18
9709506035
Bolt(j52)
Loading…
↗
19
9299506600
Washer, plain (646)
Loading…
↗
20
9038706M26
Collar(61n)
Loading…
↗
21
9044722006
Tube
Loading…
↗
22
9046513M24
Band, switch cord
Loading…
↗
23
65W4272521
Grommet
Loading…
↗
24
9018510051
Nut, self-locking
Loading…
↗
