Yamaha Outboard Parts - TILLER HANDLE FITTING KIT 60 70 - Rigging Parts (2006) | Flood Marine

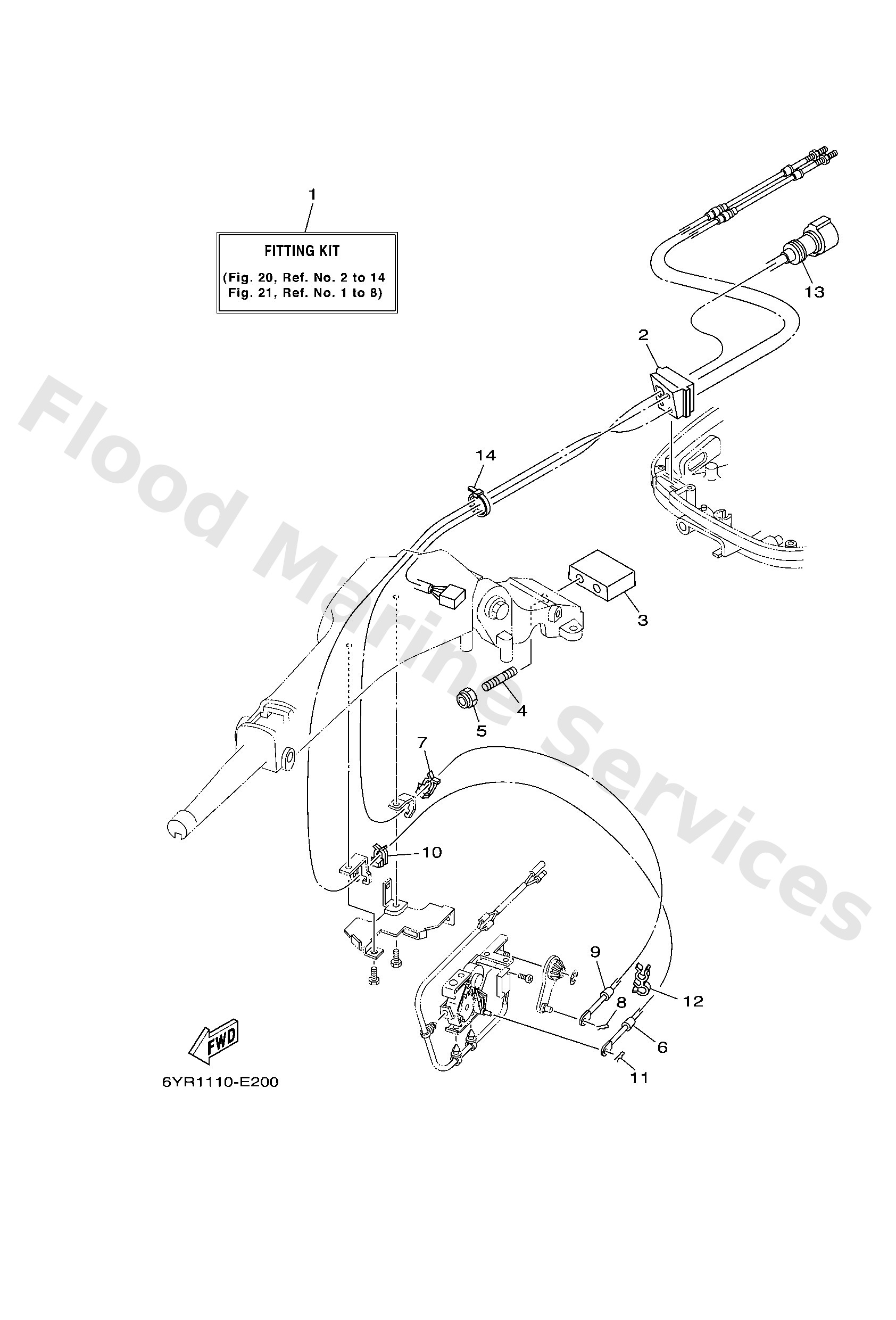

Diagram: TILLER HANDLE FITTING KIT 60 70

Diagram

Parts List

Reference
Description
Price


1
6X44210250 LM
-
Loading…

↗
2
6H34272530
Grommet
Loading…

↗
3
6X442121004D
Bracket
Loading…

↗
4
9011610031
Bolt, stud
Loading…

↗
5
9018510051
Nut, self-locking
Loading…

↗
6
6H34832110
Cable
Loading…

↗
7
63D4853800
Clamp, cable 1
Loading…

↗
8
9046810005
Pin, hair 6264123500
Loading…

↗
9
6H32630101
Throttle cable assembly
Loading…

↗
12
9046409M42
Clamp(6b0)
Loading…

↗
13
6X48258630
Extension, wire harness
Loading…

↗
14
9046513M36
Clamp(6h4)
Loading…

↗
