RIGGING - STEERING (2019)
TILLER HANDLE KIT 2

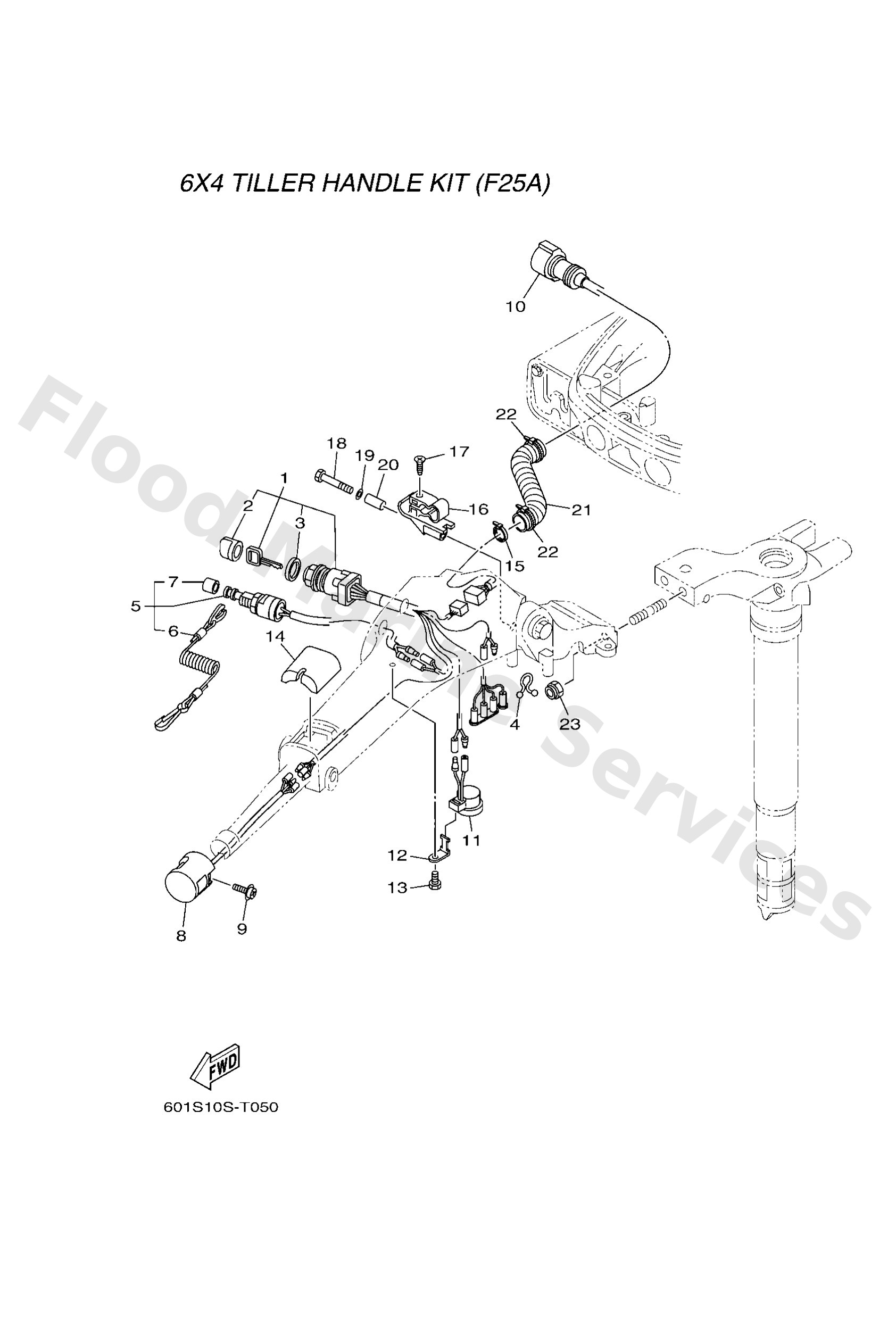

Diagram: TILLER HANDLE KIT 2
Parts List
Reference
Description
Price
1
6X48251001
Main switch assembly
Loading…
↗
2
6768257701
Cap, key
Loading…
↗
3
7038253200
Cap
Loading…
↗
4
9046408M07
Clamp
Loading…
↗
5
69W8257500
Engine stop switch assembly
Loading…
↗
6
6828255600
Lanyard, stop switch
Loading…
↗
7
6898257Y00
Cap
Loading…
↗
8
6X48256301
Trim & tilt switch assembly
Loading…
↗
9
9798006216
Screw, with washer(6h2)
Loading…
↗
10
6X48258610
Ext., wire harness (l:950mm)
Loading…
↗
11
6X48338300
Buzzer
Loading…
↗
12
6X48338600
Stay, buzzer
Loading…
↗
13
97D9506014
Bolt, hexagon deep recess
Loading…
↗
14
6X48194201
Cover
Loading…
↗
15
9046513M36
Clamp(6h4)
Loading…
↗
16
62Y8236100
Clamp, cord
Loading…
↗
17
9016106M03
Screw, tapping(6e7)
Loading…
↗
18
97D9506035
Bolt, hexagon deep recess
Loading…
↗
19
9299506600
Washer, plain (646)
Loading…
↗
20
9038706M26
Collar(61n)
Loading…
↗
21
9044722006
Tube
Loading…
↗
22
9046513M24
Band, switch cord
Loading…
↗
23
9018510027
Nut, self-locking
Loading…
↗
