115CETO (2012)
TOP COWLING

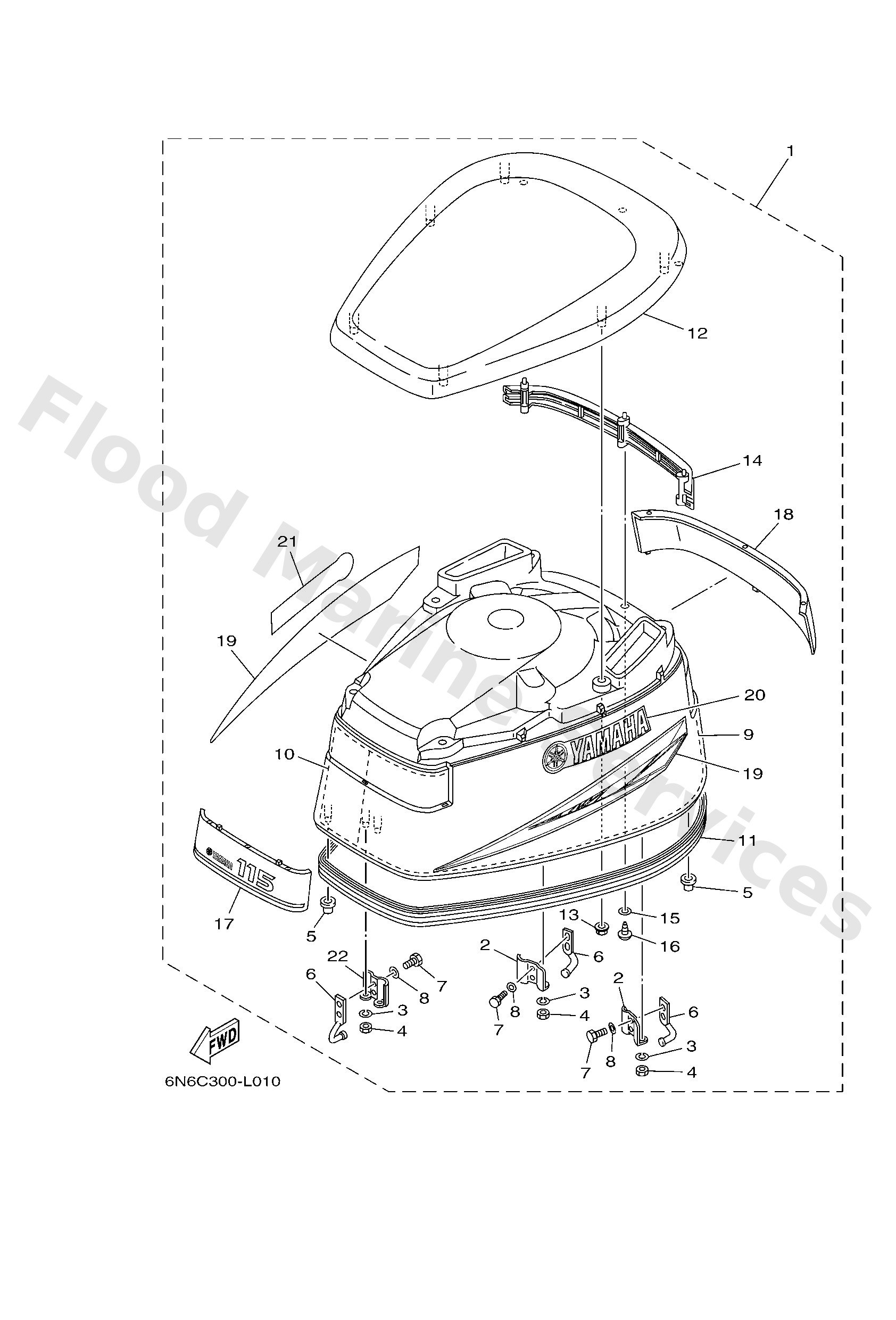

Diagram: TOP COWLING
Parts List
Reference
Description
Price
1
6N64261000
Top Cowling assembly
Loading…
↗
2
6R34264700
Holder, clamp band
Loading…
↗
3
9299006100
Washer(6a1)
Loading…
↗
4
9538006600
Nut(661)
Loading…
↗
5
6R34266200
Damper
Loading…
↗
6
6R34281400
Hook, clamp
Loading…
↗
7
9709506012
Bolt(gh1)
Loading…
↗
8
9299506600
Washer, plain (646)
Loading…
↗
9
6N74261900
Damper, form
Loading…
↗
10
6N74262700
Damper, form
Loading…
↗
11
6N74261500
Seal
Loading…
↗
12
6N742613008D
Molding, air duct
Loading…
↗
13
9017906M24
Nut(6j8)
Loading…
↗
14
6N74263600
Louver, 2
Loading…
↗
15
9299004600
Washer, plain (646)
Loading…
↗
16
9778040520
Ybs83-420 screw,panh,tapping
Loading…
↗
17
6N64268640
Emblem, front
Loading…
↗
18
6N64268730
Emblem, rear
Loading…
↗
19
6N7W007010
Graphic set
Loading…
↗
20
6884268140
Mark, cowling
Loading…
↗
22
6N74264700
Holder, clamp band
Loading…
↗
