225GETO (2002)
TOP COWLING

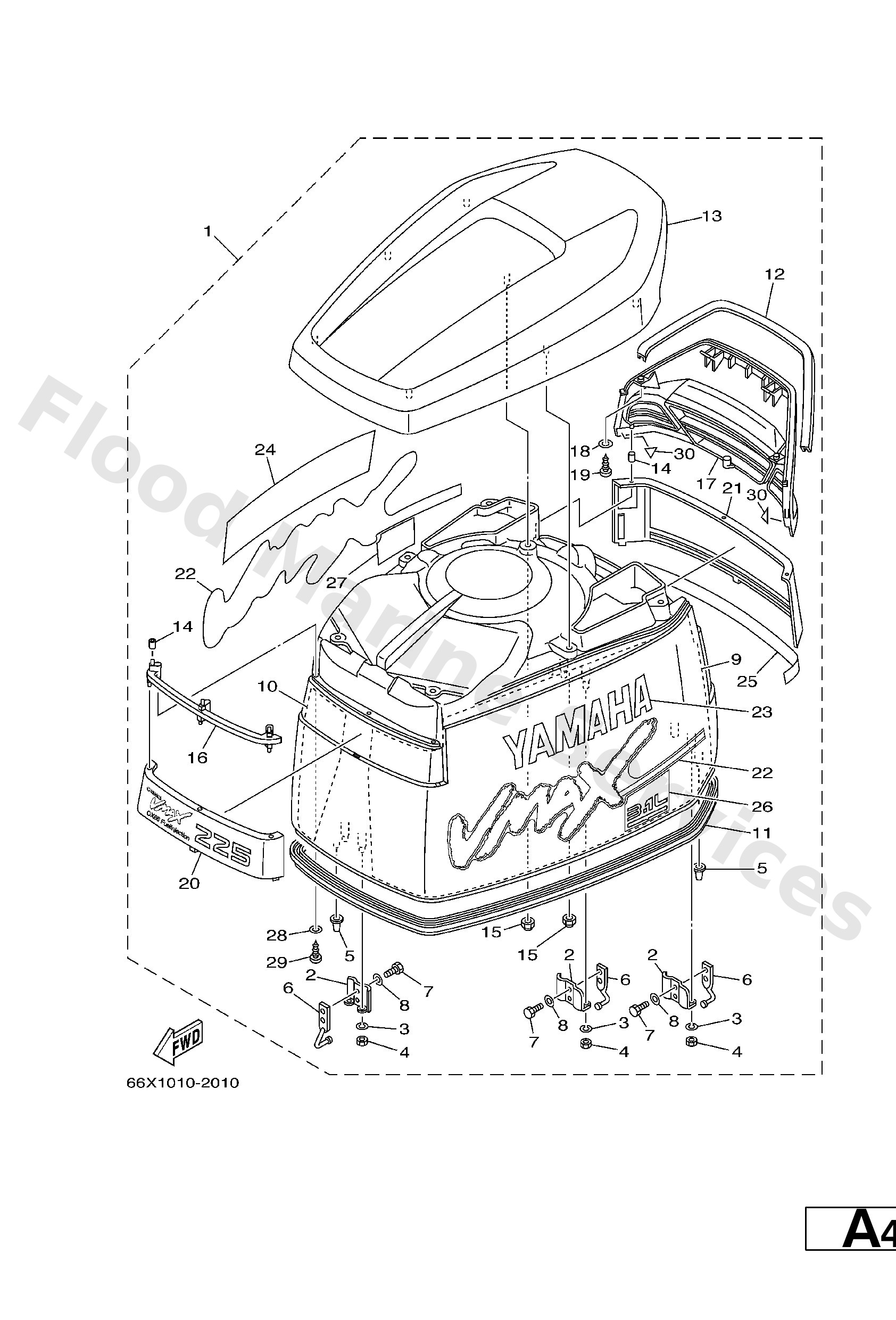

Diagram: TOP COWLING
Parts List
Reference
Description
Price
2
6R3−42647−00
Holder, clamp band
Loading…
↗
3
92990−06100
Washer(6a1)
Loading…
↗
4
95380−06600
Nut(661)
Loading…
↗
5
6R3−42662−00
Damper
Loading…
↗
6
6R3−42814−00
Hook, clamp
Loading…
↗
7
97095−06012
Bolt(gh1)
Loading…
↗
8
92995−06600
Washer, plain (646)
Loading…
↗
9
61A−42619−02
Damper, Form
Loading…
↗
10
61A−42627−02
Damper, Form
Loading…
↗
11
61A−42615−01
Seal
Loading…
↗
12
66K−42662−00
Damper
Loading…
↗
14
90385−04M05
Bush(6r2)
Loading…
↗
15
90179−06M24
Nut(6j8)
Loading…
↗
16
61A−42626−00
Louver, 1
Loading…
↗
18
92990−05200
Ybs66-5 washer, plain
Loading…
↗
19
97780−50616
Screw, pan head tapping (ak5)
Loading…
↗
20
66K−42686−P0
Emblem, Front
Loading…
↗
21
66K−42687−N0
Emblem, Rear
Loading…
↗
22
66K−W0070−N0
Graphic set
Loading…
↗
23
66K−42681−N0
Mark, cowling
Loading…
↗
24
66K−42682−N0
Mark, Cowling
Loading…
↗
25
66K−4267A−N0
Graphic, Rear 2
Loading…
↗
26
66K−42683−N1
Mark, Cowling
Loading…
↗
27
66K−42684−N1
Mark, Cowling
Loading…
↗
28
92990−04600
Washer, plain (646)
Loading…
↗
29
97780−40520
Ybs83-420 screw,panh,tapping
Loading…
↗
30
66K−42628−00
Seal
Loading…
↗
