40VEO (2015)
TOP COWLING

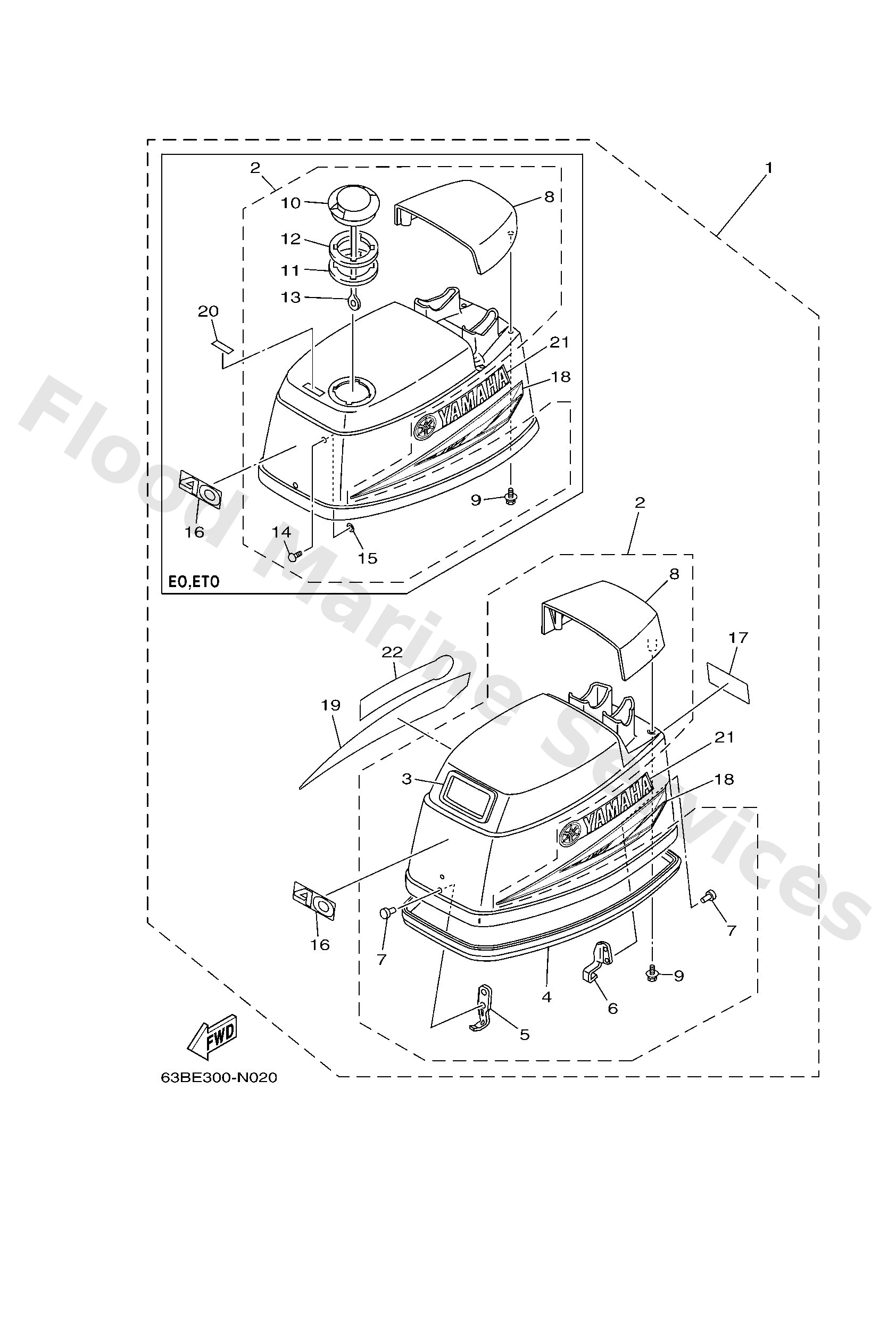

Diagram: TOP COWLING
Parts List
Reference
Description
Price
1
62X4261000
50HMHO,MHDO
-
Loading…
↗
1
63D4261080
40VEO
Top cowling assembly
Loading…
↗
1
63D4261070
40VMHO
Top cowling assembly
Loading…
↗
1
62X4261070
50HETO
-
Loading…
↗
2
6H44261A10
Top cowling w/o graphics
Loading…
↗
2
6H44261A00
Top cowling w/o graphics
Loading…
↗
3
6H41576100
Seal 1
Loading…
↗
4
6H44261500
Seal
Loading…
↗
5
6H44265100
Hook 1
Loading…
↗
6
6H44265200
Hook 2
Loading…
↗
7
9026604M01
Rivet (689)
Loading…
↗
8
6H442613114D
M0lding air duct
Loading…
↗
8
6H442613014D
Molding, air duct
Loading…
↗
9
9011906M99
Bolt, with washer(6h4)
Loading…
↗
10
63D2177H00
Disk cap 2
Loading…
↗
11
6H32173200
Seal 1
Loading…
↗
12
6H32173500
Seal 2
Loading…
↗
13
6H14269400
Band
Loading…
↗
14
9033805M03
Plug (6h1)
Loading…
↗
15
9018305M06
Nut, spring(6h4)
Loading…
↗
16
62X4267840
50H
-
Loading…
↗
16
63D4267840
40V
Graphic, rear
Loading…
↗
18
6884267540
Graphic, side 1
Loading…
↗
19
6884267640
Graphic, side 2
Loading…
↗
20
63D1343640
Mark
Loading…
↗
21
63D4268140
Mark, cowling
Loading…
↗
