60FET (2003)
TOP COWLING

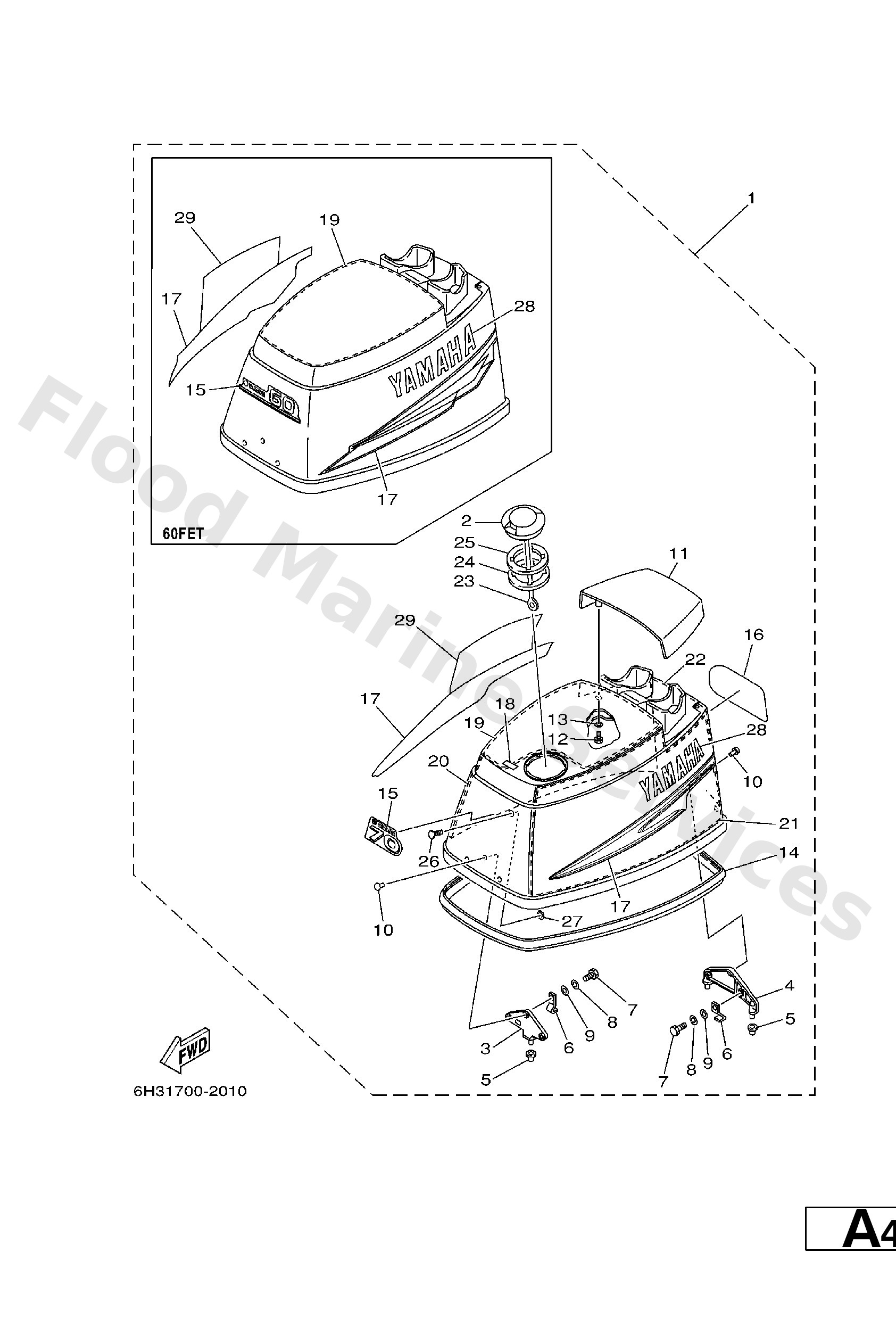

Diagram: TOP COWLING
Parts List
Reference
Description
Price
1
6H2−42610−90−4D
Top Cowling assembly
Loading…
↗
1
6H2−42610−50−4D
Top Cowling assembly
Loading…
↗
1
6H3−42610−60−4D
Top Cowling assembly
Loading…
↗
2
63D−2177H−00
Disk cap 2
Loading…
↗
3
6H3−42647−00−94
Holder, clamp band
Loading…
↗
4
6H3−42649−00−94
Holder, clamp band
Loading…
↗
5
663−42662−00
Damper
Loading…
↗
6
6H3−42652−00
Hook 2
Loading…
↗
7
97095−06016
Bolt, hexagon deep recess
Loading…
↗
8
92995−06100
Washer(6a1)
Loading…
↗
9
92995−06600
Washer, plain (646)
Loading…
↗
10
90266−06009
Rivet (697)
Loading…
↗
11
6H3−42613−01−4D
M0lding air duct
Loading…
↗
14
6H3−42615−00
Seal
Loading…
↗
15
6H3−42677−60
Graphic, Front
Loading…
↗
15
6H2−42677−60
Graphic, Front
Loading…
↗
15
6H2−42677−50
Graphic, rear
Loading…
↗
16
6H3−42678−50
Graphic, Rear
Loading…
↗
16
6H2−42678−30
Graphic, front
Loading…
↗
16
6H2−42678−50
Graphic, Rear
Loading…
↗
17
6H3−W0070−50
1−
Loading…
↗
17
6H3−W0070−30
Graphic set
Loading…
↗
18
6H3−13436−40
Mark
Loading…
↗
19
6H3−42617−10
Damper, Form
Loading…
↗
19
6H3−42617−00
Damper, Form
Loading…
↗
20
6H3−42619−00
Damper (350x640)
Loading…
↗
21
6H3−42627−00
Damper (350x640)
Loading…
↗
22
6H3−42637−00
Damper, Form
Loading…
↗
23
6H1−42694−00
Band
Loading…
↗
24
6H3−21732−00
Seal 1
Loading…
↗
25
6H3−21735−00
Seal 2
Loading…
↗
26
90338−05M03
Plug (6h1)
Loading…
↗
27
90183−05M06
Nut, spring(6h4)
Loading…
↗
28
6H3−42681−50
Mark, Cowling
Loading…
↗
28
6H3−42681−30
Mark, cowling
Loading…
↗
29
6H3−42682−50
Mark, Cowling
Loading…
↗
29
6H3−42682−30
Mark, cowling
Loading…
↗
