70BETO (2010)
TOP COWLING

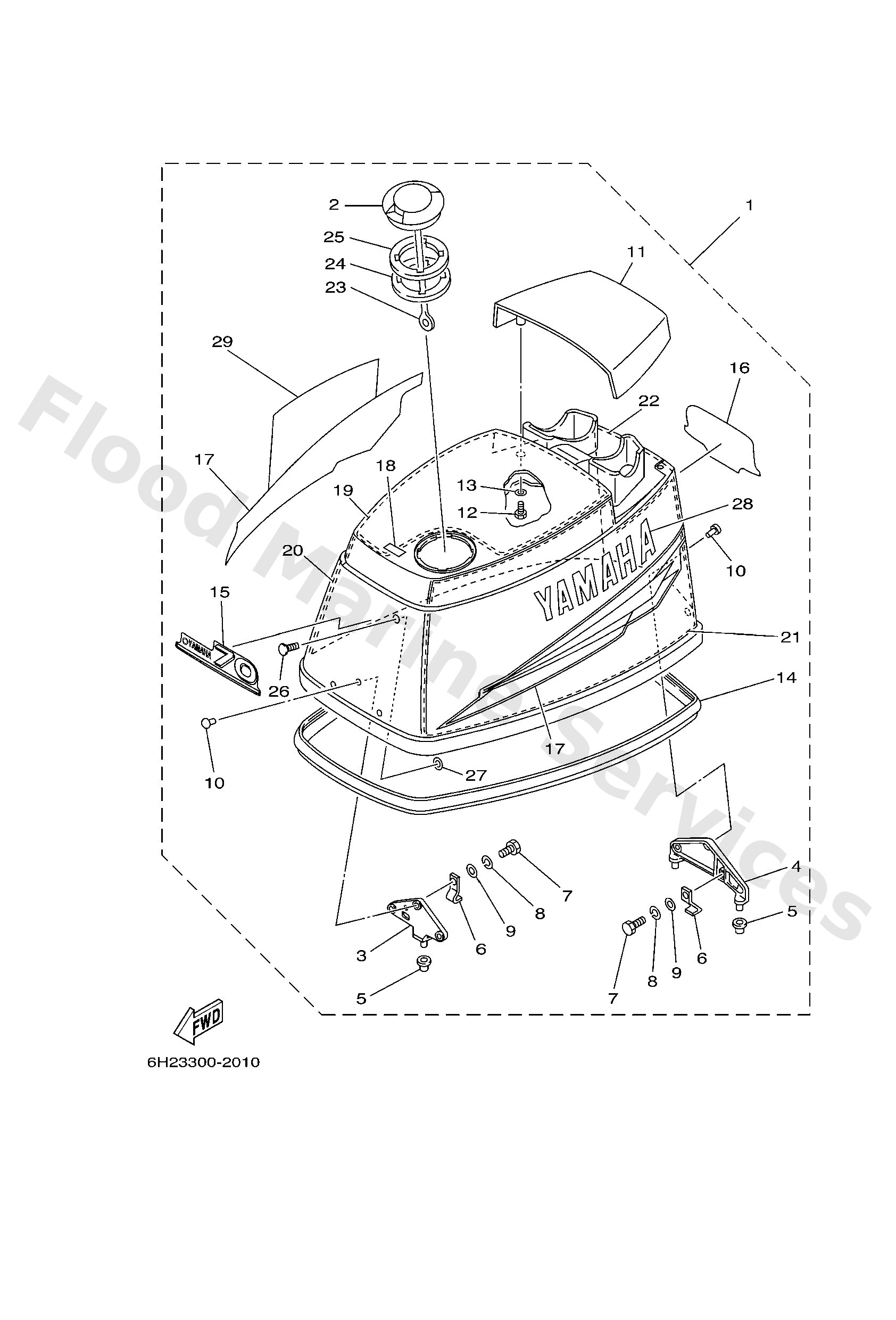

Diagram: TOP COWLING
Parts List
Reference
Description
Price
1
6H342610504D
Top Cowling assembly
Loading…
↗
2
63D2177H00
Disk cap 2
Loading…
↗
3
6H3426470094
Holder, clamp band
Loading…
↗
4
6H3426490094
Holder, clamp band
Loading…
↗
5
6634266200
Damper
Loading…
↗
6
6H34265200
Hook 2
Loading…
↗
7
9709506016
Bolt, hexagon deep recess
Loading…
↗
8
9299506100
Washer(6a1)
Loading…
↗
9
9299506600
Washer, plain (646)
Loading…
↗
10
9026606009
Rivet (697)
Loading…
↗
11
6H342613014D
M0lding air duct
Loading…
↗
14
6H34261500
Seal
Loading…
↗
15
6H34267750
Graphic, rear
Loading…
↗
16
6H34267830
Graphic, rear
Loading…
↗
17
6H3W007030
Graphic set
Loading…
↗
18
6H31343600
Mark
Loading…
↗
19
6H34261710
Damper, Form
Loading…
↗
20
6H34261900
Damper (350x640)
Loading…
↗
21
6H34262700
Damper (350x640)
Loading…
↗
22
6H34263700
Damper, Form
Loading…
↗
23
6H14269400
Band
Loading…
↗
24
6H32173200
Seal 1
Loading…
↗
25
6H32173500
Seal 2
Loading…
↗
26
9033805M03
Plug (6h1)
Loading…
↗
27
9018305M06
Nut, spring(6h4)
Loading…
↗
28
6H34268130
Mark, cowling
Loading…
↗
29
6H34268230
Mark, cowling
