90AETO (2017)
TOP COWLING

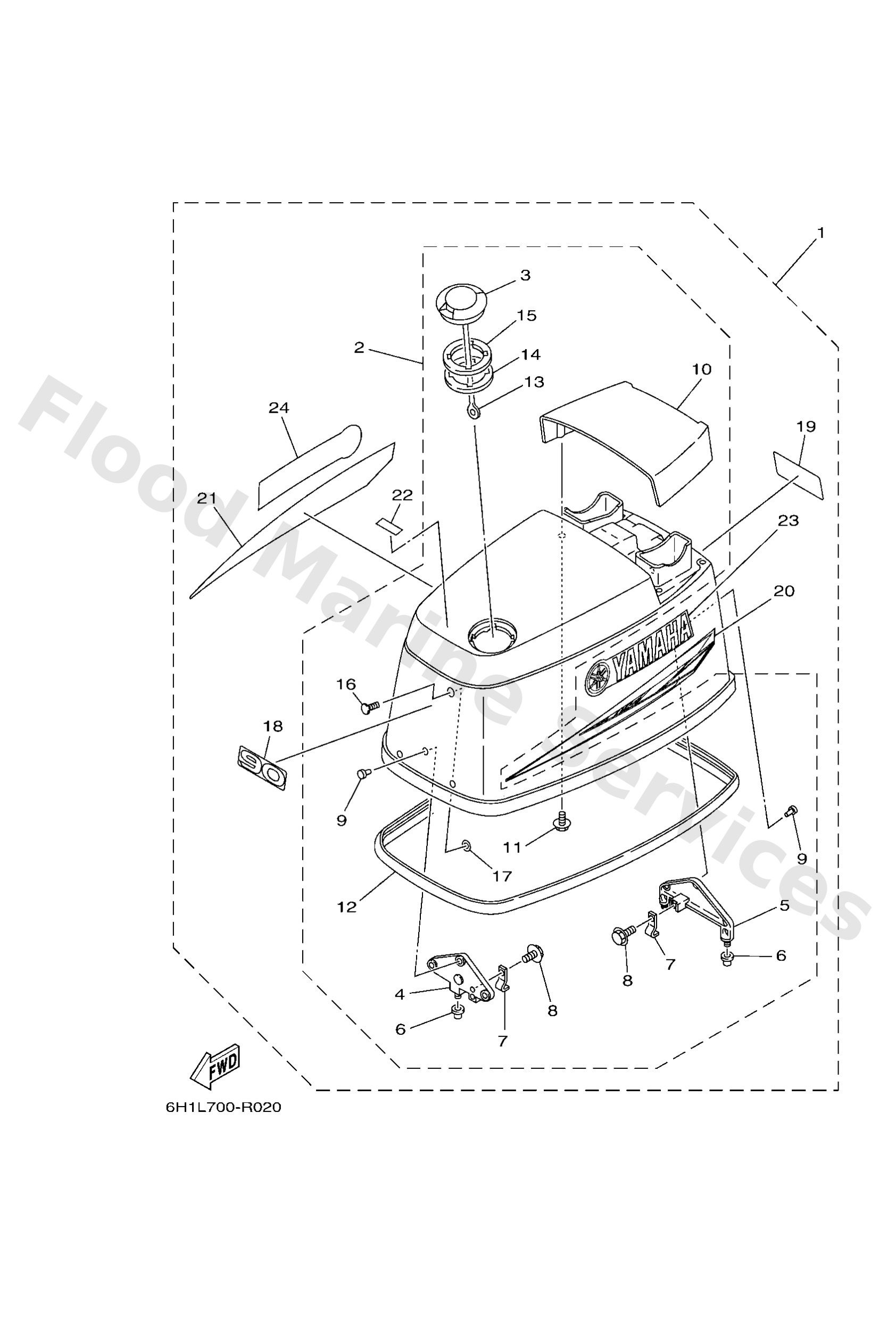

Diagram: TOP COWLING
Parts List
Reference
Description
Price
1
6H14261001
Top cowling assembly
Loading…
↗
2
6H14261A11
Top cowling w/o graphics
Loading…
↗
3
63D2177H00
Disk cap 2
Loading…
↗
4
6H14264700
Holder, clamp band
Loading…
↗
5
6H14264900
Holder, clamp band
Loading…
↗
6
6634266200
Damper
Loading…
↗
7
6884265210
Hook 2
Loading…
↗
8
9759506616
Bolt, hexagon w/w deep recess
Loading…
↗
9
9026606009
Rivet (697)
Loading…
↗
10
6H142613018D
Molding, air duct
Loading…
↗
11
9759506516
Bolt, with washer(6r6)
Loading…
↗
12
6884261500
Seal
Loading…
↗
13
6H14269400
Band
Loading…
↗
14
6H32173200
Seal 1
Loading…
↗
15
6H32173500
Seal 2
Loading…
↗
16
9033805M12
Plug(6h4)
Loading…
↗
17
9018305M06
Nut, spring(6h4)
Loading…
↗
18
6H14267810
Graphic, rear
Loading…
↗
20
6884267550
Graphic, side 1
Loading…
↗
21
6884267650
Graphic, side 2
Loading…
↗
22
6H11343600
Mark
Loading…
↗
23
6884268170
Mark, cowling
Loading…
↗
