E60HMHD (2003)
TOP COWLING

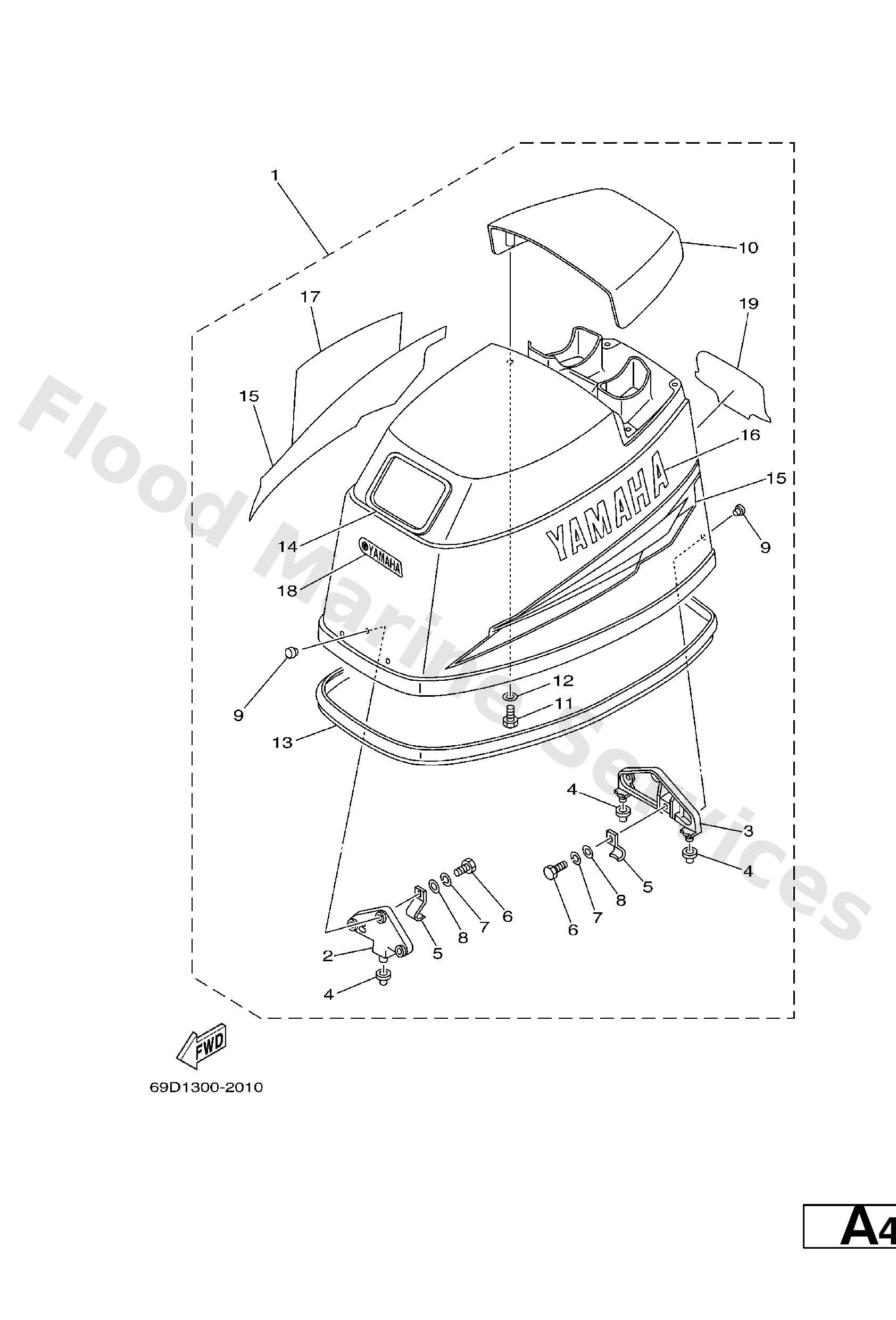

Diagram: TOP COWLING
Parts List
Reference
Description
Price
1
6K5−42610−C0−4D
Top Cowling assembly
Loading…
↗
2
6H3−42647−00−94
Holder, clamp band
Loading…
↗
3
6H3−42649−00−94
Holder, clamp band
Loading…
↗
4
663−42662−00
Damper
Loading…
↗
5
6H3−42652−00
Hook 2
Loading…
↗
6
97095−06016
Bolt, hexagon deep recess
Loading…
↗
7
92995−06100
Washer(6a1)
Loading…
↗
8
92995−06600
Washer, plain (646)
Loading…
↗
9
90266−06009
Rivet (697)
Loading…
↗
10
6H3−42613−01−4D
M0lding air duct
Loading…
↗
13
6H3−42615−00
Seal
Loading…
↗
14
6K5−15761−00
Seal, rubber 1
Loading…
↗
15
6H3−W0070−30
Graphic set
Loading…
↗
16
6H3−42681−30
Mark, cowling
Loading…
↗
17
6H3−42682−30
Mark, cowling
Loading…
↗
18
688−42677−D0
YAMAHA
Graphic, front
Loading…
↗
19
6H2−42678−30
Graphic, front
Loading…
↗
