Yamaha Outboard Parts - TOP COWLING - E60HMHD (2008) | Flood Marine

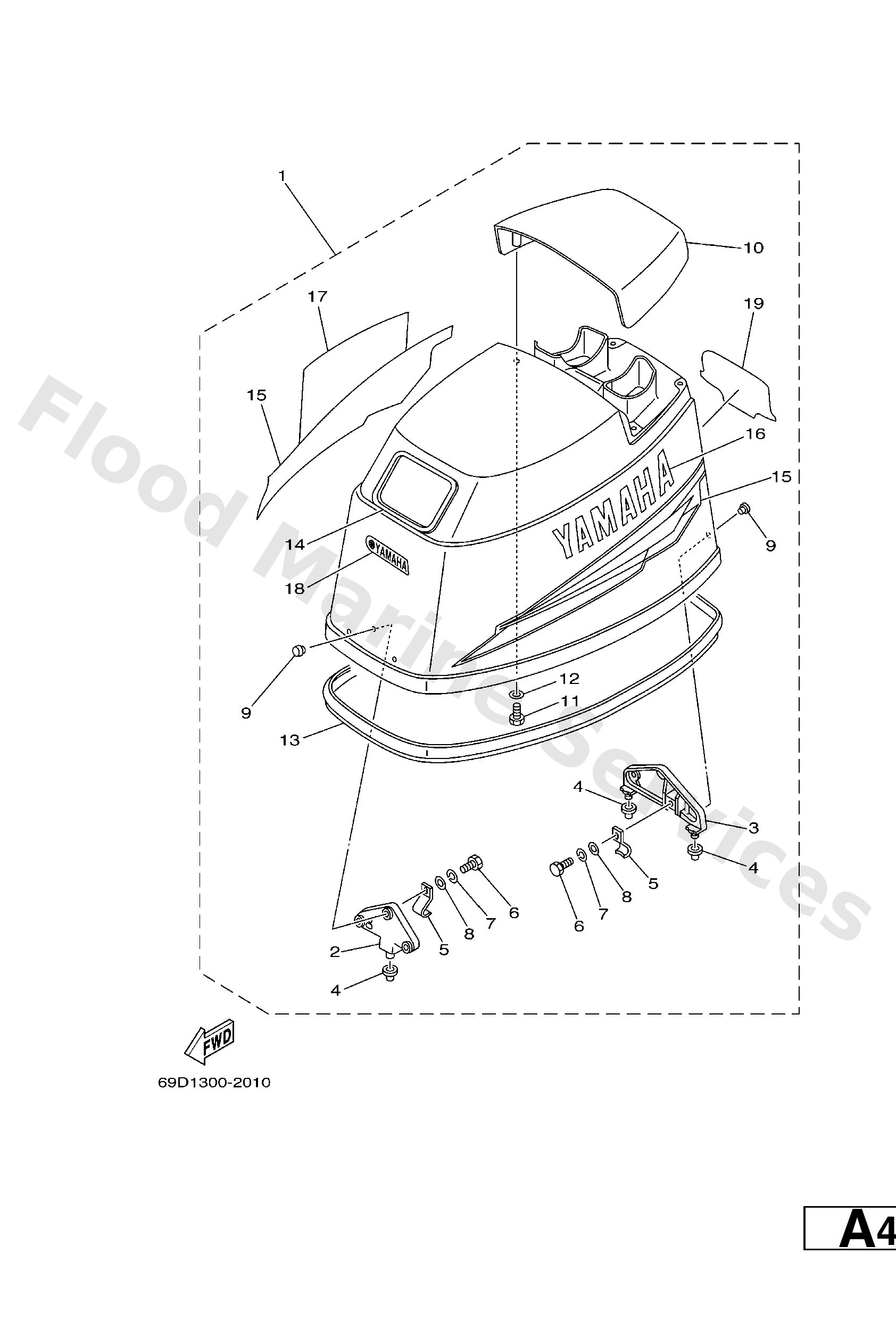

Diagram: TOP COWLING

Diagram

Parts List

Reference
Description
Price


1
6K542610C04D
Top Cowling assembly
Loading…

↗
2
6H3426470094
Holder, clamp band
Loading…

↗
3
6H3426490094
Holder, clamp band
Loading…

↗
4
6634266200
Damper
Loading…

↗
5
6H34265200
Hook 2
Loading…

↗
6
9709506016
Bolt, hexagon deep recess
Loading…

↗
7
9299506100
Washer(6a1)
Loading…

↗
8
9299506600
Washer, plain (646)
Loading…

↗
9
9026606009
Rivet (697)
Loading…

↗
10
6H342613014D
M0lding air duct
Loading…

↗
13
6H34261500
Seal
Loading…

↗
14
6K51576100
Seal, rubber 1
Loading…

↗
15
6H3W007030
Graphic set
Loading…

↗
16
6H34268130
Mark, cowling
Loading…

↗
17
6H34268230
Mark, cowling
Loading…

↗
18
68842677D0 YAMAHA
Graphic, front
Loading…

↗
19
6H24267830
Graphic, front
Loading…

↗
