E60HMHD (2017)
TOP COWLING

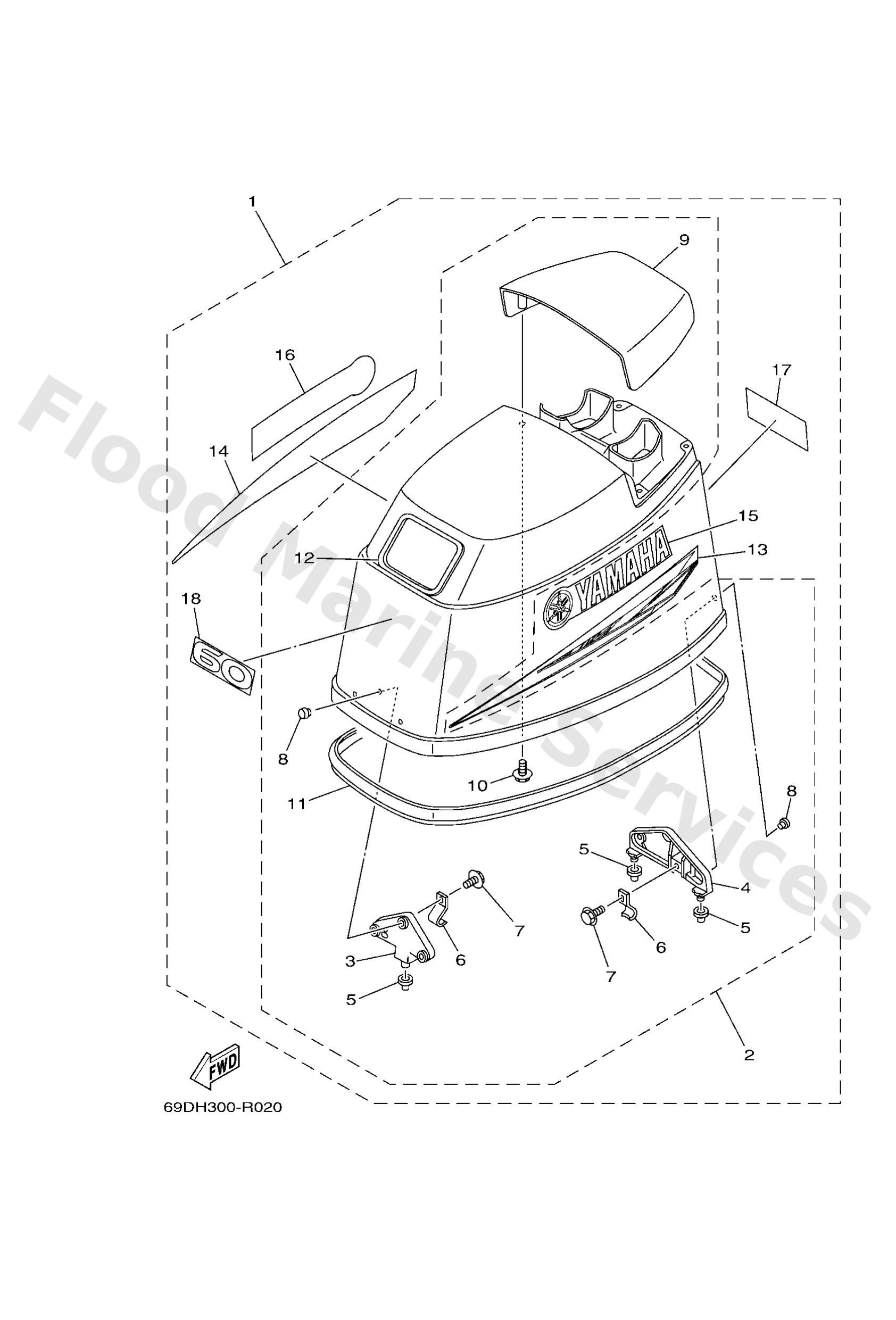

Diagram: TOP COWLING
Parts List
Reference
Description
Price
1
69D4261030
Top cowling assembly
Loading…
↗
2
6K54261A00
Top cowling w/o graphics
Loading…
↗
3
6H34264700
Holder, clamp band
Loading…
↗
4
6H34264900
Holder, clamp band
Loading…
↗
5
6634266200
Damper
Loading…
↗
6
6H34265200
Hook 2
Loading…
↗
7
9759506616
Bolt, hexagon w/w deep recess
Loading…
↗
8
9026606009
Rivet (697)
Loading…
↗
9
6H342613018D
Molding, air duct
Loading…
↗
10
9759506516
Bolt, with washer(6r6)
Loading…
↗
11
6H34261500
Seal
Loading…
↗
12
6K51576100
Seal, rubber 1
Loading…
↗
13
6884267550
Graphic, side 1
Loading…
↗
14
6884267650
Graphic, side 2
Loading…
↗
15
63D4268140
Mark, cowling
Loading…
↗
17
6H24267810
Graphic, rear
Loading…
↗
