Yamaha Outboard Parts - TOP COWLING - F15CE (2008) | Flood Marine

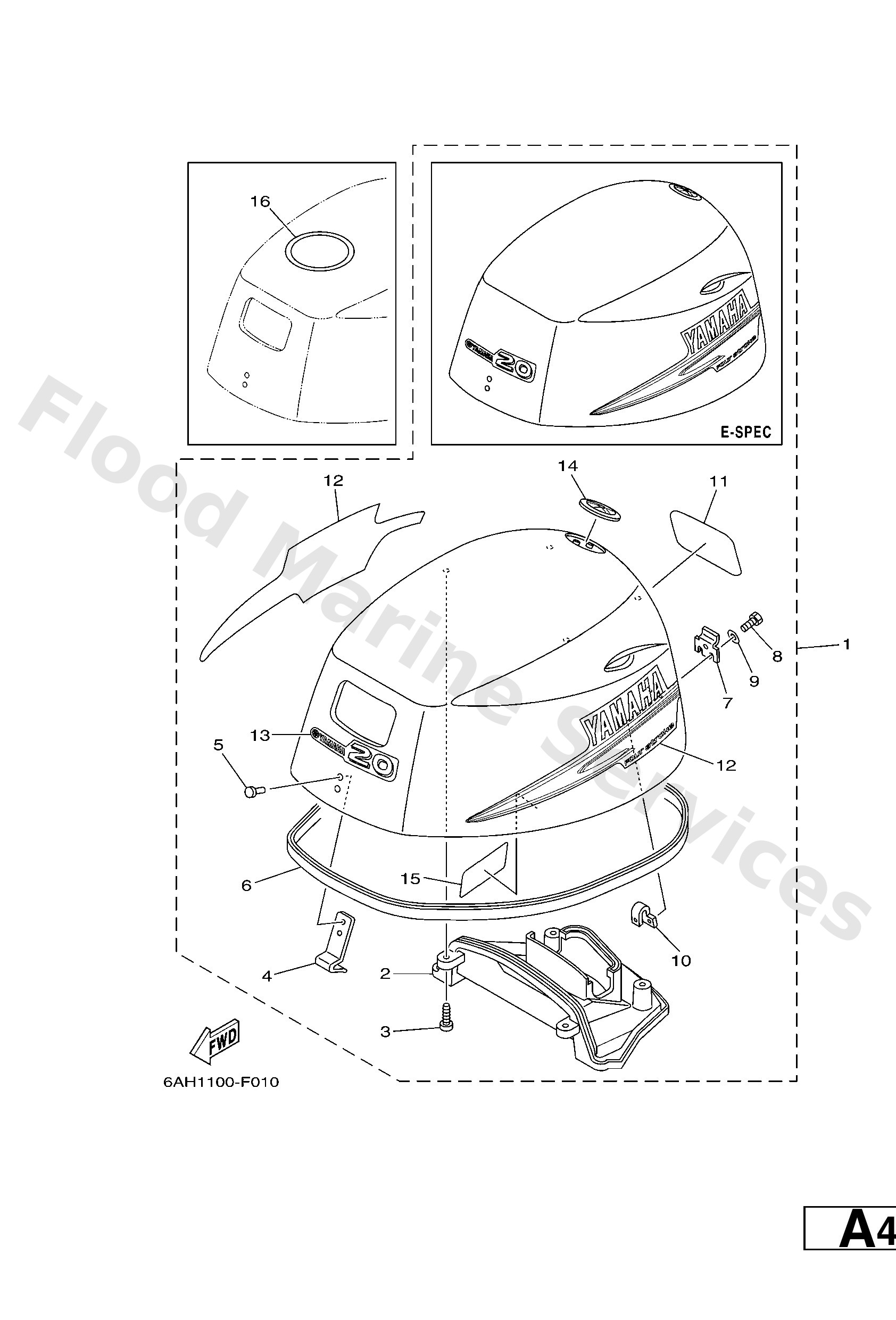

Diagram: TOP COWLING

Diagram

Parts List

Reference
Description
Price


1
6AG42610014D F15C
トツプカウリングアセンブリ
Loading…

↗
1
6AF42610014D F13.5B
Top cowling assembly
Loading…

↗
1
6AH42610114D F20B
トツプカウリングアセンブリ
Loading…

↗
1
6AG42610114D F15C
トツプカウリングアセンブリ
Loading…

↗
1
6AF42610114D F13.5B
Top cowling assembly
Loading…

↗
1
6AH42610014D F20B
Top cowling w/o graphics (6ah)
Loading…

↗
2
6AH4261300
Molding, air duct
Loading…

↗
3
9778050616
Screw, pan head tapping (ak5)
Loading…

↗
4
6AH4265100
Hook
Loading…

↗
5
9026606M02
Rivet (697)
Loading…

↗
6
6AH4261500
Seal
Loading…

↗
7
60R4265200
Hook
Loading…

↗
8
9709505014
Bolt, w/ plain
Loading…

↗
9
9299505600
Washer, plain (646)
Loading…

↗
10
6AH4264900
Holder, clamp band
Loading…

↗
11
6AH4267800 F20B
Graphic, front
Loading…

↗
11
6AG4267800 F15C
Graphic, front
Loading…

↗
11
6AF4267800 F13.5B
Graphic, Rear
Loading…

↗
12
6AHW007000
Graphic set
Loading…

↗
13
65W4267710 F20B
Graphic, front
Loading…

↗
13
6AG4267700 F15C
Graphic, front
Loading…

↗
13
6AF4267700 F13.5B
Graphic, Front
Loading…

↗
14
6AH4269701
Tuning fork mark
Loading…

↗
15
6AH4273500
Protector
Loading…

↗
16
67F1343403
ラベル , コーシヨン
Loading…

↗
