F200CET (2019)
TOP COWLING

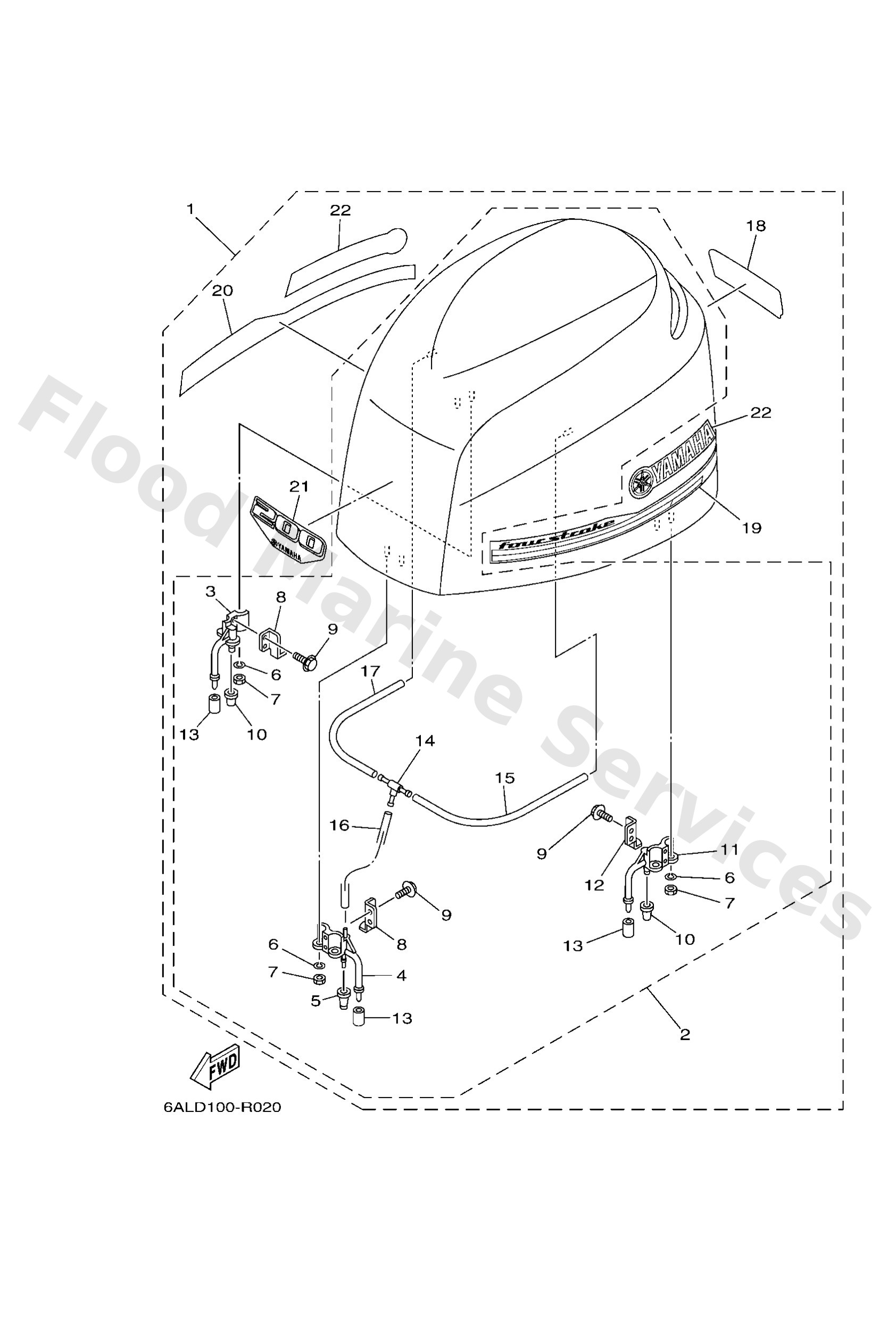

Diagram: TOP COWLING
Parts List
Reference
Description
Price
1
6AS4261021
Top cowling assembly
Loading…
↗
1
6AL4261021
Top cowling assembly
Loading…
↗
2
6P24261A01
Top cowling w/o graphics
Loading…
↗
3
68F4264701
Holder, clamp band
Loading…
↗
4
69J4264701
Holder, clamp band
Loading…
↗
5
69J4266300
Damper 2
Loading…
↗
6
9299006100
Washer(6a1)
Loading…
↗
7
9538006600
Nut(661)
Loading…
↗
8
60V4265101
Hook
Loading…
↗
9
97E9506516
Bolt, hexagon w/w deep recess
Loading…
↗
10
68F4266300
Damper 2
Loading…
↗
11
68F4264801
Holder, clamp band
Loading…
↗
12
60V4265200
Hook
Loading…
↗
13
67F1344800
Cap
Loading…
↗
14
69J2437800
Pipe, joint 4
Loading…
↗
15
9044511M27
Hose (l700)
Loading…
↗
16
9044511699
Hose (l800)
Loading…
↗
17
9044511182
Hose (l370)
Loading…
↗
18
6AL4267810
Graphic, rear
Loading…
↗
18
6AS4267810
Graphic, rear
Loading…
↗
19
6AS4267500
Graphic, side 1
Loading…
↗
20
6AS4267600
Graphic, side 2
Loading…
↗
21
6AL4267700
Graphic, front
Loading…
↗
21
6AS4267700
Graphic, front
Loading…
↗
22
63P4268120
Mark, cowling
Loading…
↗
