F225JET (2025)
TOP COWLING

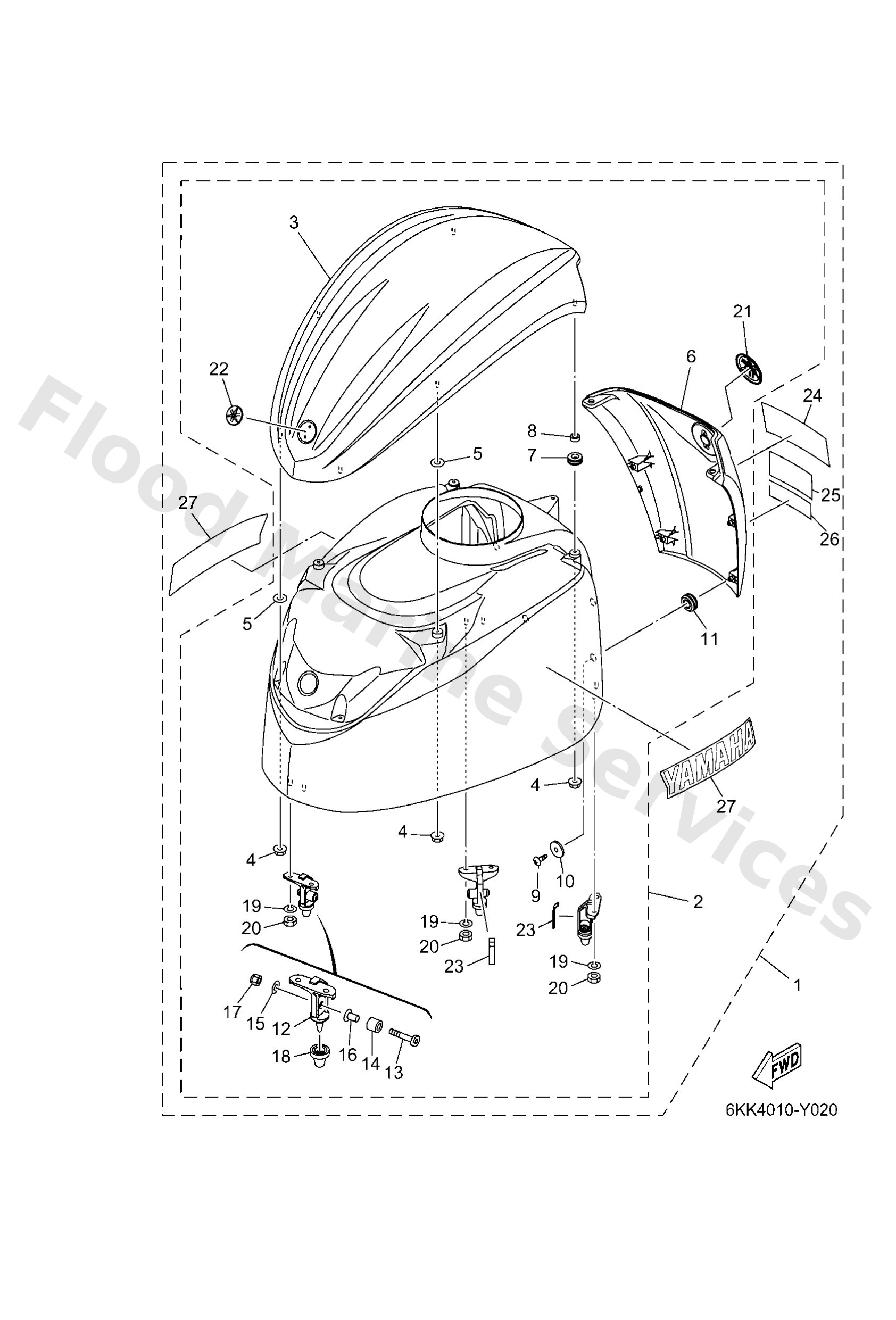

Diagram: TOP COWLING
Parts List
Reference
Description
Price
1
6KK42610018D
Top cowling assembly
Loading…
↗
2
6KA4261A018D
Top cowling w/o graphics
Loading…
↗
3
6KA42613008D
Molding, air duct
Loading…
↗
4
9017906M28
Nut(63v)
Loading…
↗
5
6CB4254500
Washer, plain
Loading…
↗
6
6KA42625008D
Panel, rear
Loading…
↗
7
9048013004
Grommet
Loading…
↗
8
9038707054
Collar
Loading…
↗
9
9778050016
Screw, tapping(4ky)
Loading…
↗
10
90201053R1
Washer, plate
Loading…
↗
11
9048016009
Grommet
Loading…
↗
12
6CB42647B0
-
Loading…
↗
13
9011108078
Bolt,hex. socket button
Loading…
↗
14
9038710094
Collar
Loading…
↗
15
9299008600
Washer, plain (663)
Loading…
↗
16
9038708M45
Coller (6f5)
Loading…
↗
17
9578008300
Nut, nylon (6j8)
Loading…
↗
18
6AW4266301
Damper 2
Loading…
↗
19
9299006100
Washer(6a1)
Loading…
↗
20
9538006600
Nut(661)
Loading…
↗
21
6KN4269700
Tuning fork mark
Loading…
↗
22
6LB4269700
Tuning fork mark
Loading…
↗
23
6CB4213401
Cover
Loading…
↗
24
6KK4267800
Graphic, rear
Loading…
↗
25
6KF4267A00
Graphic, rear 2
Loading…
↗
26
6KF4268200
Mark, cowling
Loading…
↗
27
6KF2153A00
Emblem, yamaha
Loading…
↗
