F25DMH (2017)
TOP COWLING

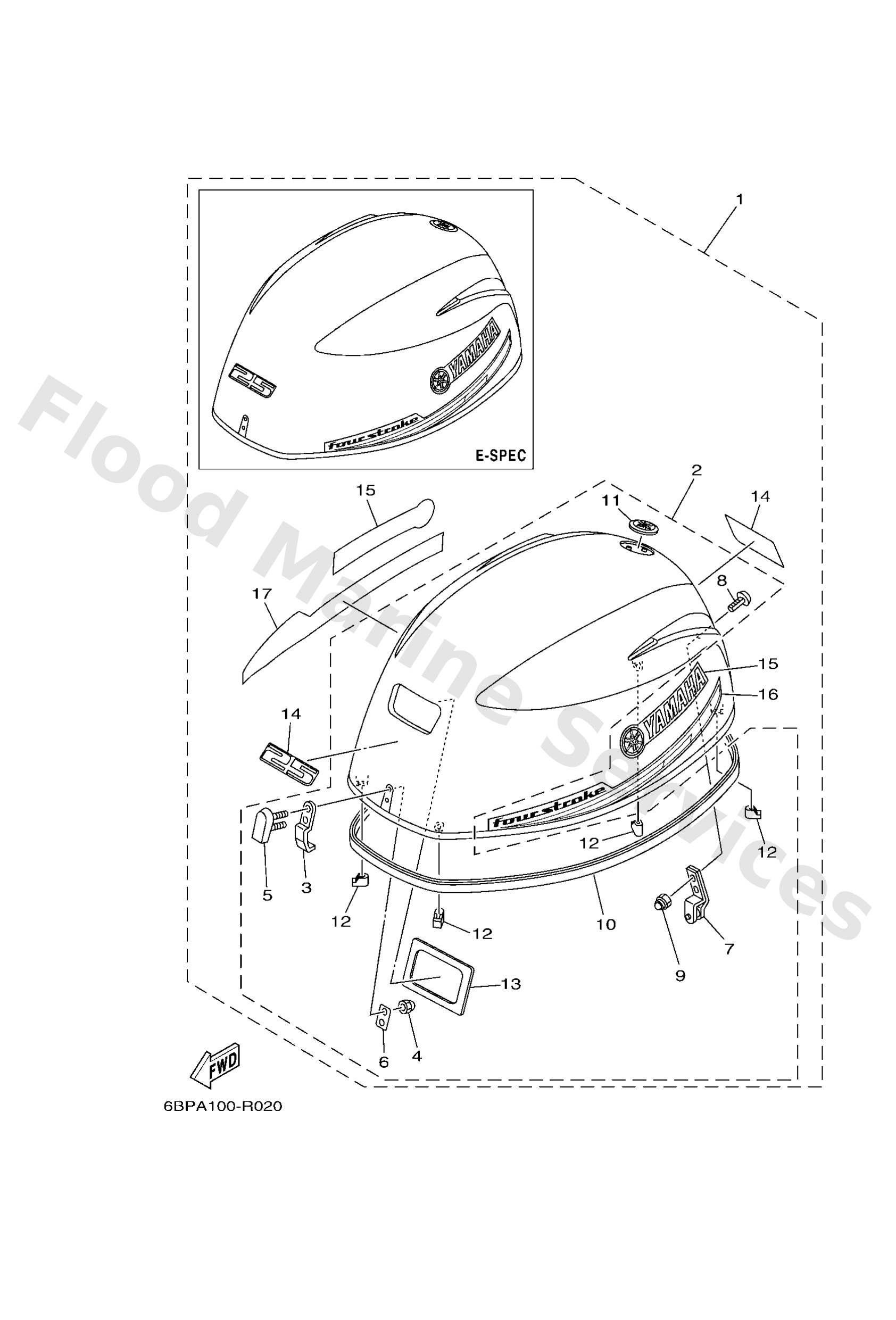

Diagram: TOP COWLING
Parts List
Reference
Description
Price
1
6BP4261042
Top cowling assembly
Loading…
↗
1
6BP4261051
Top cowling assembly
Loading…
↗
2
6BL4261A01
Top cowling w/o graphics
Loading…
↗
2
6BL4261A10
Top cowling w/o graphics
Loading…
↗
3
6BL4265100
Hook
Loading…
↗
4
9538005800
Nut(j44)
Loading…
↗
5
6BG4285100
Cover, clamp
Loading…
↗
6
6BG4264900
Holder, clamp band
Loading…
↗
7
6BL4265200
Hook
Loading…
↗
8
9010906047
Bolt
Loading…
↗
9
9018506M05
Nut, self-locking(6e9)
Loading…
↗
10
6CJ4261500
Seal
Loading…
↗
11
6AH4269710
Tuning fork mark
Loading…
↗
12
6BG4266200
Damper
Loading…
↗
13
6BL4265600
Protector, rubber seal
Loading…
↗
14
6BP4267710
Graphic, front
Loading…
↗
15
6BP4268100
Mark, cowling
Loading…
↗
16
6FM4267500
Graphic, side 1
Loading…
↗
17
6FM4267600
Graphic, side 2
Loading…
↗
