F300DET (2025)
TOP COWLING

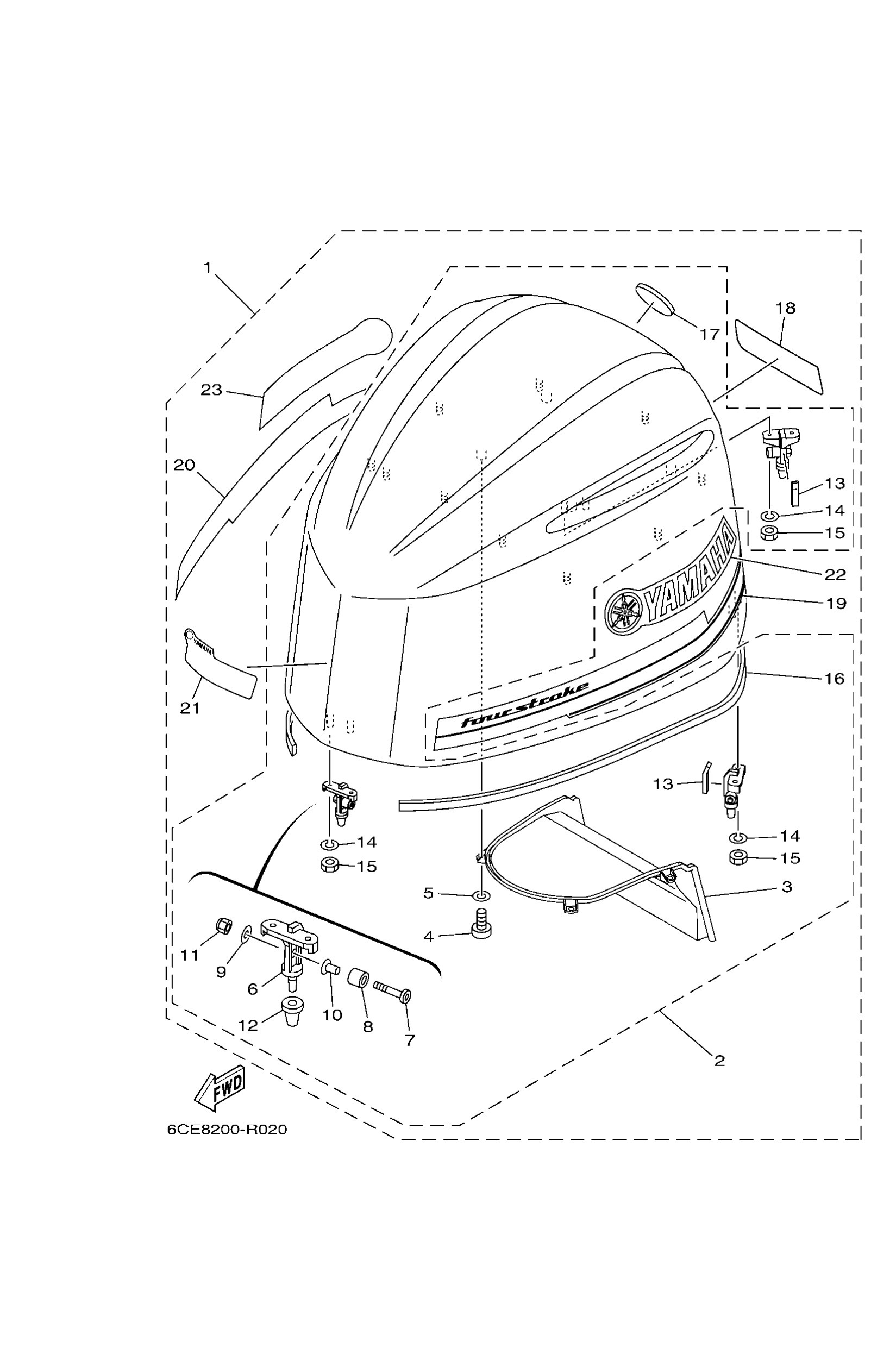

Diagram: TOP COWLING
Parts List
Reference
Description
Price
1
6CE4261003
Top cowling assembly
Loading…
↗
2
6CE4261A01
Top cowling w/o graphics
Loading…
↗
3
6CE4263500
Duct, water separator
Loading…
↗
4
9778060516
Screw, panhead tapping (j20)
Loading…
↗
5
9299006200
Ybs66-6 washer, plain
Loading…
↗
6
6CB42647B0
Holder, Clamp Band
Loading…
↗
7
9011108078
Bolt,hex. socket button
Loading…
↗
8
9038710094
Collar
Loading…
↗
9
9299008600
Washer, plain (663)
Loading…
↗
10
9038708M45
Coller (6f5)
Loading…
↗
11
9578008300
Nut, nylon (6j8)
Loading…
↗
12
6AW4266301
Damper 2
Loading…
↗
13
6CB4213401
Cover
Loading…
↗
14
9299006100
Washer(6a1)
Loading…
↗
15
9538006600
Nut(661)
Loading…
↗
16
6CB4262800
Seal
Loading…
↗
17
6KN4269700
Tuning fork mark
Loading…
↗
18
6CE4267802
Graphic, rear
Loading…
↗
19
6CE4267502
Graphic, side 1
Loading…
↗
20
6CE4267602
Graphic, side 2
Loading…
↗
21
6CE4267701
Graphic, front
Loading…
↗
22
6CE4268103
Mark, cowling
Loading…
↗
23
6CE4268203
Mark, cowling
Loading…
↗
