F40FED (2014)
TOP COWLING

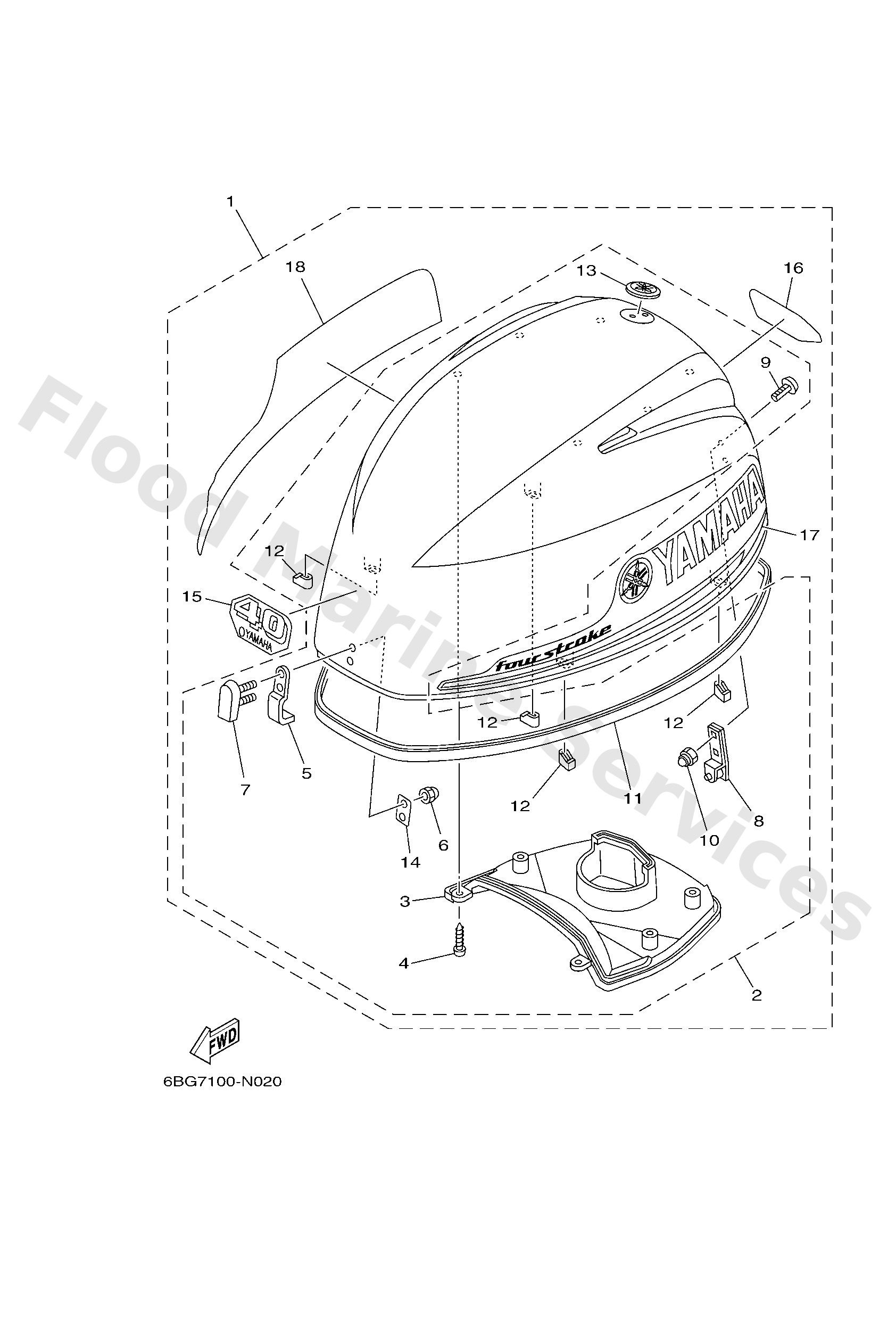

Diagram: TOP COWLING
Parts List
Reference
Description
Price
1
6BT4261002
F30B
Top cowling assembly
Loading…
↗
1
6BG4261002
F40F
Top cowling assembly
Loading…
↗
2
6BG4261A00
Top cowling w/o graphics
Loading…
↗
3
6BG4261300
Molding, air duct
Loading…
↗
4
9016705017
Screw, tapping
Loading…
↗
5
6BG4265100
Hook
Loading…
↗
6
9538005800
Nut(j44)
Loading…
↗
7
6BG4285100
Cover, clamp
Loading…
↗
8
6BG4265200
Hook
Loading…
↗
9
9010906047
Bolt
Loading…
↗
10
9018506M05
Nut, self-locking(6e9)
Loading…
↗
11
6BG4261500
Seal
Loading…
↗
12
6BG4266200
Damper
Loading…
↗
13
6AH4269710
Tuning fork mark
Loading…
↗
14
6BG4264900
Holder, clamp band
Loading…
↗
15
6BG4267710
F30B
Graphic, front
Loading…
↗
15
6BG4267700
F40F
Graphic, front
Loading…
↗
16
6BT4267801
F30B
Graphic, rear
Loading…
↗
16
6BG4267820
F40F
Graphic, rear
Loading…
↗
17
6BG4267500
Graphic, side 1
Loading…
↗
18
6BG4267600
Graphic, side 2
Loading…
↗
