F5AMH (2018)
TOP COWLING

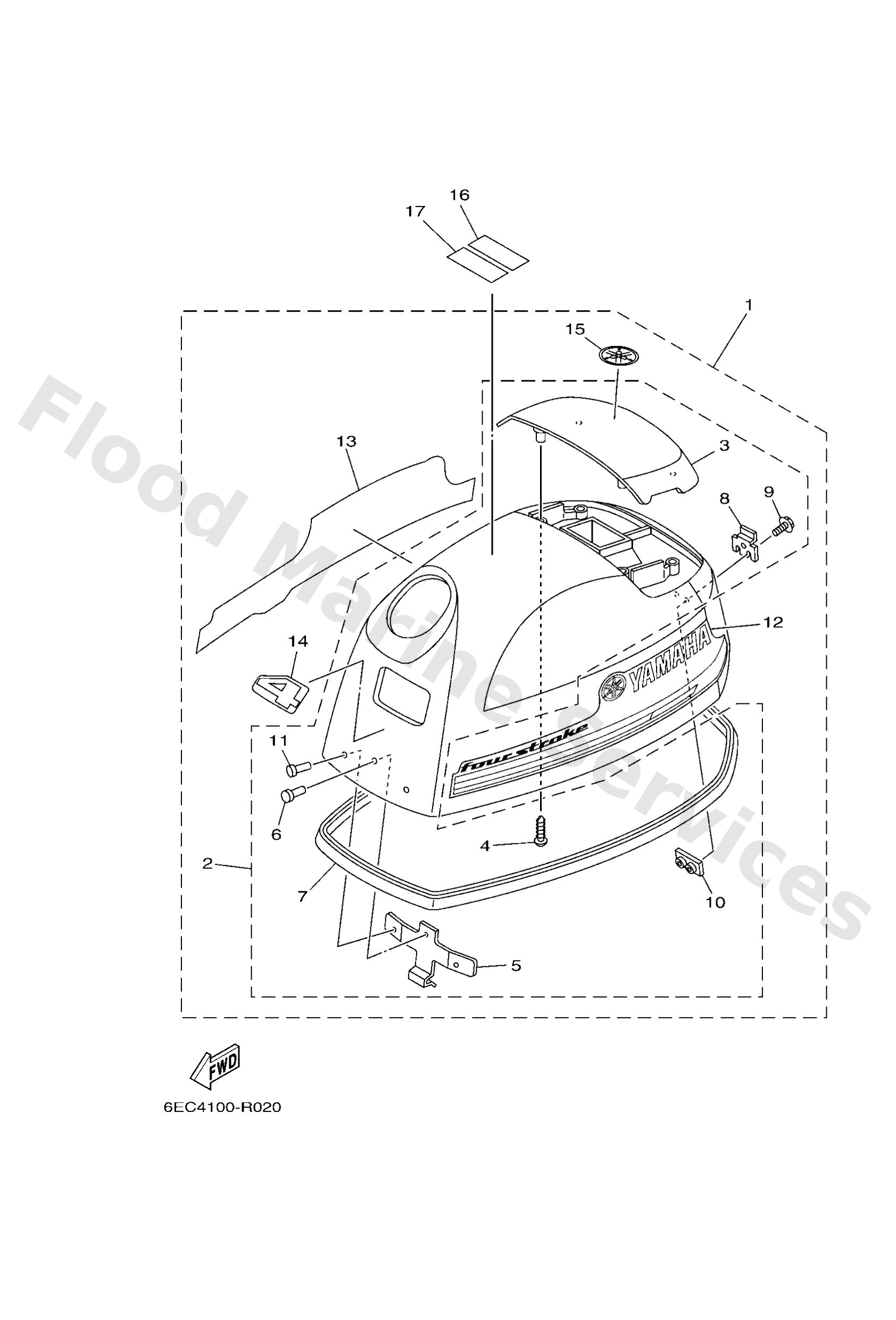

Diagram: TOP COWLING
Parts List
Reference
Description
Price
1
6EDG261001
Top cowling assembly
Loading…
↗
1
6EEG261001
Top cowling assembly
Loading…
↗
1
6ECG261001
Top cowling assembly
Loading…
↗
2
6ECG261A01
Top cowling w/o gr
Loading…
↗
3
6EEG261301
Molding, air duct
Loading…
↗
4
9778040012
Screw, trushead tapping (ge31)
Loading…
↗
5
6EEG265100
Hook
Loading…
↗
6
9026604M04
Rivet(6e7)
Loading…
↗
7
6BX4261500
Seal
Loading…
↗
8
6EEG265200
Hook
Loading…
↗
9
9759505514
Bolt, w/ plain
Loading…
↗
10
6EEG264900
Holder, clamp band
Loading…
↗
11
9026604M00
Rivet 2 (662)
Loading…
↗
12
6EEG267500
Graphic, side 1
Loading…
↗
13
6EEG267600
Graphic, side 2
Loading…
↗
14
6ECG267700
Graphic, front
Loading…
↗
14
6EDG267700
Graphic, front
Loading…
↗
14
6EEG267700
Graphic, front
Loading…
↗
15
6EEG269700
Tuning fork mark
Loading…
↗
16
6EEG269840
Label, warning (fu
Loading…
↗
17
6EEG269850
Label, warning (fu
Loading…
↗
