Yamaha Outboard Parts - TOP COWLING - FL115AET (2002) | Flood Marine

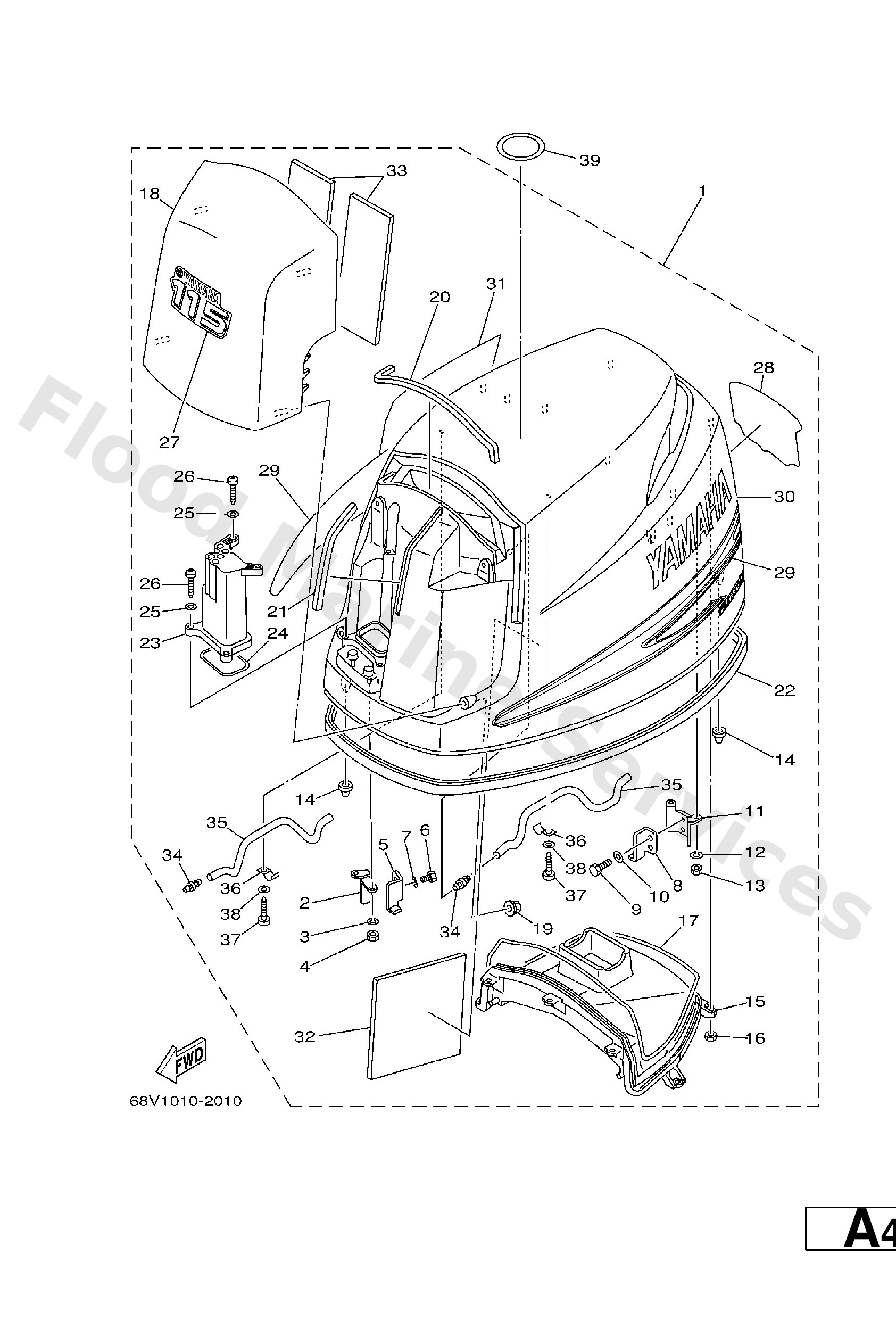

Diagram: TOP COWLING

Diagram

Parts List

Reference
Description
Price


1
68V−42610−10−8D
Top Cowling assembly
Loading…

↗
2
68V−42647−00
1−
Loading…

↗
3
92990−06100
Washer(6a1)
Loading…

↗
4
95380−06600
Nut(661)
Loading…

↗
5
68V−42651−00
Hook
Loading…

↗
6
97095−06012
Bolt(gh1)
Loading…

↗
7
92995−06600
Washer, plain (646)
Loading…

↗
8
68V−42652−00
Hook
Loading…

↗
11
67F−42649−00
Holder, clamp band
Loading…

↗
14
67F−42662−00
Damper
Loading…

↗
15
68V−42613−00
Molding, air duct
Loading…

↗
17
68V−42629−00
1−
Loading…

↗
18
68V−42612−00−8D
Air duct, top cowling
Loading…

↗
19
90179−06M28
Nut(63v)
Loading…

↗
20
68V−42628−00
Seal
Loading…

↗
21
68V−42718−00
Rubber, seal 3
Loading…

↗
22
68V−42615−00
Seal
Loading…

↗
23
68V−42632−00
Window
Loading…

↗
24
68V−42634−00
1−
Loading…

↗
25
92990−05200
Ybs66-5 washer, plain
Loading…

↗
26
97780−50625
Screw, tapping
Loading…

↗
27
68V−42677−10
Graphic, front
Loading…

↗
28
68V−42678−10
Graphic, front
Loading…

↗
29
68V−W0070−10
Graphic set
Loading…

↗
30
68V−42681−10
Mark, cowling
Loading…

↗
31
68V−42682−10
Mark, cowling
Loading…

↗
32
68V−42617−00
1−
Loading…

↗
33
68V−42619−00
Damper, form
Loading…

↗
34
6H3−44391−01
Nipple, hose
Loading…

↗
35
90445−10M18
Hose (l400)
Loading…

↗
36
90465−08M63
Clamp(61u)
Loading…

↗
37
97780−50620
Screw, tapping
Loading…

↗
39
67F−13434−02
Label, Caution
Loading…

↗
