FL115AET (2005)
TOP COWLING

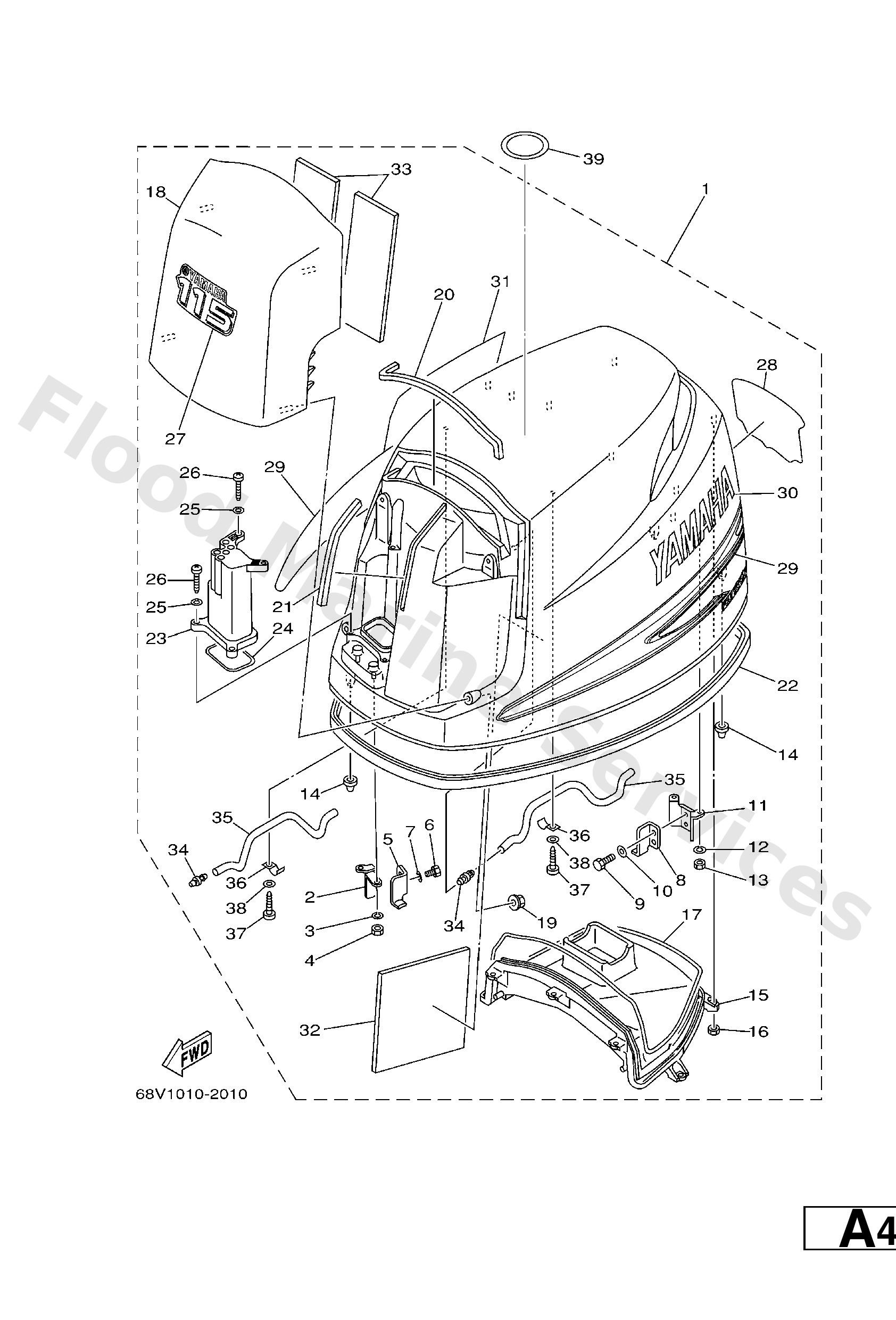

Diagram: TOP COWLING
Parts List
Reference
Description
Price
1
68V42610108D
-
Loading…
↗
2
68V4264700
-
Loading…
↗
3
9299006100
Washer(6a1)
Loading…
↗
4
9538006600
Nut(661)
Loading…
↗
5
68V4265100
Hook
Loading…
↗
6
9709506012
Bolt(gh1)
Loading…
↗
7
9299506600
Washer, plain (646)
Loading…
↗
8
68V4265200
Hook
Loading…
↗
11
67F4264900
Holder, clamp band
Loading…
↗
14
67F4266200
Damper
Loading…
↗
15
68V4261300
Molding, air duct
Loading…
↗
17
68V4262900
-
Loading…
↗
18
68V42612008D
Air duct, top cowling
Loading…
↗
19
9017906M28
Nut(63v)
Loading…
↗
20
68V4262800
Seal
Loading…
↗
21
68V4271800
Rubber, seal 3
Loading…
↗
22
68V4261500
Seal
Loading…
↗
23
68V4263200
Window
Loading…
↗
24
68V4263400
-
Loading…
↗
25
9299005200
Ybs66-5 washer, plain
Loading…
↗
26
9778050625
Screw, tapping
Loading…
↗
27
68V4267710
Graphic, front
Loading…
↗
28
68V4267810
Graphic, front
Loading…
↗
29
68VW007010
Graphic set
Loading…
↗
30
68V4268110
Mark, cowling
Loading…
↗
31
68V4268210
Mark, cowling
Loading…
↗
32
68V4261700
-
Loading…
↗
33
68V4261900
Damper, form
Loading…
↗
34
6H34439101
Nipple, hose
Loading…
↗
35
9044510M18
Hose (l400)
Loading…
↗
36
9046508M63
Clamp(61u)
Loading…
↗
37
9778050620
Screw, tapping
Loading…
↗
39
67F1343402
Label, Caution
Loading…
↗
