FL150AET (2004)
TOP COWLING

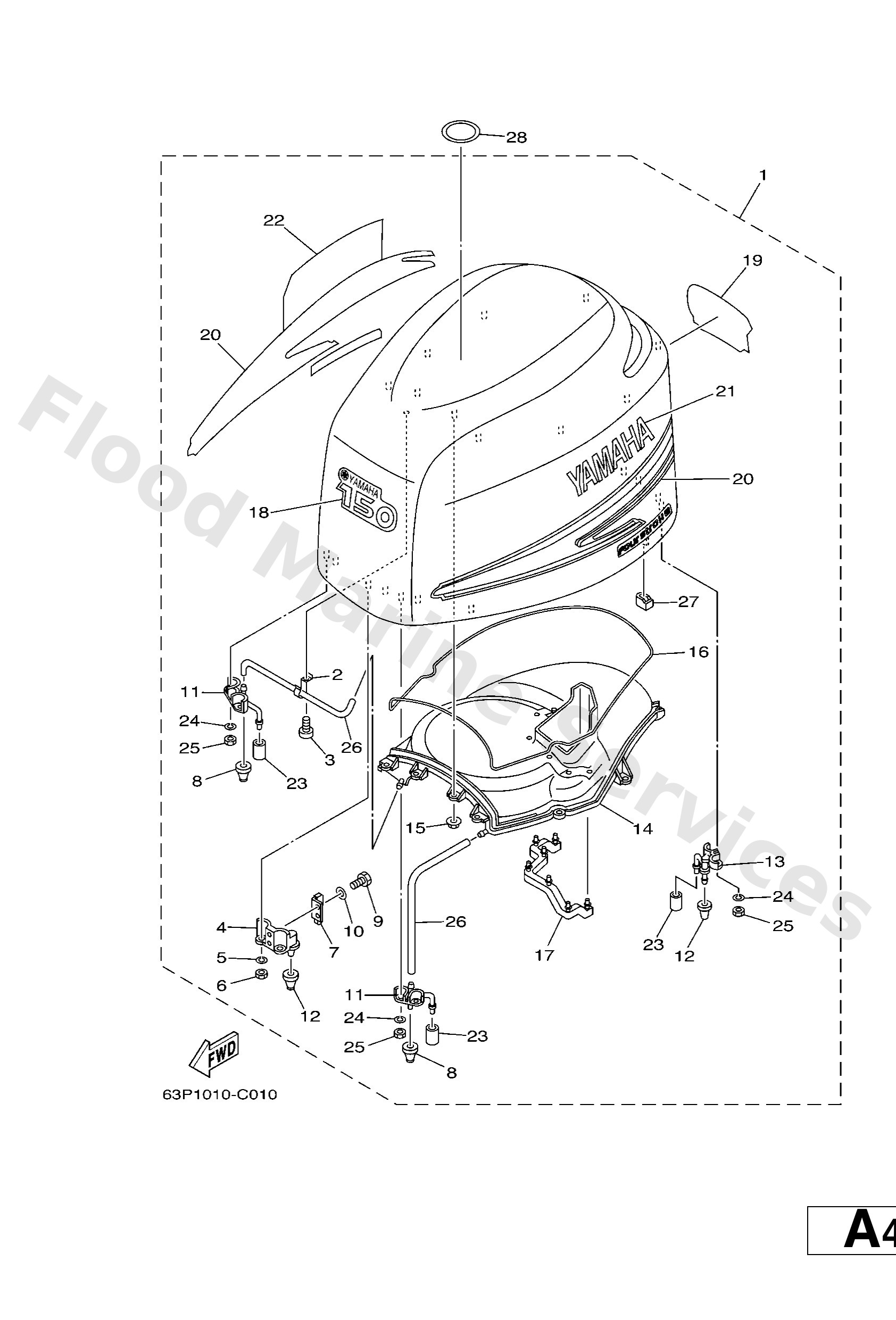

Diagram: TOP COWLING
Parts List
Reference
Description
Price
1
63P42610008D
Top cowling assembly
Loading…
↗
2
9046510032
Clamp
Loading…
↗
3
9778050620
Screw, tapping
Loading…
↗
4
63P426470094
Holder, clamp band
Loading…
↗
5
9299006100
Washer(6a1)
Loading…
↗
6
9538006600
Nut(661)
Loading…
↗
7
60V4265101
Hook
Loading…
↗
8
69J4266300
Damper 2
Loading…
↗
9
9709506016
Bolt, hexagon deep recess
Loading…
↗
10
9299506600
Washer, plain (646)
Loading…
↗
11
63P426430094
Plate, clamp
Loading…
↗
12
68F4266300
Damper 2
Loading…
↗
13
63P426440094
Plate, clamp 2
Loading…
↗
14
63P4261300
Molding, air duct
Loading…
↗
15
9017906M24
Nut(6j8)
Loading…
↗
16
63P4262900
Seal
Loading…
↗
17
63P4261700
Damper, form
Loading…
↗
18
63P4267700
Graphic, front
Loading…
↗
19
63P4267800
Graphic, rear
Loading…
↗
20
63PW007000
Graphic set
Loading…
↗
21
63P4268100
Mark, cowling
Loading…
↗
22
63P4268200
Mark, cowling
Loading…
↗
23
67F1344800
Cap
Loading…
↗
26
9044511020
Hose (l400)
Loading…
↗
27
63P4266200
Damper
Loading…
↗
28
67F1343402
Label, Caution
Loading…
↗
