FL200BET (2025)
TOP COWLING

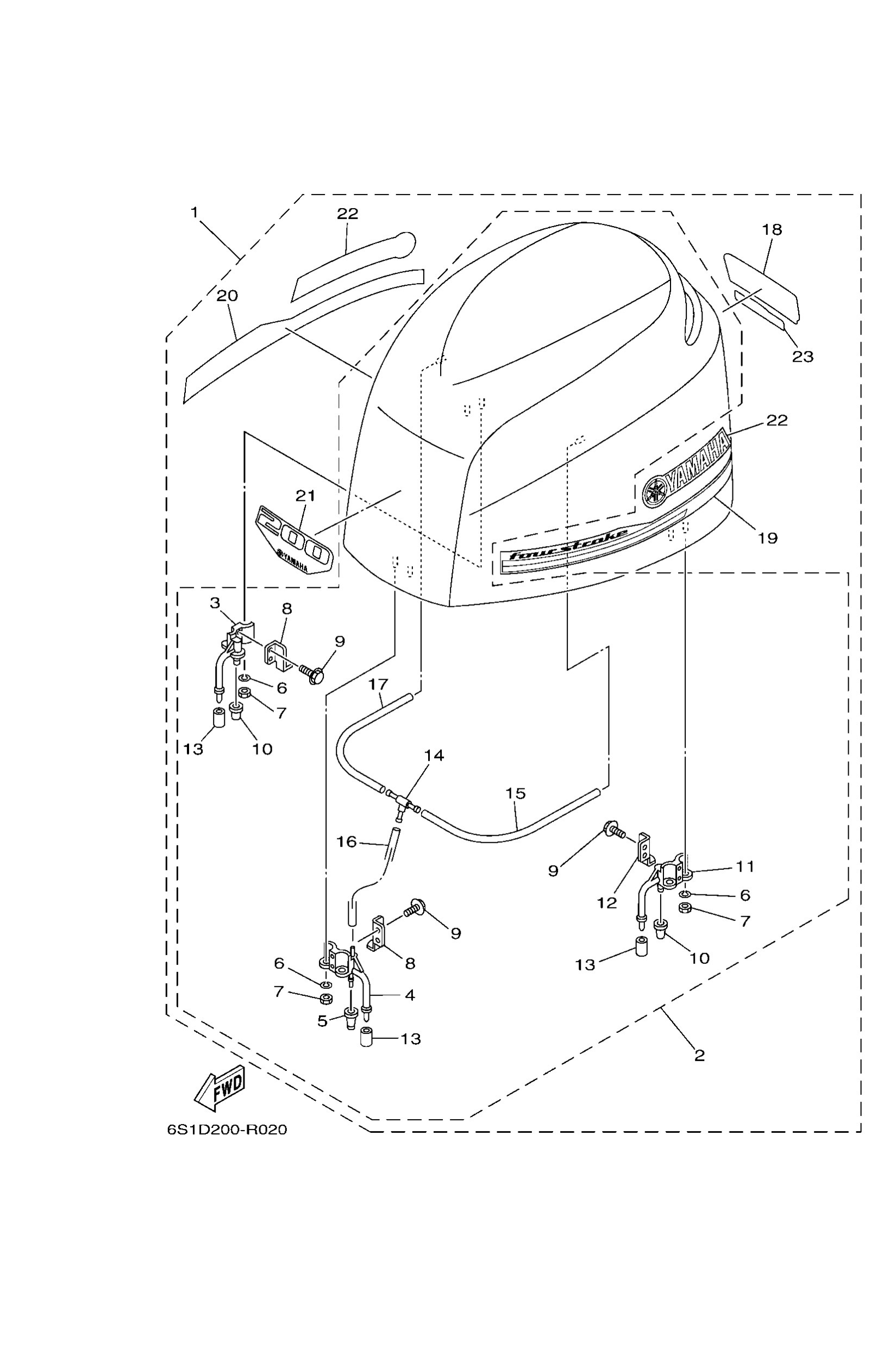

Diagram: TOP COWLING
Parts List
Reference
Description
Price
1
6S14261012
Top cowling assembly
Loading…
↗
2
6P24261A02
Top cowling w/o graphics
Loading…
↗
3
68F4264701
Holder, clamp band
Loading…
↗
4
69J4264701
Holder, clamp band
Loading…
↗
5
69J4266301
Damper 2
Loading…
↗
6
9299006100
Washer(6a1)
Loading…
↗
7
9538006600
Nut(661)
Loading…
↗
8
60V4265101
Hook
Loading…
↗
9
97E9506516
Bolt, hexagon w/w deep recess
Loading…
↗
10
68F4266301
Damper 2
Loading…
↗
11
68F4264801
Holder, clamp band
Loading…
↗
12
60V4265200
Hook
Loading…
↗
13
67F1344800
Cap
Loading…
↗
14
69J2437800
Pipe, joint 4
Loading…
↗
15
9044511M27
Hose (l700)
Loading…
↗
16
9044511699
Hose (l800)
Loading…
↗
17
9044511182
Hose (l370)
Loading…
↗
18
6S14267801
Graphic, rear
Loading…
↗
19
6S14267501
Graphic, side 1
Loading…
↗
20
6S14267601
Graphic, side 2
Loading…
↗
21
6S14267701
Graphic, front
Loading…
↗
22
6S14268101
Mark, cowling
Loading…
↗
23
6S14267A01
Graphic, rear 2
Loading…
↗
