FL200CET (2015)
TOP COWLING

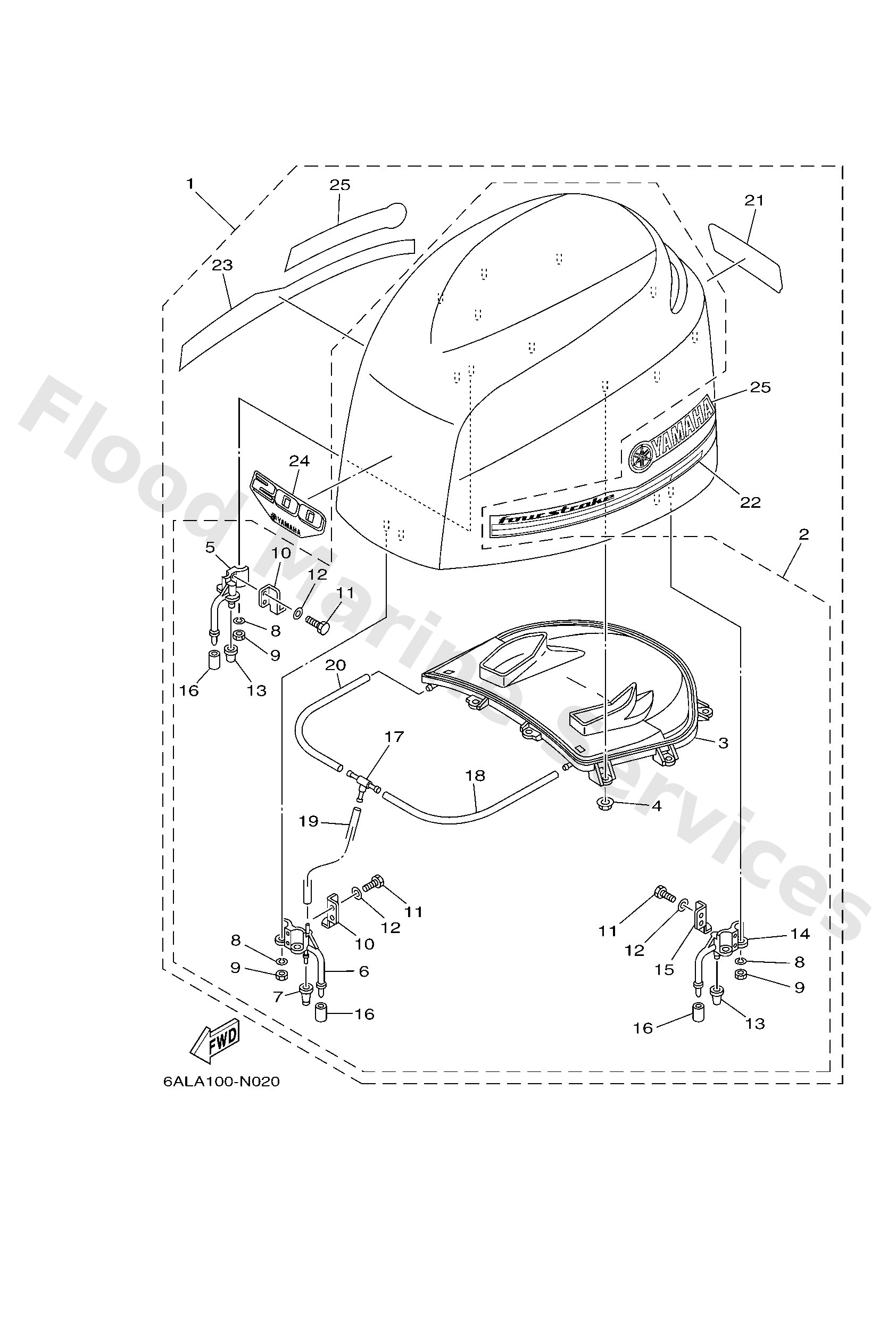

Diagram: TOP COWLING
Parts List
Reference
Description
Price
1
6AS4261020
Top cowling assembly
Loading…
↗
1
6AL4261020
Top cowling assembly
Loading…
↗
2
6P24261A00
Top cowling w/o graphics
Loading…
↗
3
6P24261300
Molding, air duct
Loading…
↗
4
9017906M28
Nut(63v)
Loading…
↗
5
68F4264701
Holder, clamp band
Loading…
↗
6
69J4264701
Holder, clamp band
Loading…
↗
7
69J4266300
Damper 2
Loading…
↗
8
9299006100
Washer(6a1)
Loading…
↗
9
9538006600
Nut(661)
Loading…
↗
10
60V4265101
Hook
Loading…
↗
11
9709506016
Bolt, hexagon deep recess
Loading…
↗
12
9299506600
Washer, plain (646)
Loading…
↗
13
68F4266300
Damper 2
Loading…
↗
14
68F4264801
Holder, clamp band
Loading…
↗
15
60V4265200
Hook
Loading…
↗
16
67F1344800
Cap
Loading…
↗
17
69J2437800
Pipe, joint 4
Loading…
↗
18
9044511M27
Hose (l700)
Loading…
↗
19
9044511699
Hose (l800)
Loading…
↗
20
9044511182
Hose (l370)
Loading…
↗
21
6AL4267810
Graphic, rear
Loading…
↗
21
6AS4267810
Graphic, rear
Loading…
↗
22
6AS4267500
Graphic, side 1
Loading…
↗
23
6AS4267600
Graphic, side 2
Loading…
↗
24
6AL4267700
Graphic, front
Loading…
↗
24
6AS4267700
Graphic, front
Loading…
↗
25
63P4268120
Mark, cowling
Loading…
↗
