Yamaha Outboard Parts - TOP COWLING - FL225BET (2007) | Flood Marine

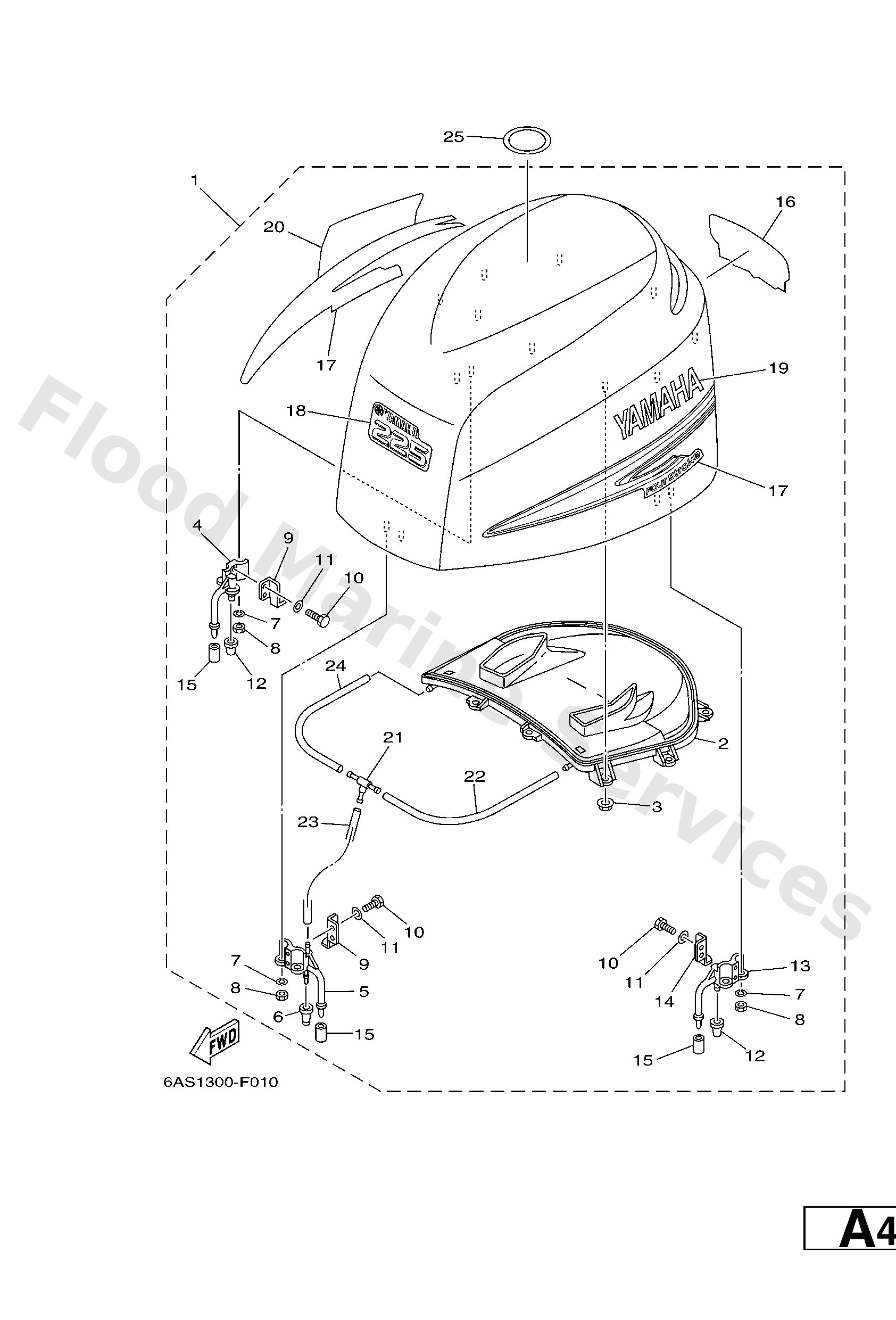

Diagram: TOP COWLING

Diagram

Parts List

Reference
Description
Price


1
6AS42610008D
-
Loading…

↗
2
6P24261300
Molding, air duct
Loading…

↗
3
9017906M28
Nut(63v)
Loading…

↗
4
68F426470194
Holder, clamp band
Loading…

↗
5
69J426470094
Holder, clamp band
Loading…

↗
6
69J4266300
Damper 2
Loading…

↗
7
9299006100
Washer(6a1)
Loading…

↗
8
9538006600
Nut(661)
Loading…

↗
9
60V4265101
Hook
Loading…

↗
10
9709506016
Bolt, hexagon deep recess
Loading…

↗
11
9299506600
Washer, plain (646)
Loading…

↗
12
68F4266300
Damper 2
Loading…

↗
13
68F426480194
Holder, clamp band
Loading…

↗
14
60V4265200
Hook
Loading…

↗
15
67F1344800
Cap
Loading…

↗
16
69J4267800
Graphic, rear
Loading…

↗
17
69JW007000
Graphic set
Loading…

↗
18
69J4267700
Graphic, front
Loading…

↗
19
69J4268100
Mark, cowling
Loading…

↗
20
69J4268200
Mark, cowling
Loading…

↗
21
69J2437800
Pipe, joint 4
Loading…

↗
22
9044511M27
Hose (l700)
Loading…

↗
23
9044511699
Hose (l800)
Loading…

↗
24
9044511182
Hose (l370)
Loading…

↗
25
67F1343403
Label, Caution
Loading…

↗
