Yamaha Outboard Parts - TOP COWLING - FL225FET (2014) | Flood Marine

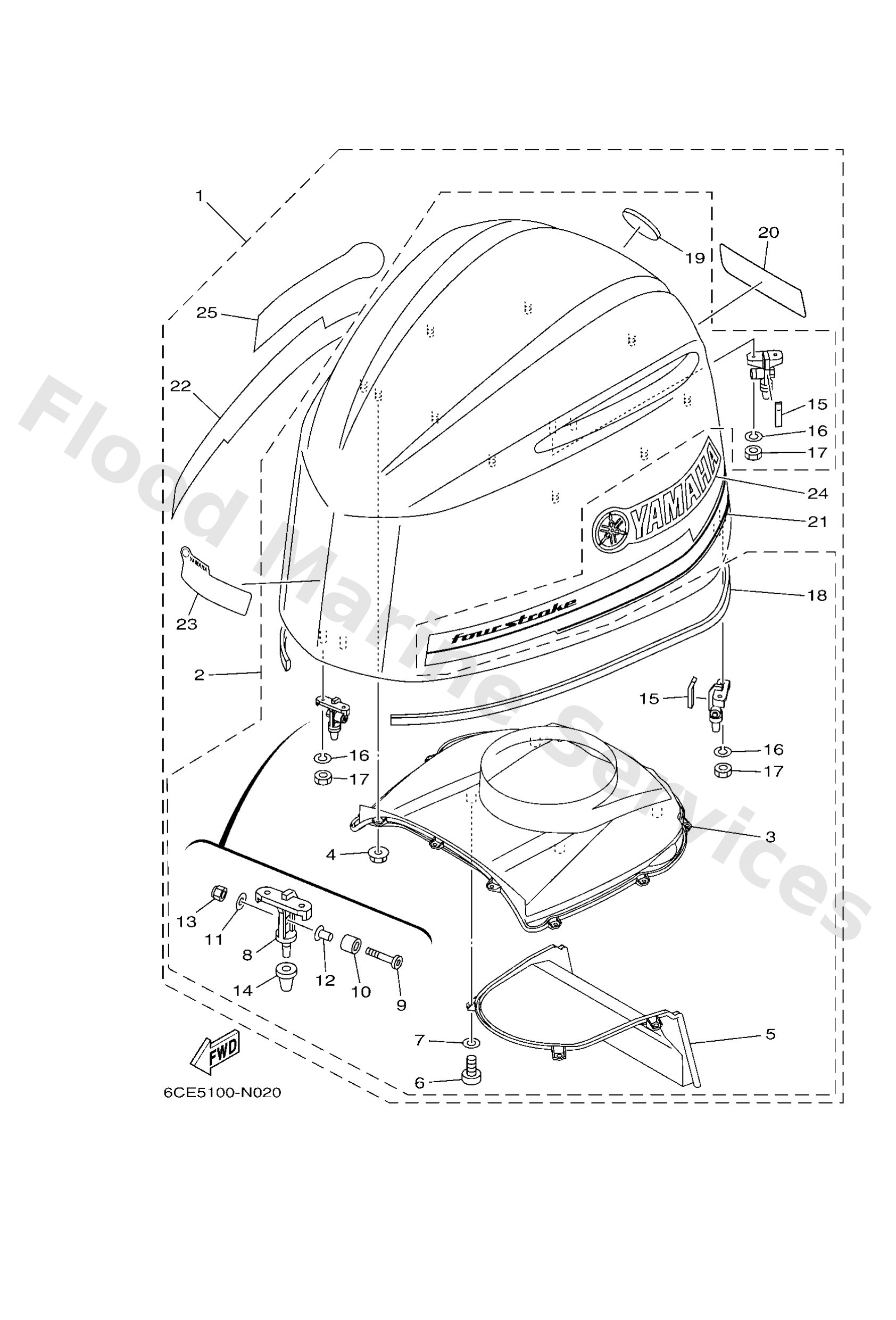

Diagram: TOP COWLING

Diagram

Parts List

Reference
Description
Price


1
6CL4261001
Top cowling assembly (6cl)
Loading…

↗
2
6CE4261A00
Top cowling w/o graphics (6ce)
Loading…

↗
3
6CE4261300
Molding, air duct
Loading…

↗
4
9017906M28
Nut(63v)
Loading…

↗
5
6CE4263500
Duct, water separator
Loading…

↗
6
9778060516
Screw, panhead tapping (j20)
Loading…

↗
7
9299006200
Ybs66-6 washer, plain
Loading…

↗
8
6CB4264700
Holder, clamp band
Loading…

↗
9
9011108078
Bolt,hex. socket button
Loading…

↗
10
9038710094
Collar
Loading…

↗
11
9299008600
Washer, plain (663)
Loading…

↗
12
9038708M45
Coller (6f5)
Loading…

↗
13
9578008300
Nut, nylon (6j8)
Loading…

↗
14
6AW4266300
Damper 2
Loading…

↗
15
6CB4213400
Cover
Loading…

↗
16
9299006100
Washer(6a1)
Loading…

↗
17
9538006600
Nut(661)
Loading…

↗
18
6CB4262800
Seal
Loading…

↗
19
6AW4269710
Tuning fork mark
Loading…

↗
20
6CL4267801
Graphic, rear
Loading…

↗
21
6CE4267501
Graphic, side 1
Loading…

↗
22
6CE4267601
Graphic, side 2
Loading…

↗
23
6CL4267700
Graphic, front
Loading…

↗
24
6CE4268102
Mark, cowling
Loading…

↗
25
6CE4268202
Mark, cowling
Loading…

↗
