Yamaha Outboard Parts - TOP COWLING - FL350AET (2014) | Flood Marine

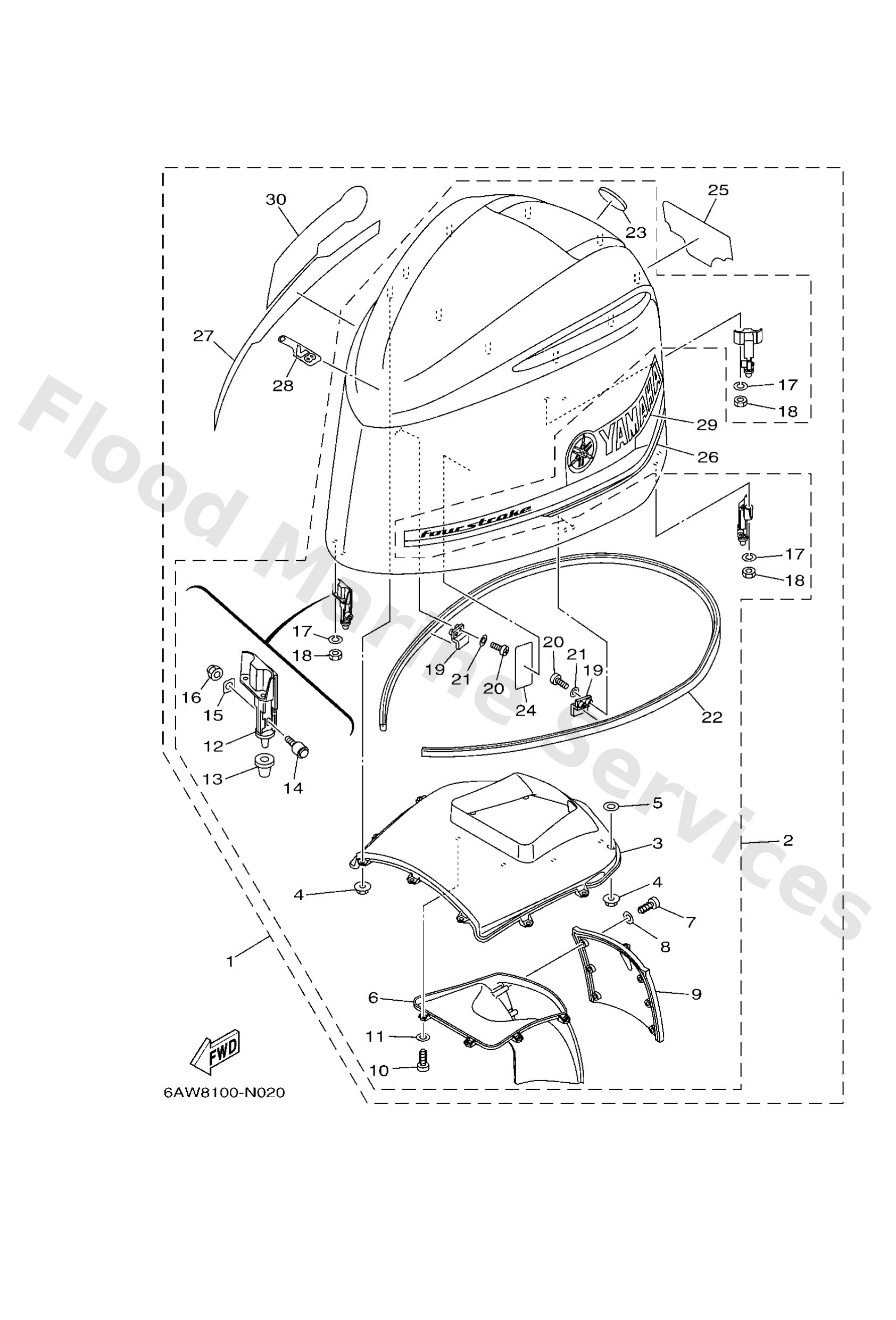

Diagram: TOP COWLING

Diagram

Parts List

Reference
Description
Price


1
6AW4261020
Top cowling assembly
Loading…

↗
2
6AW4261A00
Top cowling w/o graphics
Loading…

↗
3
6AW4261300
Molding, air duct
Loading…

↗
4
9017906M28
Nut(63v)
Loading…

↗
5
6CB4254500
Washer, plain
Loading…

↗
6
6AW4263500
Duct, water separator
Loading…

↗
7
9778060516
Screw, panhead tapping (j20)
Loading…

↗
8
9299506200
Ybs66-6 washer, plain
Loading…

↗
9
6AW4253200
Cover
Loading…

↗
12
6AW42647009S
Holder, clamp band
Loading…

↗
13
6AW4266300
Damper 2
Loading…

↗
14
6AW4264A00
Hook assembly
Loading…

↗
15
6AW4264610
Plate, clamp
Loading…

↗
16
9578008300
Nut, nylon (6j8)
Loading…

↗
17
9299006100
Washer(6a1)
Loading…

↗
18
9538006600
Nut(661)
Loading…

↗
19
6AW4247700
Plate, lock
Loading…

↗
20
9788505010
Screw, pan head(62x)
Loading…

↗
21
9299505600
Washer, plain (646)
Loading…

↗
22
6AW4262820
Seal
Loading…

↗
23
6AW4269710
Tuning fork mark
Loading…

↗
24
6AH4273500
Protector
Loading…

↗
25
6AW4267800
Graphic, rear
Loading…

↗
26
6AW4267500
Graphic, side 1
Loading…

↗
27
6AW4267600
Graphic, side 2
Loading…

↗
28
6AW4267700
Graphic, front
Loading…

↗
29
6AW4268100
Mark, cowling
Loading…

↗
30
6AW4268200
Mark, cowling
Loading…

↗
