Yamaha Outboard Parts - TOP COWLING - FL350AET (2019) | Flood Marine

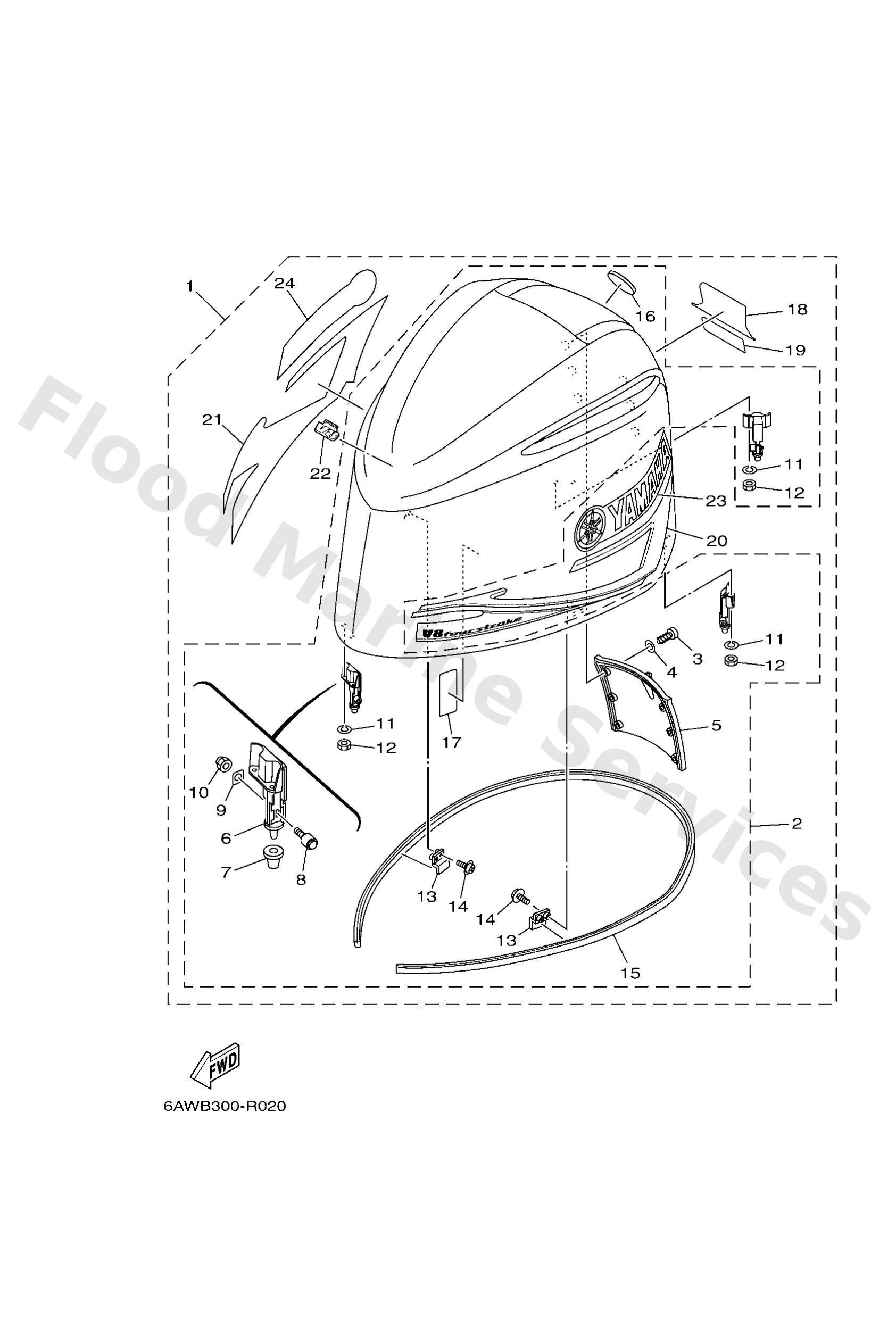

Diagram: TOP COWLING

Diagram

Parts List

Reference
Description
Price


1
6AW4261030
Top cowling assembly
Loading…

↗
2
6AW4261A00
Top cowling w/o graphics
Loading…

↗
3
9778060516
Screw, panhead tapping (j20)
Loading…

↗
4
9299506200
Ybs66-6 washer, plain
Loading…

↗
5
6AW4253200
Cover
Loading…

↗
6
6AW42647009S
Holder, clamp band
Loading…

↗
7
6AW4266300
Damper 2
Loading…

↗
8
6AW4264A00
Hook assembly
Loading…

↗
9
6AW4264610
Plate, clamp
Loading…

↗
10
9578008300
Nut, nylon (6j8)
Loading…

↗
11
9299006100
Washer(6a1)
Loading…

↗
12
9538006600
Nut(661)
Loading…

↗
13
6AW4247700
Plate, lock
Loading…

↗
14
9798505210
Screw, With Washer
Loading…

↗
15
6AW4262820
Seal
Loading…

↗
16
6AW4269710
Tuning fork mark
Loading…

↗
17
6AH4273500
Protector
Loading…

↗
18
6AW4267810
Graphic, rear
Loading…

↗
19
6AW4267A00
Graphic, rear 2
Loading…

↗
20
6AW4267510
Graphic, side 1
Loading…

↗
21
6AW4267610
Graphic, side 2
Loading…

↗
22
6AW4267710
Graphic, front
Loading…

↗
23
6AW4268110
Mark, cowling
Loading…

↗
24
6AW4268210
Mark, cowling
Loading…

↗
