Yamaha Outboard Parts - TOP COWLING - FT25BET (2003) | Flood Marine

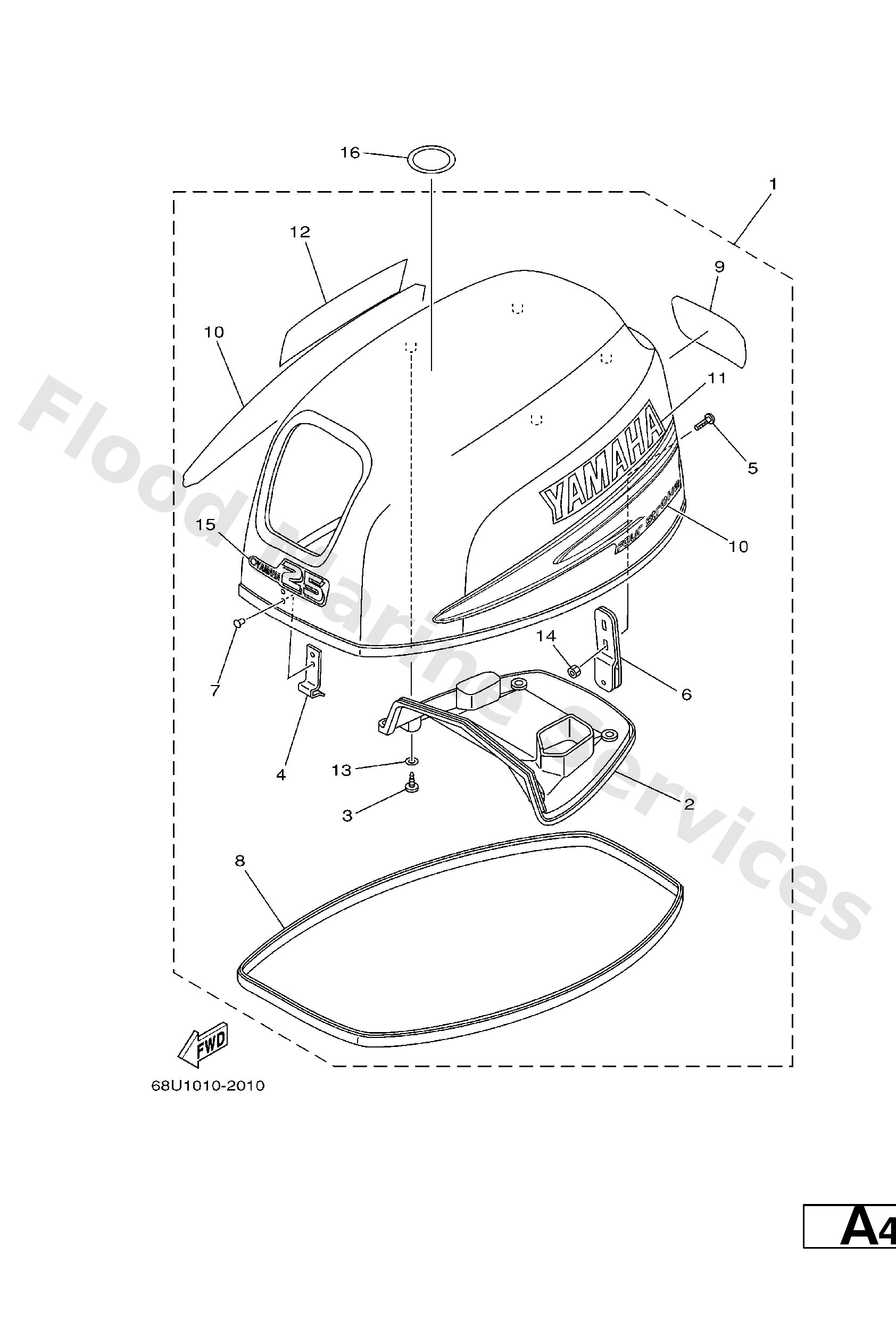

Diagram: TOP COWLING

Diagram

Parts List

Reference
Description
Price


1
68U−42610−10−4D
Top Cowling assembly
Loading…

↗
2
65W−42613−00
Molding, Air Duct
Loading…

↗
3
97780−60520
Screw, tapping(6k8)
Loading…

↗
4
65W−42651−00
Hook
Loading…

↗
5
90109−06MA4
Bolt
Loading…

↗
6
65W−42652−00
Hook
Loading…

↗
7
90266−04M04
Rivet(6e7)
Loading…

↗
8
65W−42615−01
Seal
Loading…

↗
9
68U−42678−10
Graphic, front
Loading…

↗
10
65W−W0070−20
Graphic set
Loading…

↗
11
65W−42681−20
Mark, cowling
Loading…

↗
12
65W−42682−20
Mark, cowling
Loading…

↗
13
90202−05M38
Washer, plate(6l2)
Loading…

↗
14
95680−06100
U-nut (6a5)
Loading…

↗
15
65W−42677−00
Graphic, front
Loading…

↗
16
67F−13434−02
Label, Caution
Loading…

↗
