Yamaha Outboard Parts - TOP COWLING - FT25BET (2008) | Flood Marine

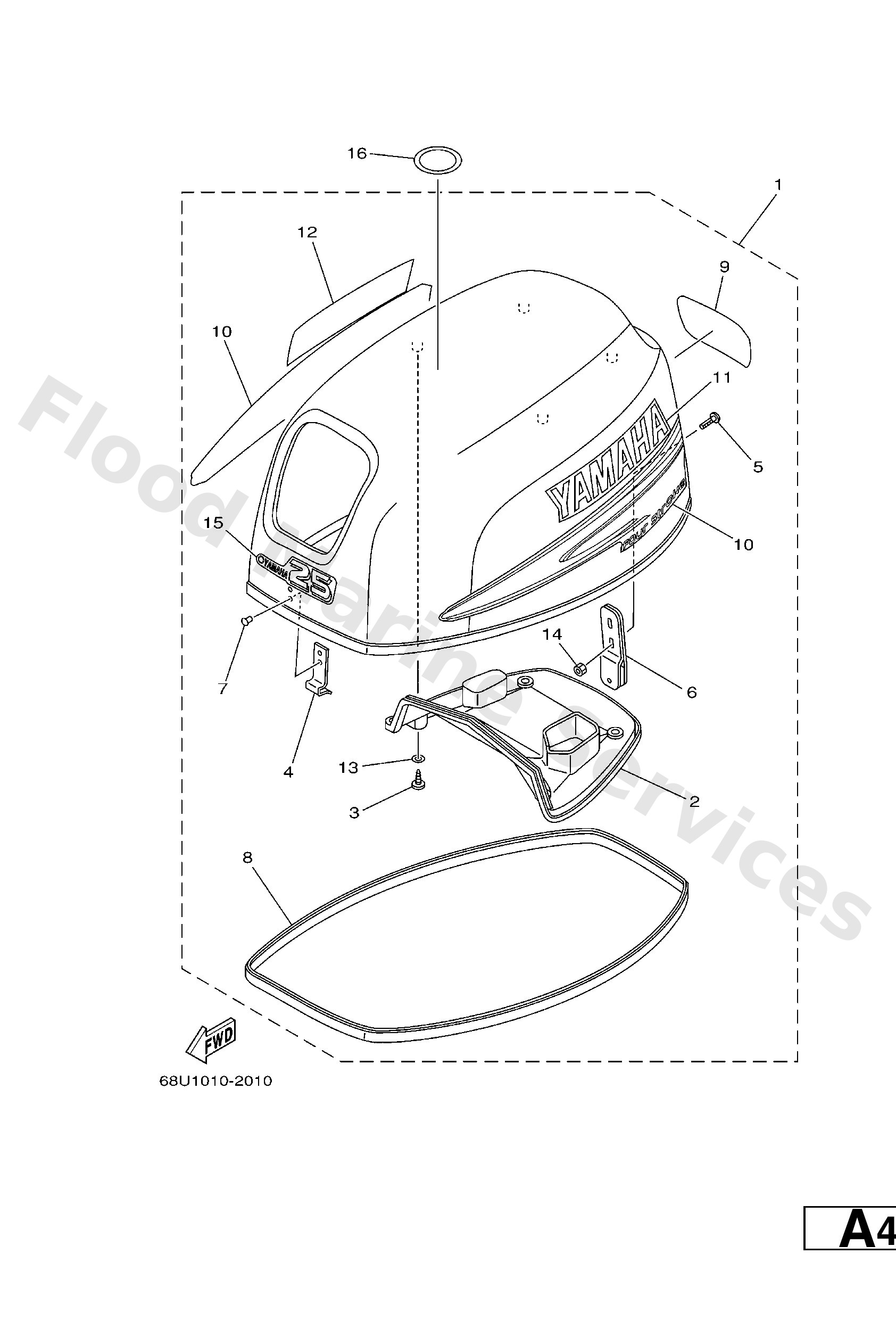

Diagram: TOP COWLING

Diagram

Parts List

Reference
Description
Price


1
68U42610124D
Top cowling assembly
Loading…

↗
2
65W4261300
Molding, Air Duct
Loading…

↗
3
9778060520
Screw, tapping(6k8)
Loading…

↗
4
65W4265101
Hook
Loading…

↗
5
9010906MA4
Bolt
Loading…

↗
6
65W4265201
Hook
Loading…

↗
7
9026606M02
Rivet (697)
Loading…

↗
8
6D54261500
Seal
Loading…

↗
9
68U4267810
Graphic, front
Loading…

↗
10
65WW007020
Graphic set
Loading…

↗
11
65W4268120
Mark, cowling
Loading…

↗
12
65W4268220
Mark, cowling
Loading…

↗
13
9020205M38
Washer, plate(6l2)
Loading…

↗
14
9568006100
U-nut (6a5)
Loading…

↗
15
65W4267700
Graphic, front
Loading…

↗
16
67F1343403
ラベル , コーシヨン
Loading…

↗
