FT25FET (2009)
TOP COWLING

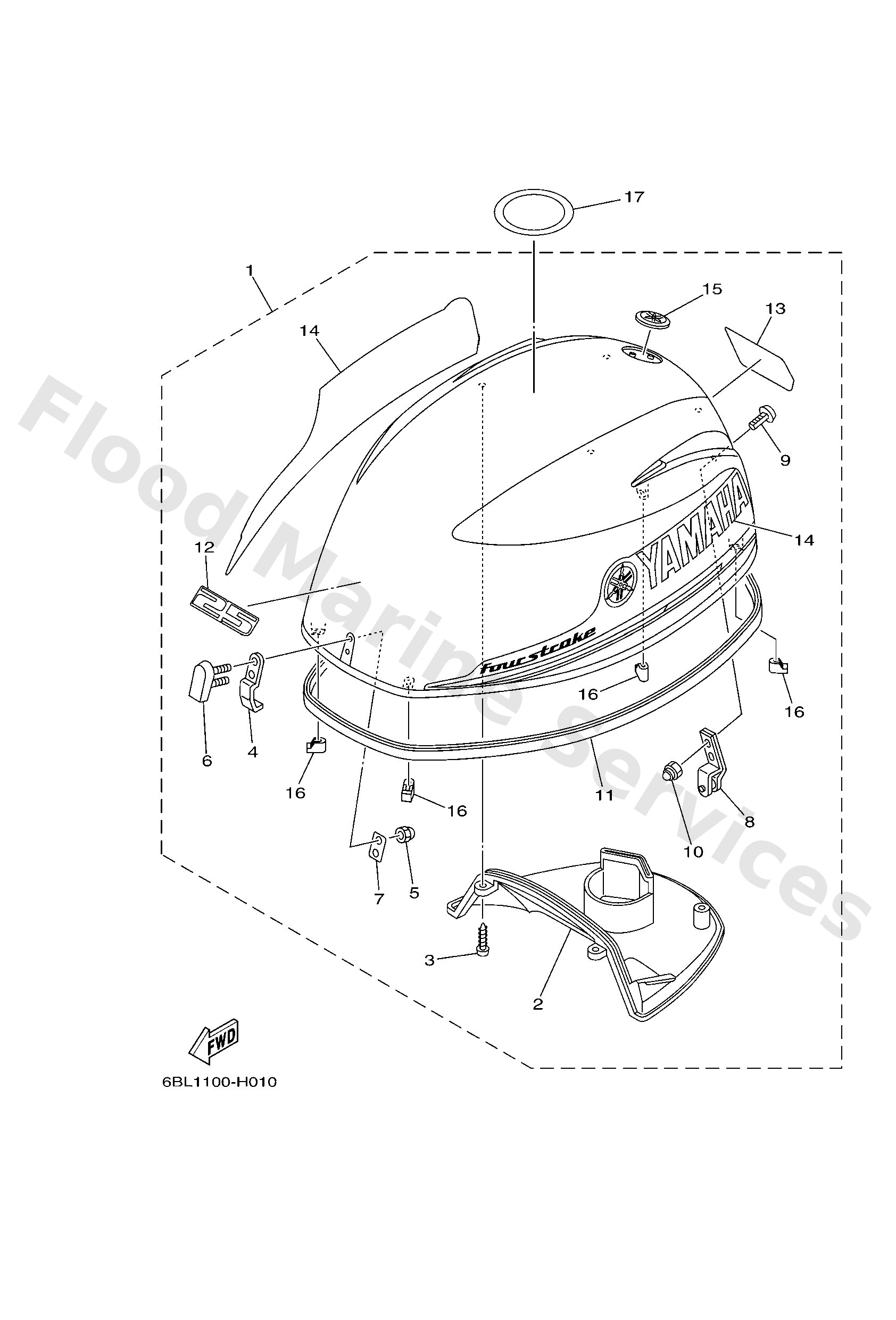

Diagram: TOP COWLING
Parts List
Reference
Description
Price
1
6BL42610104D
Top Cowling assembly
Loading…
↗
2
6BL4261300
Molding, air duct
Loading…
↗
3
9778050616
Screw, pan head tapping (ak5)
Loading…
↗
4
6BL4265100
Hook
Loading…
↗
5
9538005800
Nut(j44)
Loading…
↗
6
6BG4285100
Cover, clamp
Loading…
↗
7
6BG4264900
Holder, clamp band
Loading…
↗
8
6BL4265200
Hook
Loading…
↗
9
9010906047
Bolt
Loading…
↗
10
9018506M05
Nut, self-locking(6e9)
Loading…
↗
11
6BL4261500
Seal
Loading…
↗
12
6BP4267700
Graphic, front
Loading…
↗
13
6BL4267800
Graphic, rear
Loading…
↗
14
6BPW007000
Graphic Set
Loading…
↗
15
6AH4269701
Tuning fork mark
Loading…
↗
16
6BG4266200
Damper
Loading…
↗
17
67F1343410
ラベル , コーシヨン
Loading…
↗
