Yamaha Outboard Parts - TOP COWLING - FT25FET (2013) | Flood Marine
New Search
Parts
New Outboards
Home
FT25FET (2013)
TOP COWLING

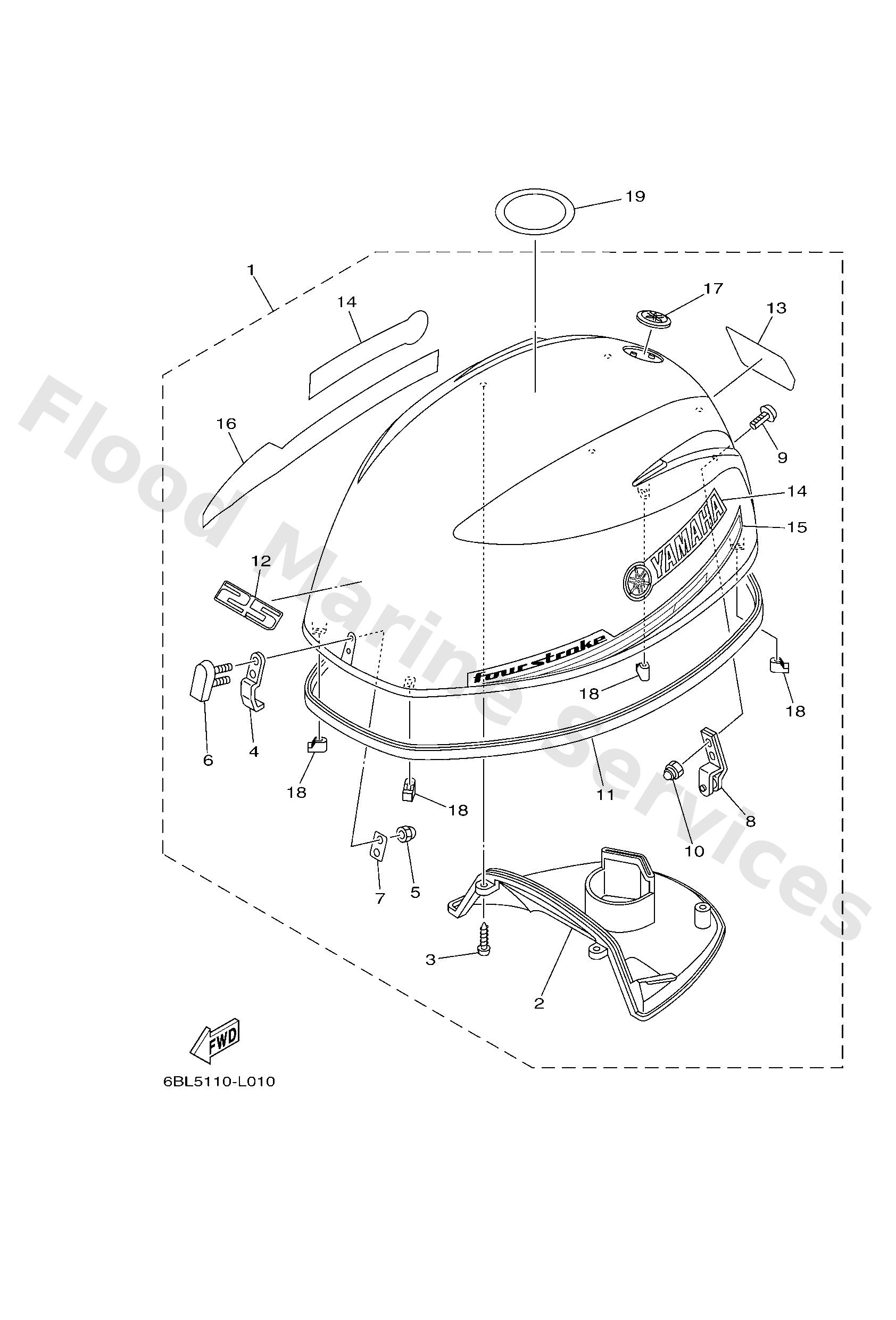

Diagram: TOP COWLING
Parts List
Reference
Description
Price
1
6BL4261021
Top cowling assembly
Loading…
↗
2
6BL4261300
Molding, air duct
Loading…
↗
3
9016705017
Screw, tapping
Loading…
↗
4
6BL4265100
Hook
Loading…
↗
5
9538005800
Nut(j44)
Loading…
↗
6
6BG4285100
Cover, clamp
Loading…
↗
7
6BG4264900
Holder, clamp band
Loading…
↗
8
6BL4265200
Hook
Loading…
↗
9
9010906047
Bolt
Loading…
↗
10
9018506M05
Nut, self-locking(6e9)
Loading…
↗
11
6CJ4261500
Seal
Loading…
↗
12
6BP4267710
Graphic, front
Loading…
↗
13
6BL4267810
Graphic, rear
Loading…
↗
14
6BP4268100
Mark, cowling
Loading…
↗
15
6BP4267510
Graphic, side 1
Loading…
↗
16
6BP4267610
Graphic, side 2
Loading…
↗
17
6AH4269710
Tuning fork mark
Loading…
↗
18
6BG4266200
Damper
Loading…
↗
19
67F1343420
Label, Caution
Loading…
↗
