L250AETO (2002)
TOP COWLING

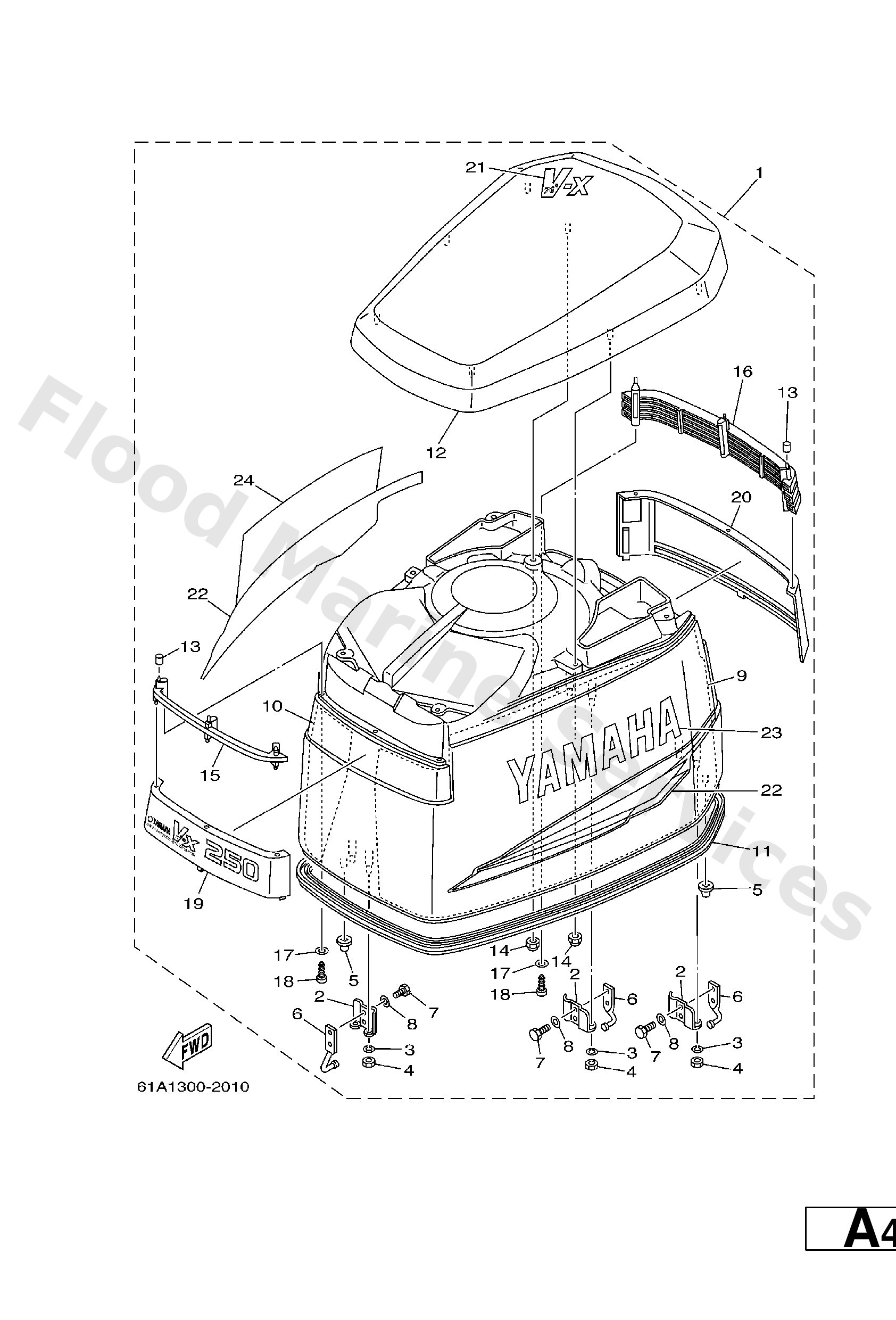

Diagram: TOP COWLING
Parts List
Reference
Description
Price
1
61A−42610−50−NA
Top cowling assembly
Loading…
↗
2
6R3−42647−00
Holder, clamp band
Loading…
↗
3
92990−06100
Washer(6a1)
Loading…
↗
4
95380−06600
Nut(661)
Loading…
↗
5
6R3−42662−00
Damper
Loading…
↗
6
6R3−42814−00
Hook, clamp
Loading…
↗
7
97095−06012
Bolt(gh1)
Loading…
↗
8
92995−06600
Washer, plain (646)
Loading…
↗
9
61A−42619−02
Damper, Form
Loading…
↗
10
61A−42627−02
Damper, Form
Loading…
↗
11
61A−42615−01
Seal
Loading…
↗
12
61A−42613−01−4D
Molding, Air Duct
Loading…
↗
13
90385−04M05
Bush(6r2)
Loading…
↗
14
90179−06M24
Nut(6j8)
Loading…
↗
15
61A−42626−00
Louver, 1
Loading…
↗
16
61A−42636−00
Louver, 2
Loading…
↗
17
92990−04600
Washer, plain (646)
Loading…
↗
18
97780−40520
Ybs83-420 screw,panh,tapping
Loading…
↗
19
61A−42686−B0
Emblem, Front
Loading…
↗
20
61A−42687−30
Emblem, Rear
Loading…
↗
21
61A−42683−A0
Mark, Cowling
Loading…
↗
22
61A−W0070−30
1−
Loading…
↗
23
61A−42681−30
Mark, Cowling
Loading…
↗
24
61A−42682−30
Mark, Cowling
Loading…
↗
