LZ200NETO (2007)
TOP COWLING

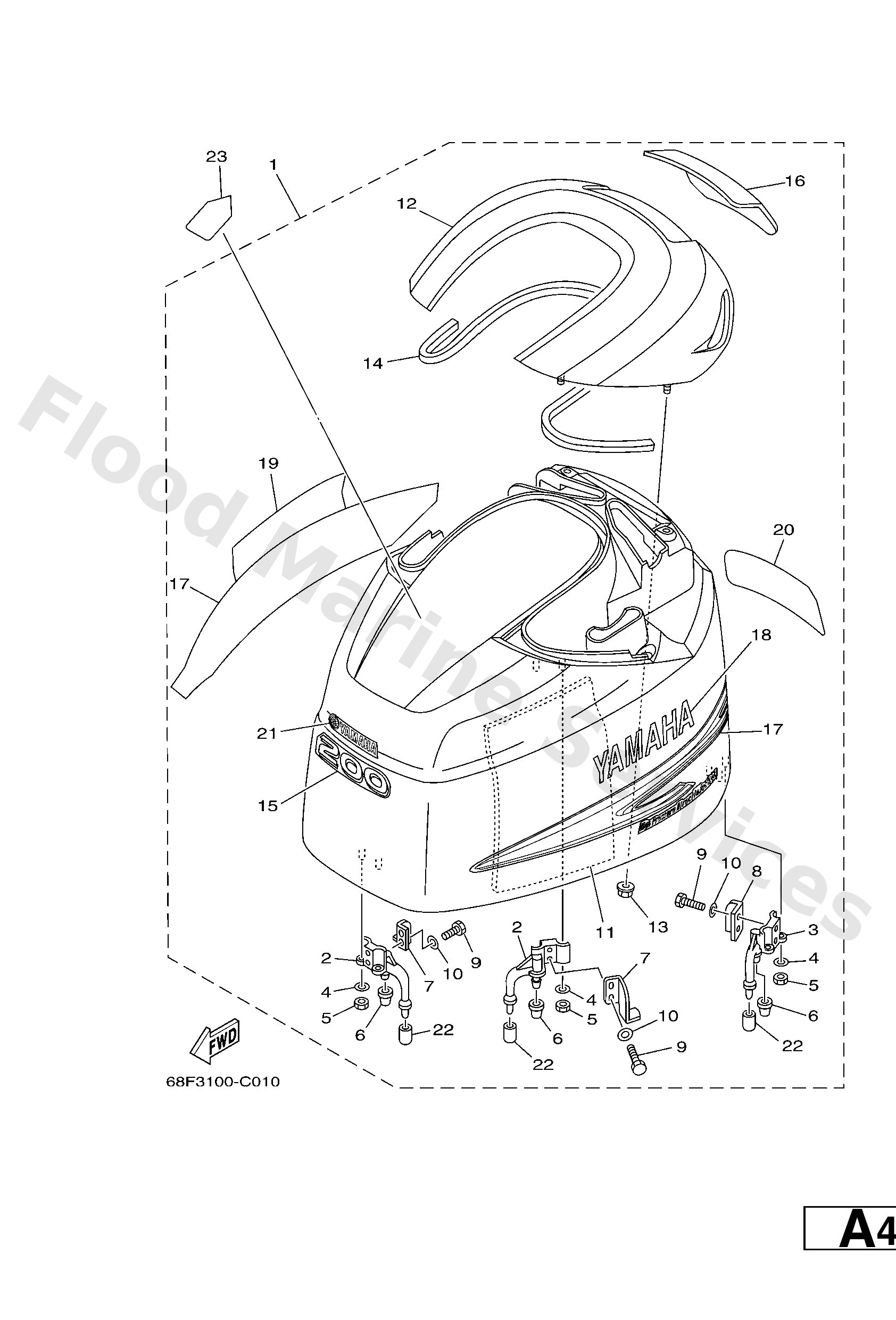

Diagram: TOP COWLING
Parts List
Reference
Description
Price
1
68L42610518D
Top cowling assembly
Loading…
↗
1
68H42610518D
-
Loading…
↗
1
68F42610518D
Top cowling assembly
Loading…
↗
2
68F426470194
Holder, clamp band
Loading…
↗
3
68F426480194
Holder, clamp band
Loading…
↗
4
9299006100
Washer(6a1)
Loading…
↗
5
9538006600
Nut(661)
Loading…
↗
6
68F4266300
Damper 2
Loading…
↗
7
60V4265101
Hook
Loading…
↗
8
60V4265200
Hook
Loading…
↗
9
9709506016
Bolt, hexagon deep recess
Loading…
↗
10
9299506600
Washer, plain (646)
Loading…
↗
11
68F4261900
Damper, form
Loading…
↗
12
68F42613008D
Molding, air duct
Loading…
↗
13
9017906M24
Nut(6j8)
Loading…
↗
14
68F4266200
Damper
Loading…
↗
15
68F4267750
Graphic, front
Loading…
↗
15
68L4267750
Graphic, front
Loading…
↗
15
68H4267750
Graphic, front
Loading…
↗
16
68F4268710
Emblem, rear
Loading…
↗
17
68FW007050
Graphic set
Loading…
↗
18
68F4268150
Mark, cowling
Loading…
↗
19
68F4268250
Mark, cowling
Loading…
↗
20
68F4267850
Graphic, rear
Loading…
↗
20
68L4267850
-
Loading…
↗
20
68H4267850
Graphic, front
Loading…
↗
21
68F4267760
Graphic, front
Loading…
↗
22
67F1344800
Cap
Loading…
↗
23
68F1343400
Label, Caution
Loading…
↗
