LZ250TRC (2004)
TOP COWLING

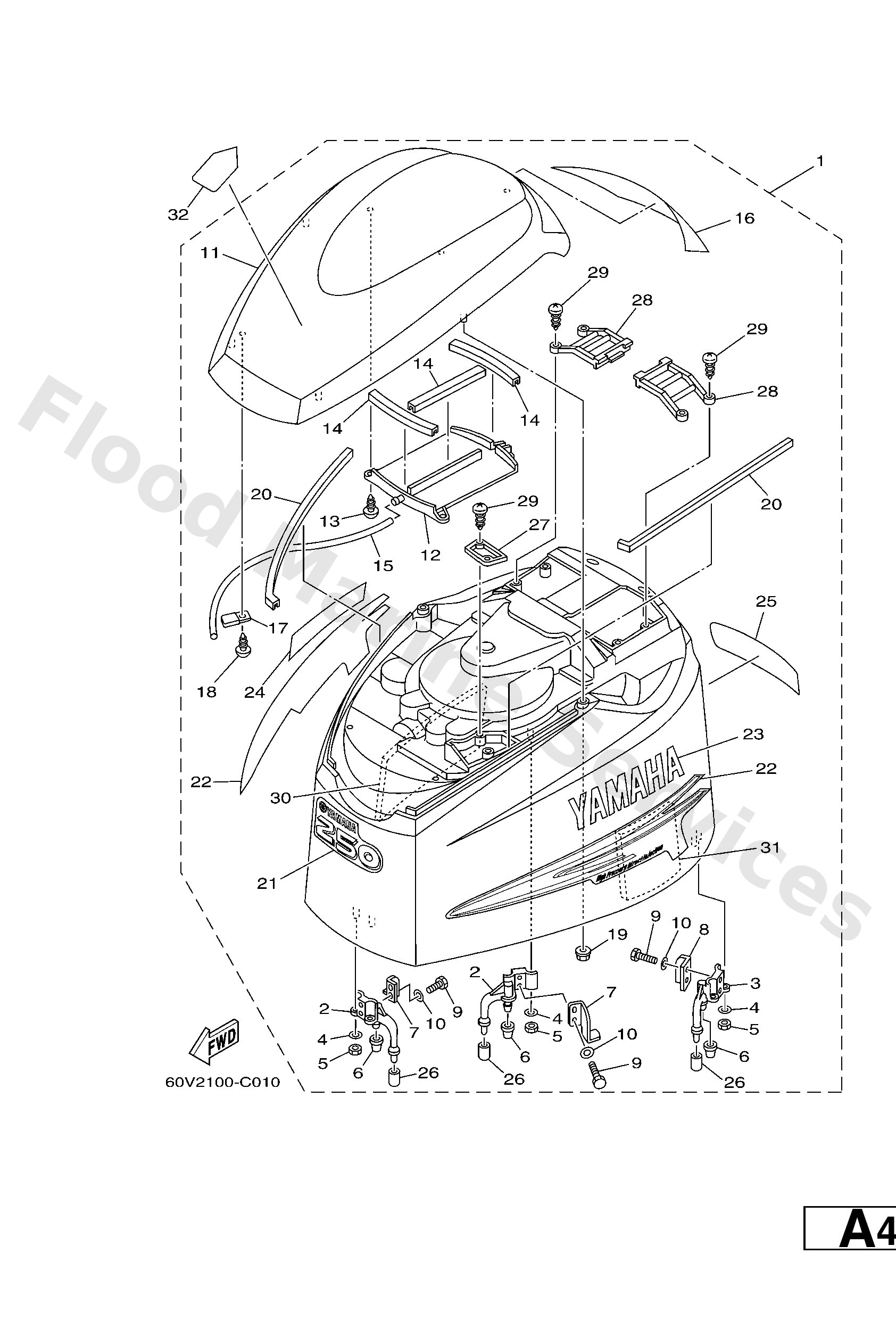

Diagram: TOP COWLING
Parts List
Reference
Description
Price
1
60V42610008D
Top Cowling assembly
Loading…
↗
2
68F426470194
Holder, clamp band
Loading…
↗
3
68F426480194
Holder, clamp band
Loading…
↗
4
9299006100
Washer(6a1)
Loading…
↗
5
9538006600
Nut(661)
Loading…
↗
6
68F4266300
Damper 2
Loading…
↗
7
60V4265101
Hook
Loading…
↗
8
60V4265200
Hook
Loading…
↗
9
9709506016
Bolt, hexagon deep recess
Loading…
↗
10
9299506600
Washer, plain (646)
Loading…
↗
11
60V42613008D
Molding, Air Duct
Loading…
↗
12
60V4262100
Mldg, Top
Loading…
↗
13
9778050616
Screw, pan head tapping (ak5)
Loading…
↗
14
60V4266400
Damper
Loading…
↗
15
9044511M33
Hose (l700)
Loading…
↗
16
60V4268700
Emblem, rear
Loading…
↗
17
9046208018
Clamp
Loading…
↗
18
9778050612
Screw, tapping(61a)
Loading…
↗
19
9017906M24
Nut(6j8)
Loading…
↗
20
60V4266200
Damper
Loading…
↗
21
60V4267700
Graphic, front
Loading…
↗
22
60VW007000
-
Loading…
↗
23
60V4268100
Mark, cowling
Loading…
↗
24
60V4268200
Mark, cowling
Loading…
↗
25
60V4267800
Graphic, front
Loading…
↗
26
67F1344800
Cap
Loading…
↗
27
60V4262600
Louver, 1
Loading…
↗
28
60V4262610
Louver, 1
Loading…
↗
29
9016005005
Screw, round tapping
Loading…
↗
30
60V4263700
Damper, Form
Loading…
↗
31
60V4263710
Damper, Form
Loading…
↗
32
68F1343400
Label, Caution
Loading…
↗
