Yamaha Outboard Parts - TOP COWLING - VF150LA (2022) | Flood Marine

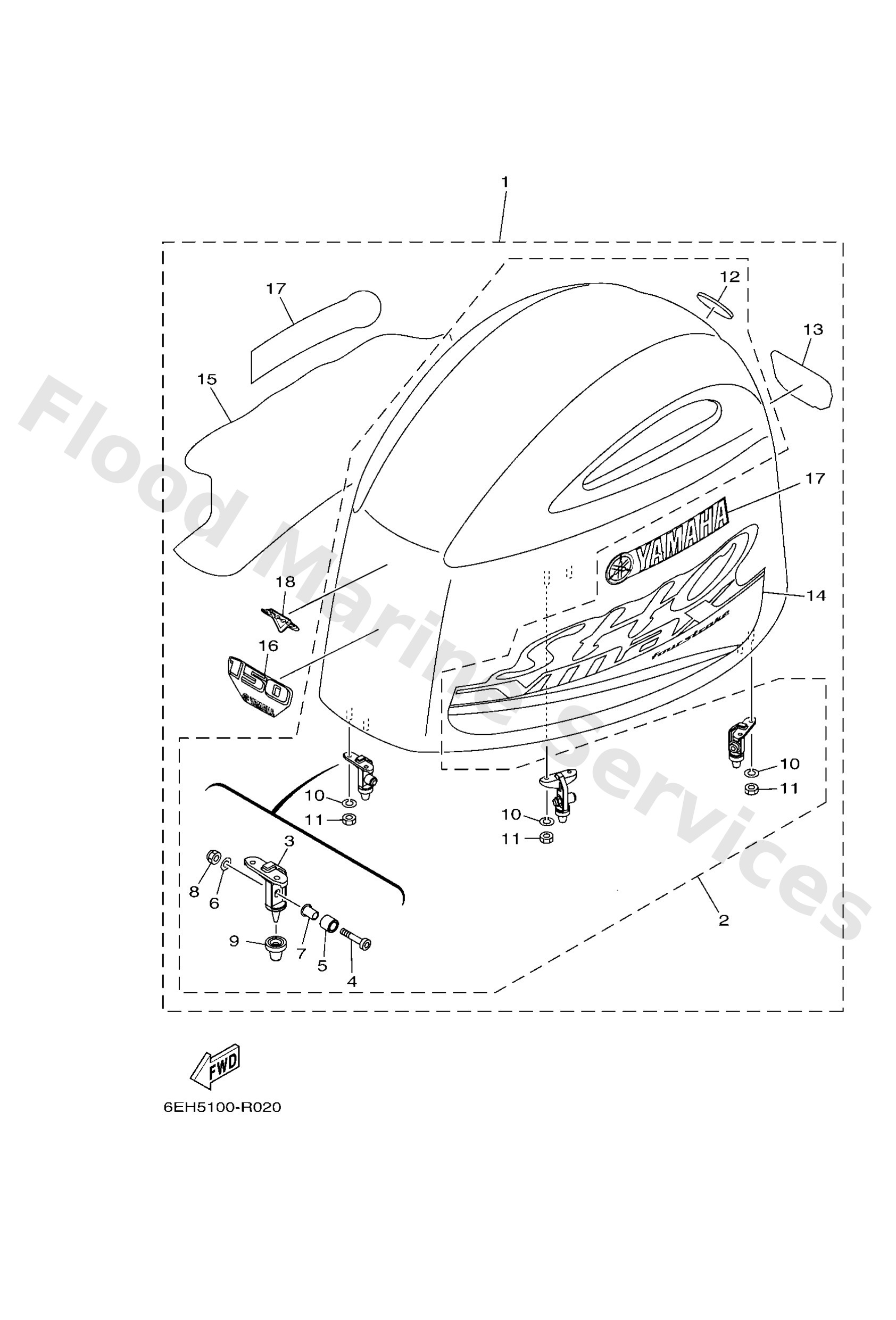

Diagram: TOP COWLING

Diagram

Parts List

Reference
Description
Price


1
6EH4261004
Top cowling assembly
Loading…

↗
2
6EH4261A03
Top cowling w/o graphics
Loading…

↗
3
6CB42647A0
Holder, clamp band
Loading…

↗
4
9011108078
Bolt,hex. socket button
Loading…

↗
5
9038710094
Collar
Loading…

↗
6
9299008600
Washer, plain (663)
Loading…

↗
7
9038708M45
Coller (6f5)
Loading…

↗
8
9578008300
Nut, nylon (6j8)
Loading…

↗
9
6AW4266301
Damper 2
Loading…

↗
10
9299006100
Washer(6a1)
Loading…

↗
11
9538006600
Nut(661)
Loading…

↗
12
6DA4269700
Tuning fork mark
Loading…

↗
13
6EH4267800
Graphic, rear
Loading…

↗
14
6CB4267510
Graphic, side 1
Loading…

↗
15
6CB4267610
Graphic, side 2
Loading…

↗
16
63P4267740
Graphic, front
Loading…

↗
17
6D64268100
Mark, cowling
Loading…

↗
18
6EH4268200
Mark, cowling
Loading…

↗
