VF250XB (2025)
TOP COWLING

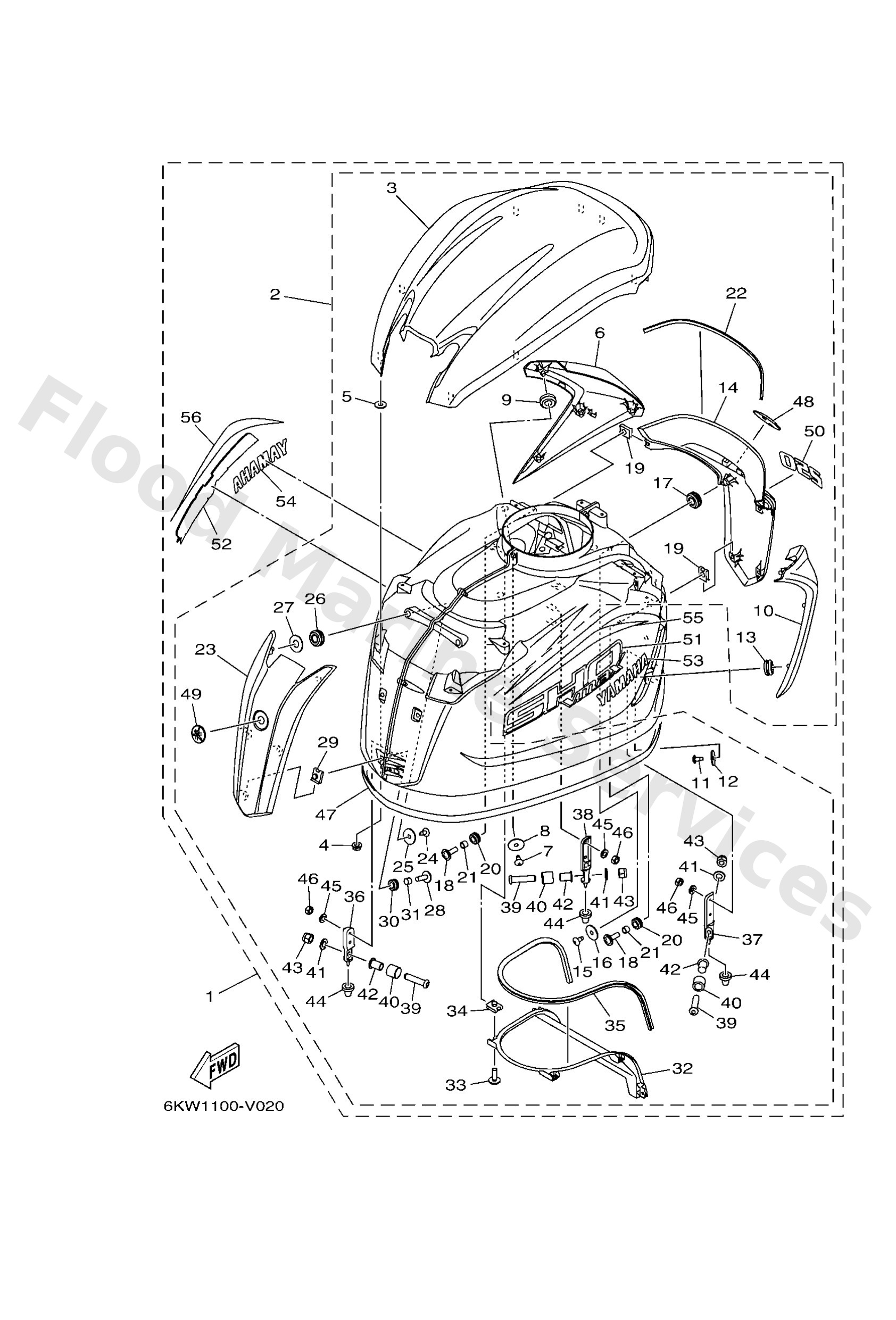

Diagram: TOP COWLING
Parts List
Reference
Description
Price
1
6KW4261001
Top cowling assembly
Loading…
↗
2
6KW4261A01
Top cowling w/o graphics
Loading…
↗
3
6KW4261300NA
Molding, air duct
Loading…
↗
4
9017906M28
Nut(63v)
Loading…
↗
5
6CB4254500
Washer, plain
Loading…
↗
6
6KW4262600NA
Louver, 1
Loading…
↗
7
9778050012
Screw, tapping(61a)
Loading…
↗
8
90201053R1
Washer, plate
Loading…
↗
9
9048016009
Grommet
Loading…
↗
10
6KW4263600NA
Louver 2
Loading…
↗
14
6KW4262500P0
Panel, rear
Loading…
↗
18
9015906053
Screw, with washer
Loading…
↗
19
90183061A8
Nut, spring
Loading…
↗
20
9048013M24
Grommet (6e9)
Loading…
↗
21
9038706M43
Coller (6e9)
Loading…
↗
22
6KW4271600
Rubber seal 1
Loading…
↗
23
6KW4261400NA
Panel, front upper
Loading…
↗
27
90201106M5
Washer, plate(3gm)
Loading…
↗
32
6KW4263501
Duct, water separator
Loading…
↗
35
6KW4261700
Damper, form
Loading…
↗
36
6KW4264700
Holder, clamp band
Loading…
↗
37
6KW4264800
Holder, clamp band
Loading…
↗
38
6KW4264900
Holder, clamp band
Loading…
↗
39
9011108078
Bolt,hex. socket button
Loading…
↗
40
9038710094
Collar
Loading…
↗
41
9299008600
Washer, plain (663)
Loading…
↗
42
9038708M45
Coller (6f5)
Loading…
↗
43
9578008300
Nut, nylon (6j8)
Loading…
↗
44
6AW4266301
Damper 2
Loading…
↗
45
9299006100
Washer(6a1)
Loading…
↗
46
9538006600
Nut(661)
Loading…
↗
47
6CB4262800
Seal
Loading…
↗
48
6KN4269700
Tuning fork mark
Loading…
↗
49
6LB4269700
Tuning fork mark
Loading…
↗
50
6KW4267800
Graphic, rear
Loading…
↗
51
6KW4267500
Graphic, side 1
Loading…
↗
52
6KW4267600
Graphic, side 2
Loading…
↗
53
6KW4268100
Mark, cowling
Loading…
↗
54
6KW4268200
Mark, cowling
Loading…
↗
55
6KW4268300
Mark, cowling
Loading…
↗
56
6KW4268400
-
Loading…
↗
