VF90B (2025)
TOP COWLING

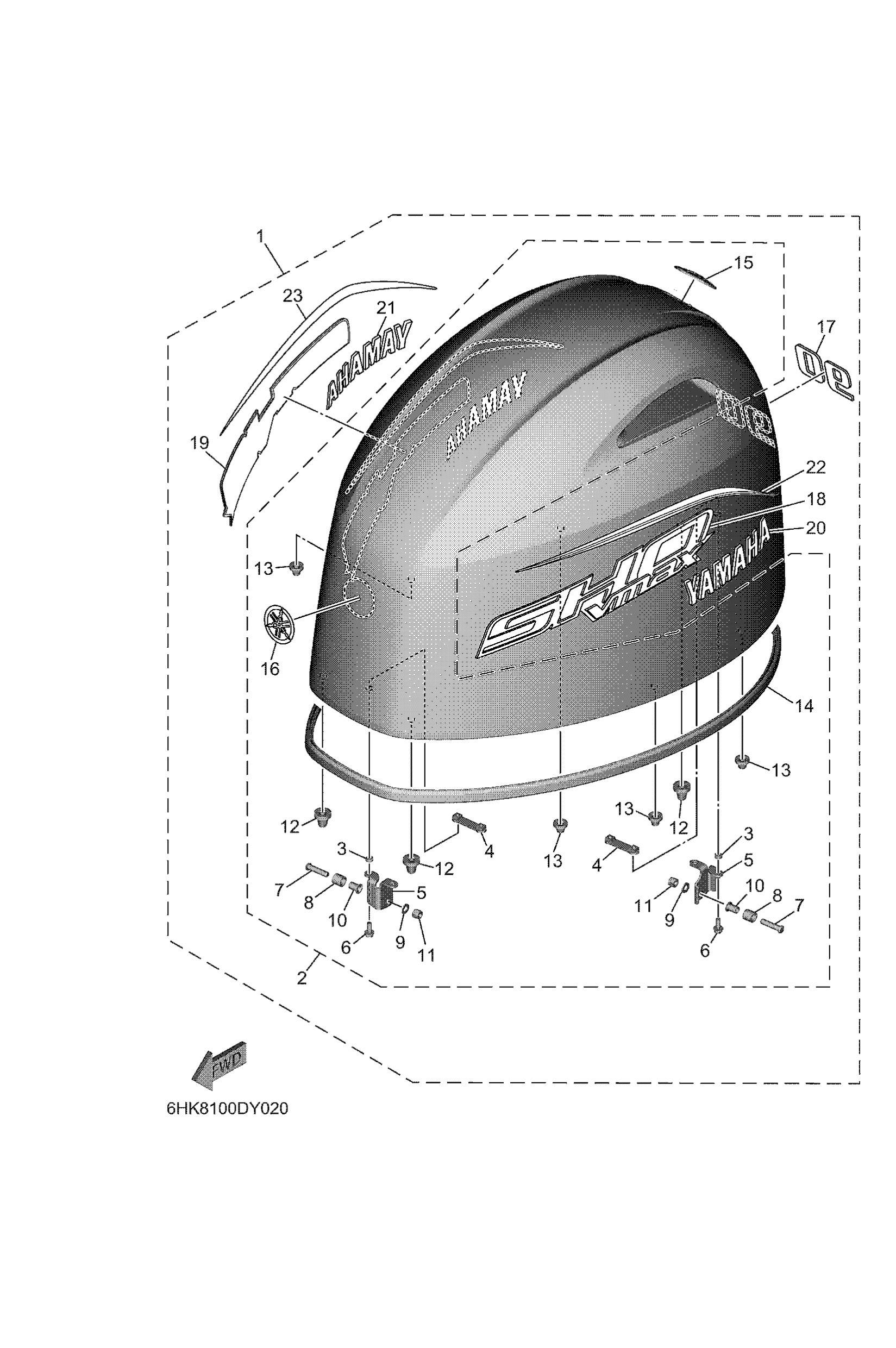

Diagram: TOP COWLING
Parts List
Reference
Description
Price
1
6HK4261010NA
Top cowling assembly
Loading…
↗
2
6HK4261A10NA
Top cowling w/o graphics
Loading…
↗
3
9038707046
Collar
Loading…
↗
4
6EK4264600
Plate, clamp
Loading…
↗
5
6FP4264700
Holder, clamp band
Loading…
↗
6
9010506039
Bolt, flange
Loading…
↗
7
9011108078
Bolt,hex. socket button
Loading…
↗
8
9038710094
Collar
Loading…
↗
9
9299008600
Washer, plain (663)
Loading…
↗
10
9038708M45
Coller (6f5)
Loading…
↗
11
9578008300
Nut, nylon (6j8)
Loading…
↗
12
68F4266301
Damper 2
Loading…
↗
13
6634266201
Damper
Loading…
↗
14
6FP4261502
Seal
Loading…
↗
15
6DA4269700
Tuning fork mark
Loading…
↗
16
6EH4269700
Tuning fork mark
Loading…
↗
17
6HK4267810
Graphic, rear
Loading…
↗
18
6HK4267510
Graphic, side 1
Loading…
↗
19
6HK4267610
Graphic, side 2
Loading…
↗
20
6HK2153A00
Emblem, yamaha
Loading…
↗
21
6HK2153B00
Emblem, yamaha
Loading…
↗
22
6FN4268300
Mark, cowling
Loading…
↗
23
6FN4268400
Mark, cowling
Loading…
↗
