Z200PETO (2004)
TOP COWLING

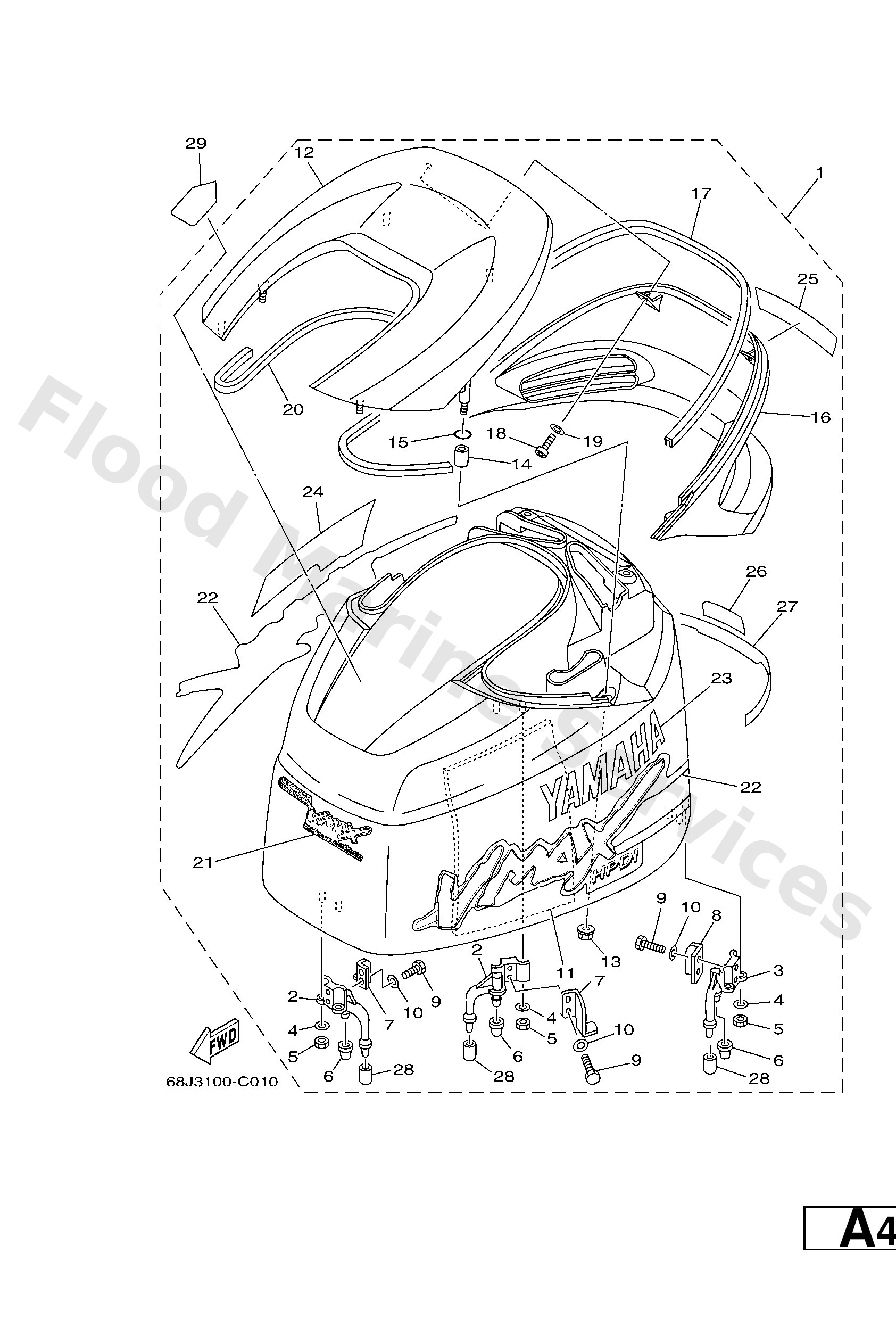

Diagram: TOP COWLING
Parts List
Reference
Description
Price
1
60F42610N1NA
Top cowling assembly
Loading…
↗
1
68J42610N1NA
Top cowling assembly
Loading…
↗
2
68F426470194
Holder, clamp band
Loading…
↗
3
68F426480194
Holder, clamp band
Loading…
↗
4
9299006100
Washer(6a1)
Loading…
↗
5
9538006600
Nut(661)
Loading…
↗
6
68F4266300
Damper 2
Loading…
↗
7
60V4265101
Hook
Loading…
↗
8
60V4265200
Hook
Loading…
↗
9
9709506016
Bolt, hexagon deep recess
Loading…
↗
10
9299506600
Washer, plain (646)
Loading…
↗
11
68F4261900
Damper, form
Loading…
↗
12
68J42613003P
Molding, air duct
Loading…
↗
13
9017906M24
Nut(6j8)
Loading…
↗
14
9038706011
Collar
Loading…
↗
15
9321006270
O-ring
Loading…
↗
16
68J42636003P
Louver 2
Loading…
↗
17
68J4266200
Damper
Loading…
↗
18
9778050616
Screw, pan head tapping (ak5)
Loading…
↗
19
9299005200
Ybs66-5 washer, plain
Loading…
↗
20
68F4266200
Damper
Loading…
↗
21
68J42677N0
Graphic, front
Loading…
↗
22
68JW0070N0
Graphic set
Loading…
↗
23
68J42681N0
Mark, cowling
Loading…
↗
24
68J42682N0
Mark, cowling
Loading…
↗
25
68J42683N0
Mark, cowling
Loading…
↗
26
68J42678N0
Graphic, rear
Loading…
↗
26
60F42678N0
Graphic, front
Loading…
↗
27
68J4267AN0
Graphic, rear 2
Loading…
↗
28
67F1344800
Cap
Loading…
↗
29
68F1343400
Label, Caution
Loading…
↗
