70BETO (2025)
TOP COWLING 1

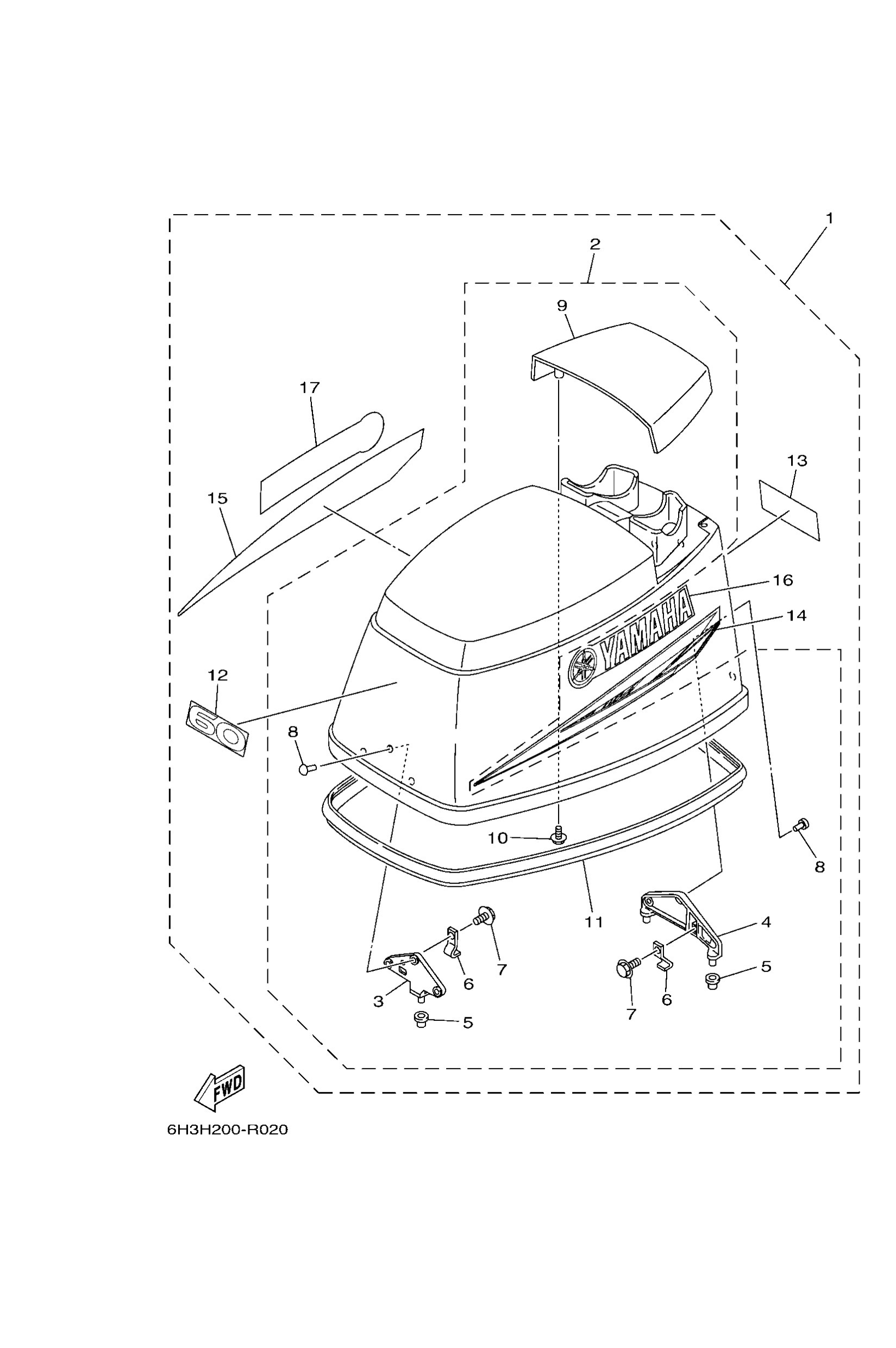

Diagram: TOP COWLING 1
Parts List
Reference
Description
Price
1
6H24261013
60F
Top Cowling assembly
Loading…
↗
2
6H34261A03
Top Cowling W/O Graphics
Loading…
↗
3
6H34264700
Holder, clamp band
Loading…
↗
4
6H34264900
Holder, clamp band
Loading…
↗
5
6634266201
Damper
Loading…
↗
6
6H34265200
Hook 2
Loading…
↗
7
97E9506616
Bolt, hexagon w/w deep recess
Loading…
↗
8
9026606009
Rivet (697)
Loading…
↗
9
6H342613018D
Molding, air duct
Loading…
↗
10
97E9506516
Bolt, hexagon w/w deep recess
Loading…
↗
11
6H34261501
Seal
Loading…
↗
12
6H24267811
Graphic, rear
Loading…
↗
14
6884267551
Graphic, side 1
Loading…
↗
15
6884267651
Graphic, side 2
Loading…
↗
16
6884268171
Mark, cowling
Loading…
↗
