E115AET (2003)
TOP COWLING 1

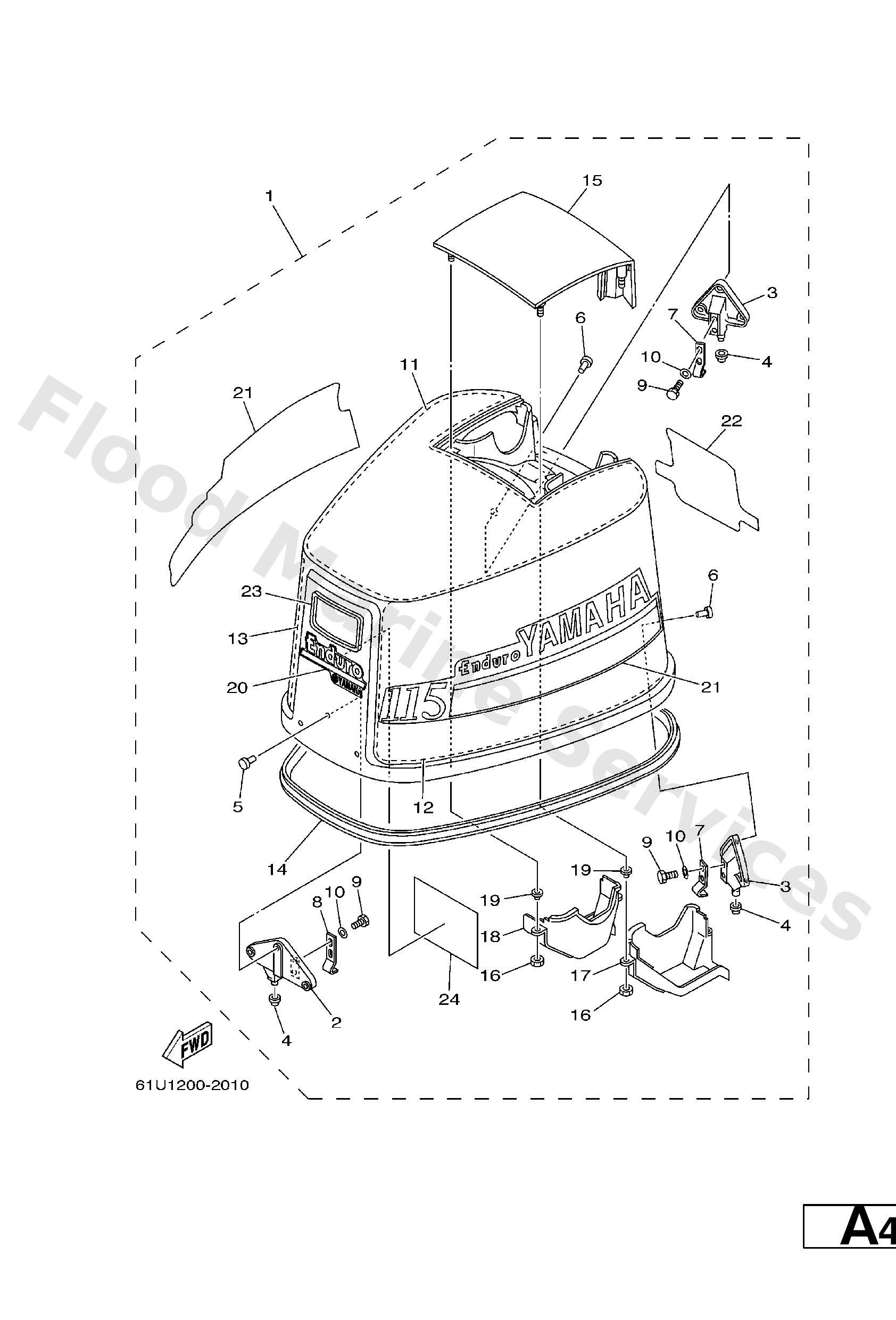

Diagram: TOP COWLING 1
Parts List
Reference
Description
Price
1
61U−42610−L0−4D
Top Cowling assembly
Loading…
↗
2
6E5−42647−00−94
Holder, clamp band
Loading…
↗
3
6E5−42649−01−94
Holder, clamp band
Loading…
↗
4
663−42662−00
Damper
Loading…
↗
5
90266−06009
Rivet (697)
Loading…
↗
6
90266−06M02
Rivet (697)
Loading…
↗
7
6E5−42652−00
Hook 2
Loading…
↗
8
688−42652−00
Hook 2
Loading…
↗
9
97095−06016
Bolt, hexagon deep recess
Loading…
↗
10
92995−06600
Washer, plain (646)
Loading…
↗
11
6E5−42617−00
Damper 1
Loading…
↗
12
61U−42619−10
Damper, form
Loading…
↗
13
61U−42627−10
Damper, form
Loading…
↗
14
6E5−42615−00
Seal
Loading…
↗
15
6G5−42613−00−4D
Molding, air duct
Loading…
↗
16
90179−06M24
Nut(6j8)
Loading…
↗
17
61U−42626−00
Louver, 1
Loading…
↗
18
61U−42636−00
Louver, 2
Loading…
↗
19
90387−06M35
Collar(61u)
Loading…
↗
20
61U−42677−J0
Graphic, front
Loading…
↗
21
61U−W0070−H0
1−
Loading…
↗
22
61U−42678−H0
Graphic, rear
Loading…
↗
23
697−15761−01
Seal 1
Loading…
↗
24
677−13437−08
1−
Loading…
↗
