E48CMH (2003)
TOP COWLING 1

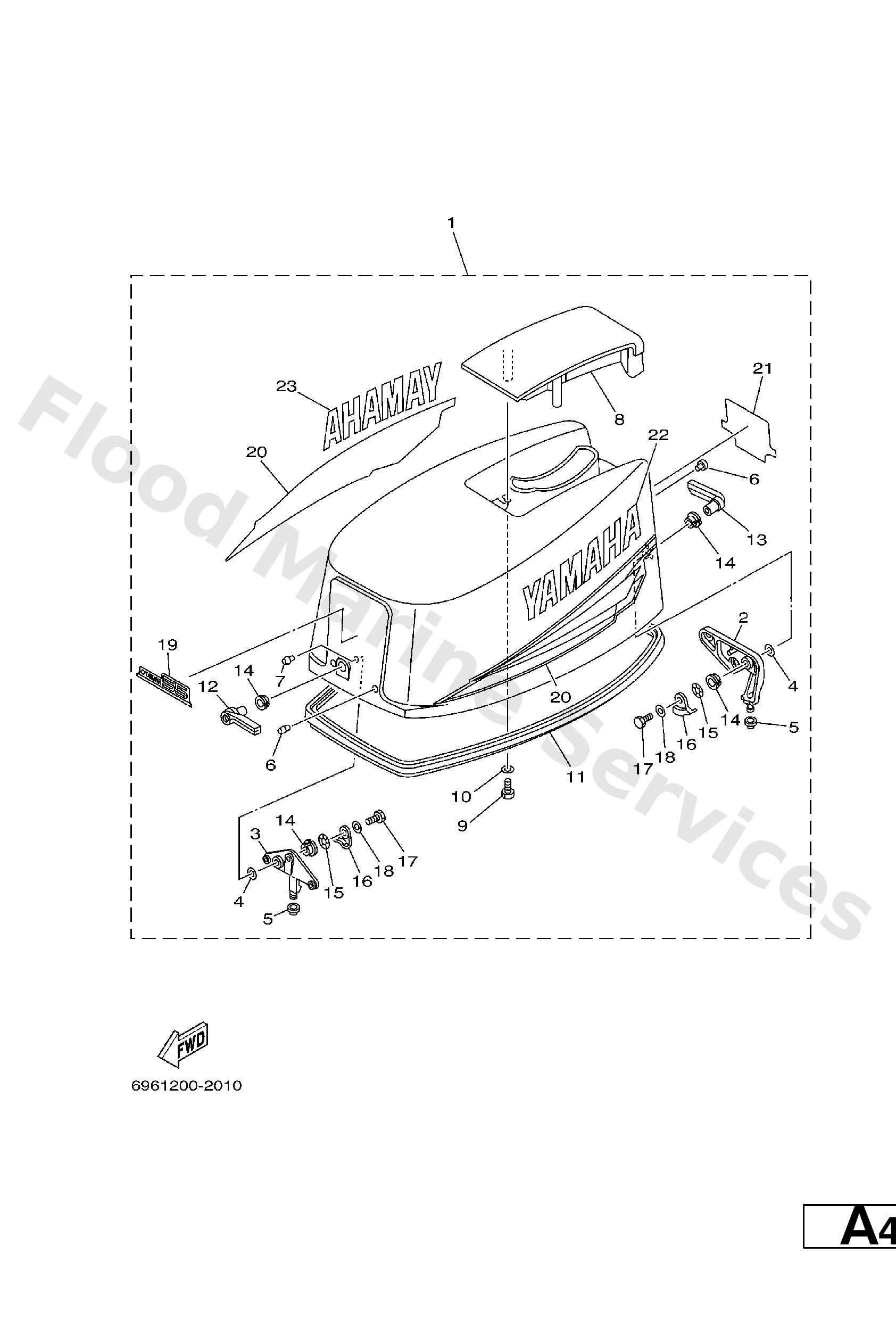

Diagram: TOP COWLING 1
Parts List
Reference
Description
Price
1
697−42610−40−4D
Top cowling assembly
Loading…
↗
2
697−42647−00−94
Holder, clamp band
Loading…
↗
3
697−42649−00−94
Holder, clamp band
Loading…
↗
4
90202−19M10
Washer, plate (697)
Loading…
↗
5
663−42662−00
Damper
Loading…
↗
6
90266−06009
Rivet (697)
Loading…
↗
7
90266−06M02
Rivet (697)
Loading…
↗
8
697−42613−01−4D
Molding, air duct
Loading…
↗
9
97095−06016
Bolt, hexagon deep recess
Loading…
↗
10
92995−06600
Washer, plain (646)
Loading…
↗
11
663−42615−02
Seal
Loading…
↗
12
697−42815−11−98
Lever, clamp 1
Loading…
↗
13
697−42817−11−98
Lever, clamp 3
Loading…
↗
14
90386−13M38
Bushing (697)
Loading…
↗
15
90206−13019
Washer, wave 6264283200
Loading…
↗
16
663−42816−02
Lever, clamp 2
Loading…
↗
17
97095−06012
Bolt(gh1)
Loading…
↗
18
90201−06068
Washer,plate (6k8)
Loading…
↗
19
697−42677−40
Graphic, front
Loading…
↗
20
697−W0070−31
1−
Loading…
↗
21
697−42678−30
Graphic, rear
Loading…
↗
22
697−42681−31
Mark, Cowling
Loading…
↗
23
697−42682−31
Mark, Cowling
Loading…
↗
