60FET (2025)
TOP COWLING 2

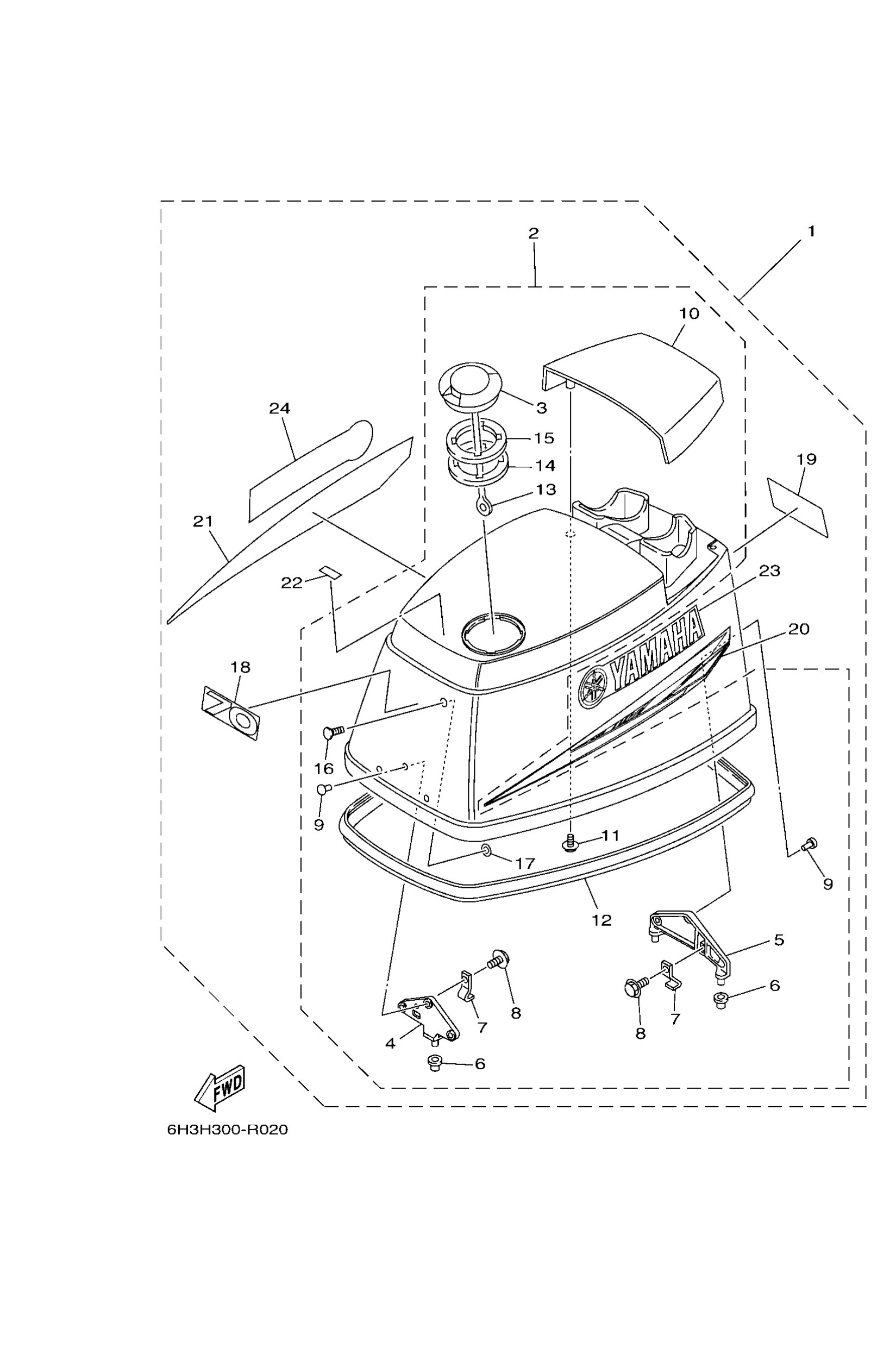

Diagram: TOP COWLING 2
Parts List
Reference
Description
Price
1
6H24261073
60F
Top Cowling assembly
Loading…
↗
1
6H34261003
70B
Top cowling assembly
Loading…
↗
2
6H34261A13
Top cowling w/o graphics
Loading…
↗
3
63D2177H00
Disk cap 2
Loading…
↗
4
6H34264700
Holder, clamp band
Loading…
↗
5
6H34264900
Holder, clamp band
Loading…
↗
6
6634266201
Damper
Loading…
↗
7
6H34265200
Hook 2
Loading…
↗
8
97E9506616
Bolt, hexagon w/w deep recess
Loading…
↗
9
9026606009
Rivet (697)
Loading…
↗
10
6H342613018D
Molding, air duct
Loading…
↗
11
97E9506516
Bolt, hexagon w/w deep recess
Loading…
↗
12
6H34261501
Seal
Loading…
↗
13
6H14269400
Band
Loading…
↗
14
6H32173200
Seal 1
Loading…
↗
15
6H32173501
Seal 2
Loading…
↗
16
9033805M03
Plug (6h1)
Loading…
↗
17
9018305M06
Nut, spring(6h4)
Loading…
↗
18
6H34267811
70B
Graphic, rear
Loading…
↗
18
6H24267811
60F
Graphic, rear
Loading…
↗
20
6884267551
Graphic, side 1
Loading…
↗
21
6884267651
Graphic, side 2
Loading…
↗
22
6H31343600
70B
Mark
Loading…
↗
22
6H31343640
60F
Mark
Loading…
↗
23
6884268171
Mark, cowling
Loading…
↗
