Yamaha Outboard Parts - Top Cowling - 140AETOL (1985) | Flood Marine

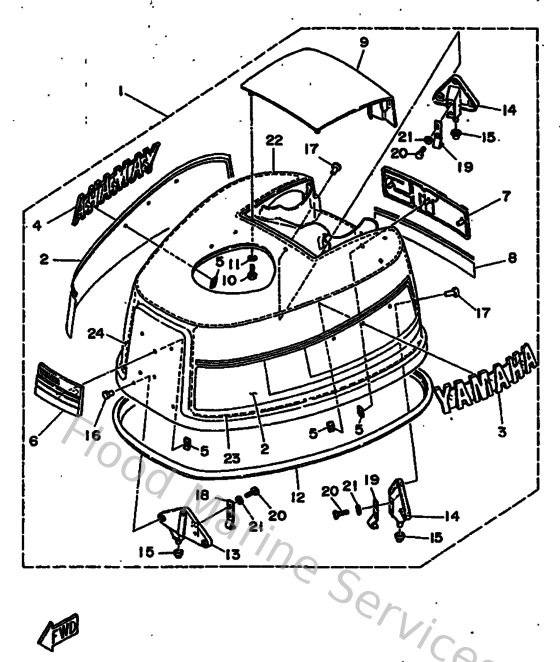

Diagram: Top Cowling

Diagram

Parts List

Reference
Description
Price


5
9018305M0100
Nut, spring (6a0)
Loading…

↗
6
6E5426860100
Emblem, Front
Loading…

↗
7
6E5426870100
Emblem, Rear
Loading…

↗
8
6E5426784000
Graphic, Rear
Loading…

↗
10
973950601600
Bolt, hexagon deep recess
Loading…

↗
11
929900660000
Washer, plain (646)
Loading…

↗
12
6E5426150000
Seal
Loading…

↗
13
6E5426470094
Holder, clamp band
Loading…

↗
14
6E5426490194
Holder, clamp band
Loading…

↗
15
663426620000
Damper
Loading…

↗
16
902660600900
Rivet (697)
Loading…

↗
17
9026606M0200
Rivet (697)
Loading…

↗
18
688426520000
Hook 2
Loading…

↗
19
6E5426520000
Hook 2
Loading…

↗
20
970950601600
Bolt, hexagon deep recess
Loading…

↗
22
6E5426170000
Damper 1
Loading…

↗
23
6E5426190000
Damper, Form
Loading…

↗
24
6E5426270000
Damper, Form
Loading…

↗
